Home >> Lexus >> 1997 >> SC 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> Shift Solenoids "A" and "B" (No. 1 and No. 2)

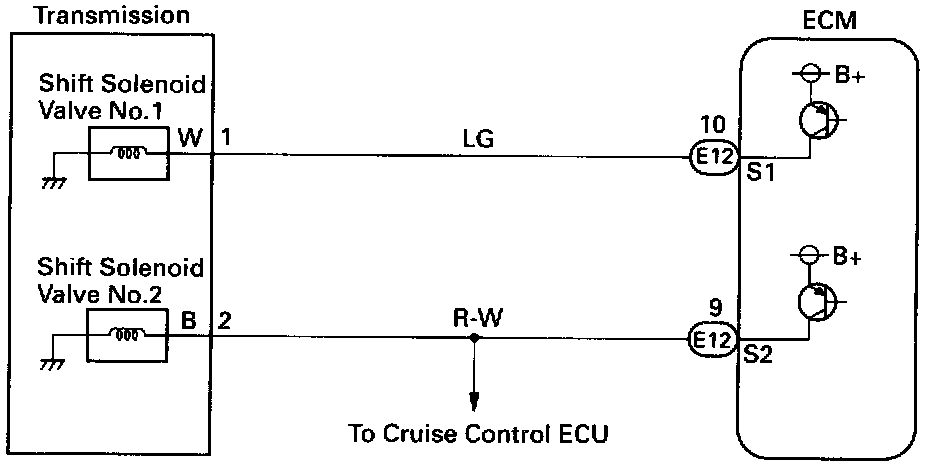

Shift Solenoids "A" and "B" (No. 1 and No. 2)
