Home
>>
Lexus
>>
1997
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting System
Starting System

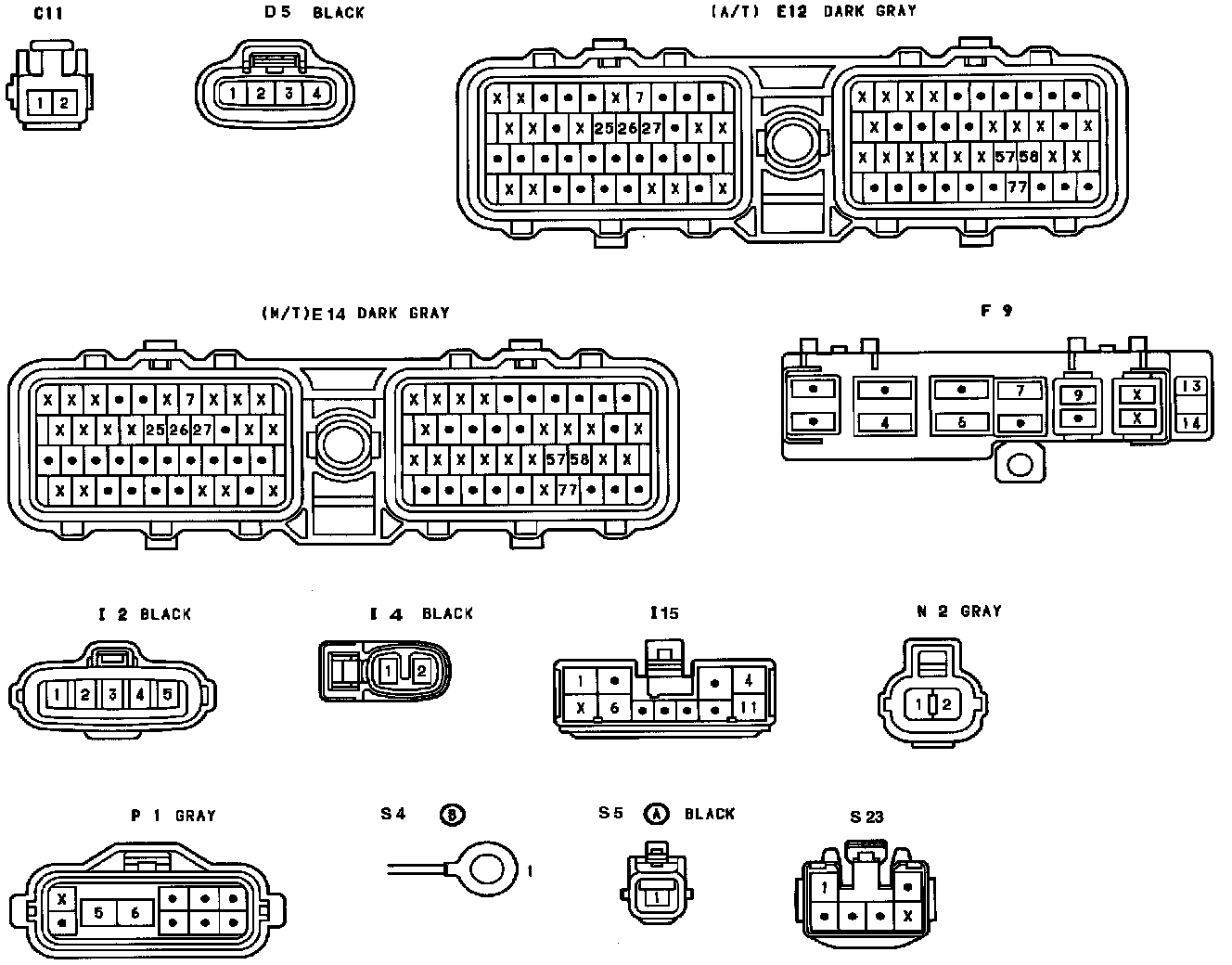

Starting And Ignition-Connectors:
