Displaying & Reading Trouble Codes

(c) OUTPUT OF DTC USING DIAGNOSIS CHECK WIRE
(1) Turn the ignition switch ON.
(2) Using SST, connect terminals Tc and E1 of DLC2.
SST 09843-18020
(3) Read the DTC on the CRUISE MAIN indicator light.

HINT: If the DTC is not output, inspect the diagnosis circuit.

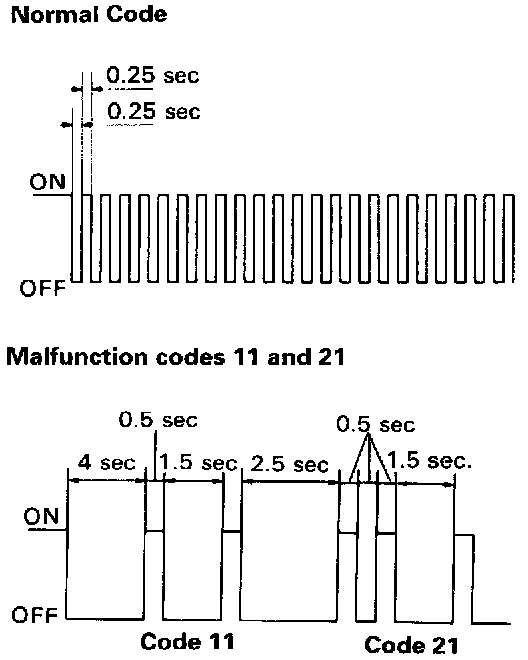

As an example, the blinking patterns for codes; normal, 11 and 21 are shown in the illustration.
