Measuring ECU Terminal Values Using LEXUS Break-Out Box

ECU TERMINAL VALUES MEASUREMENT BY USING LEXUS BREAK-OUT-BOX AND LEXUS HAND-HELD TESTER

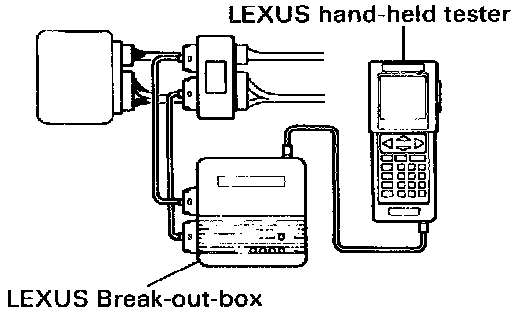

(a) Hook up the LEXUS break-out-box and LEXUS hand-held tester to the vehicle.
(b) Read the ECU input/output values by following the prompts on the tester screen.
(c) Please refer to the LEXUS hand-held tester has a "Snapshot" function. This records the measured data and is effective in the diagnosis of intermittent problems.
