Diagnostic Strategies

(a) SET INSPECTION

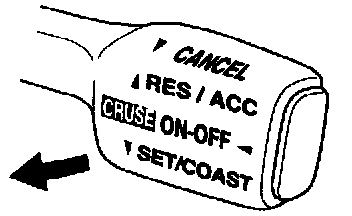

(1) Push the main switch ON.
(2) Drive at a desired speed (40 km/h (25 mph) or higher).

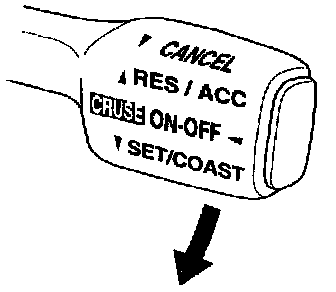

(3) Press the control switch to the SET/COAST.
(4) After releasing the switch, check that the vehicle cruises at the desired speed.





(b) ACCEL INSPECTION
(1) Push the main switch ON.
(2) Drive at a desired speed (40 km/h (25 mph) or higher).

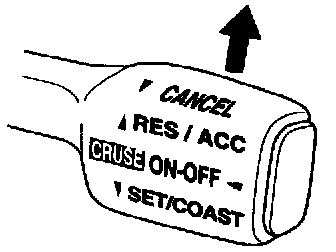

(3) Check that the vehicle speed is increased while the control switch turned to RES/ACC and that the vehicle cruises at the set speed when the switch is released.

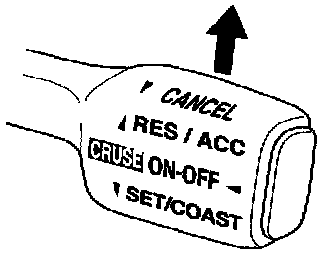

(4) Momentarily press the control switch upward in the RES/ACC and then immediately release it. Check that the vehicle speed increases by about 1.5 km/h (Tap-up function).





(c) COAST INSPECTION
(1) Push the main switch ON.
(2) Drive at a desired speed (40 km/h (25 mph) or higher).
(3) Check that the vehicle speed is decreased while the control switch is turned to SET/COAST and the vehicle cruise at the set speed when the switch is released.
(4) Momentarily press the control switch is turned to SET/COAST and then immediately release it. Check that the vehicle speed decreases by about 1.5 km/h (Tap-down function).





(d) CANCEL INSPECTION
(1) Push the main switch ON.
(2) Drive at a desired speed (40 km/h (25 mph) or higher).

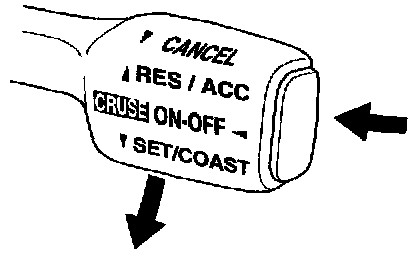

(3) When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
^ Depress the brake pedal
^ Depress the clutch pedal (M/T)
^ Shift to except D position (A/T)
^ Push the main switch OFF
^ Pull the cruise control switch to CANCEL





(e) RESUME INSPECTION
(1) Push the main switch ON.
(2) Drive at a desired speed (40 km/h (25 mph) or higher).
(3) When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
^ Depress the brake pedal
^ Depress the clutch pedal (M/T)
^ Shift to except D position (A/T)
^ Pull the cruise control switch to CANCEL
(4) After the control switch is turned to RES/ACC at the driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed prior to the cancellation.
