Park/Neutral Position Switch Circuit

CIRCUIT DESCRIPTION
When the shift position is put in except D position, a signal is sent from the park/neutral position switch to the ECU. When this signal is input during cruise control driving, the ECU cancels the cruise control.

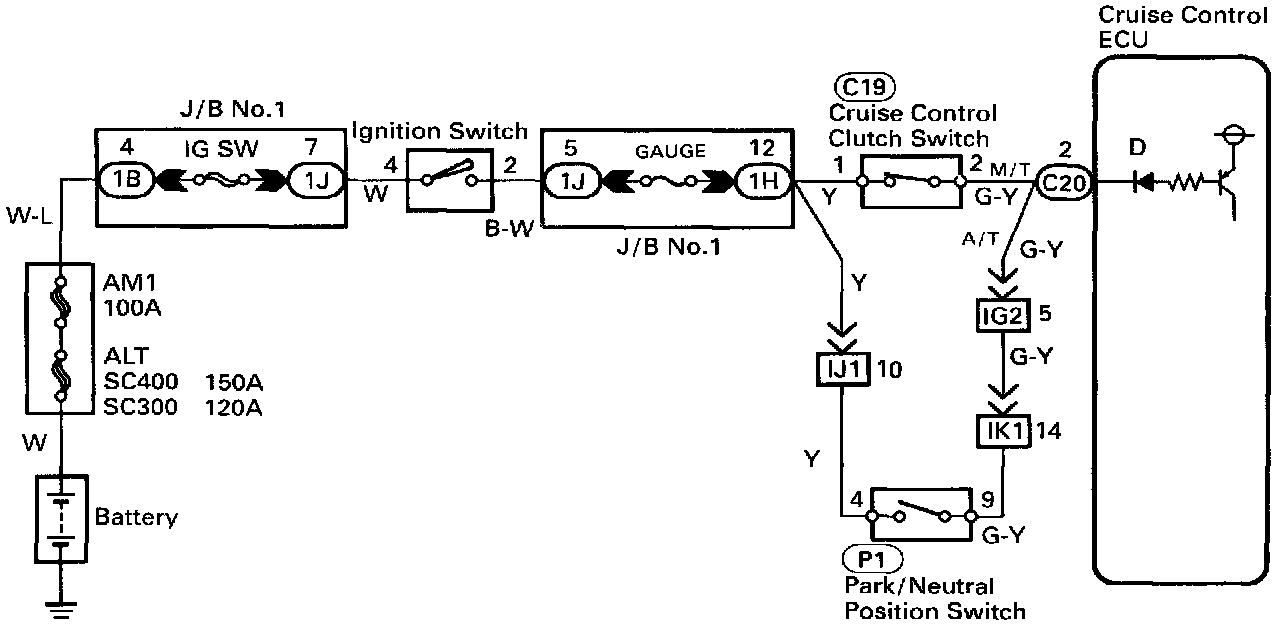

WIRING DIAGRAM

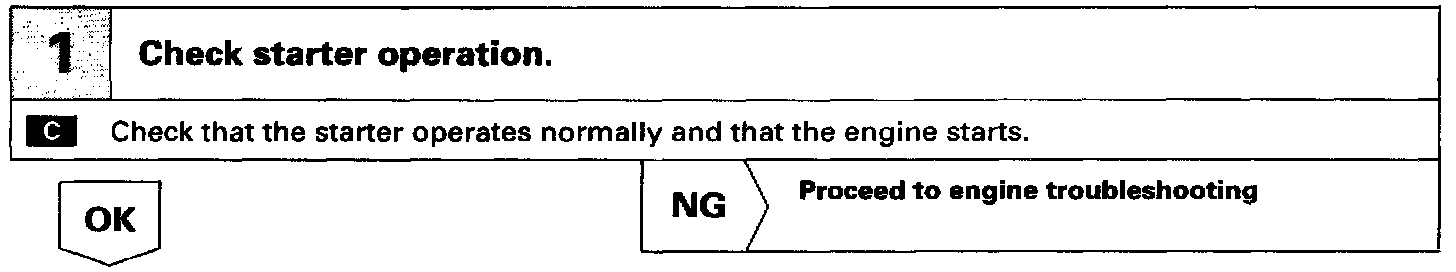

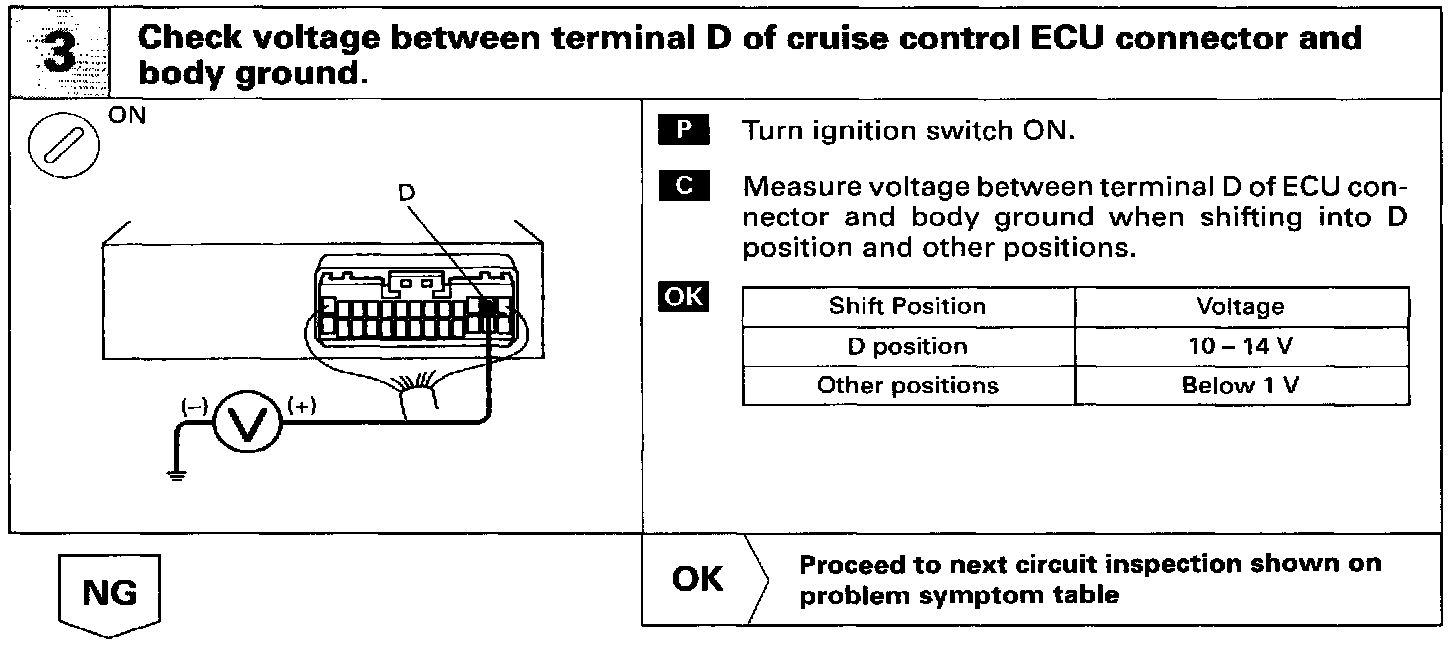

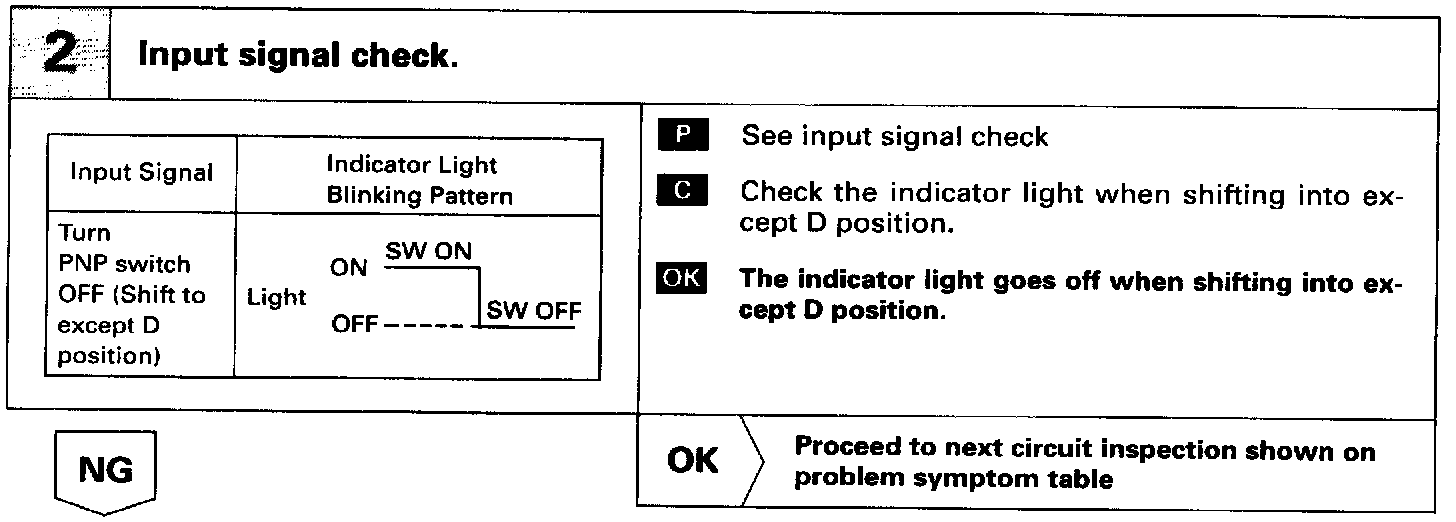

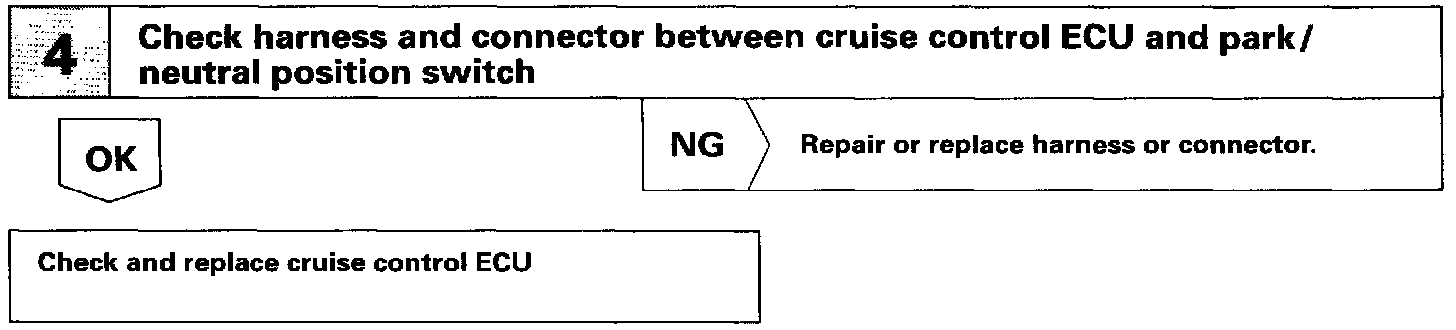

INSPECTION PROCEDURE
