Lexus
>>
1997
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnosis Circuit
Diagnosis Circuit
CIRCUIT DESCRIPTION
This circuit sends a signal to the ECU that DTC output is required.

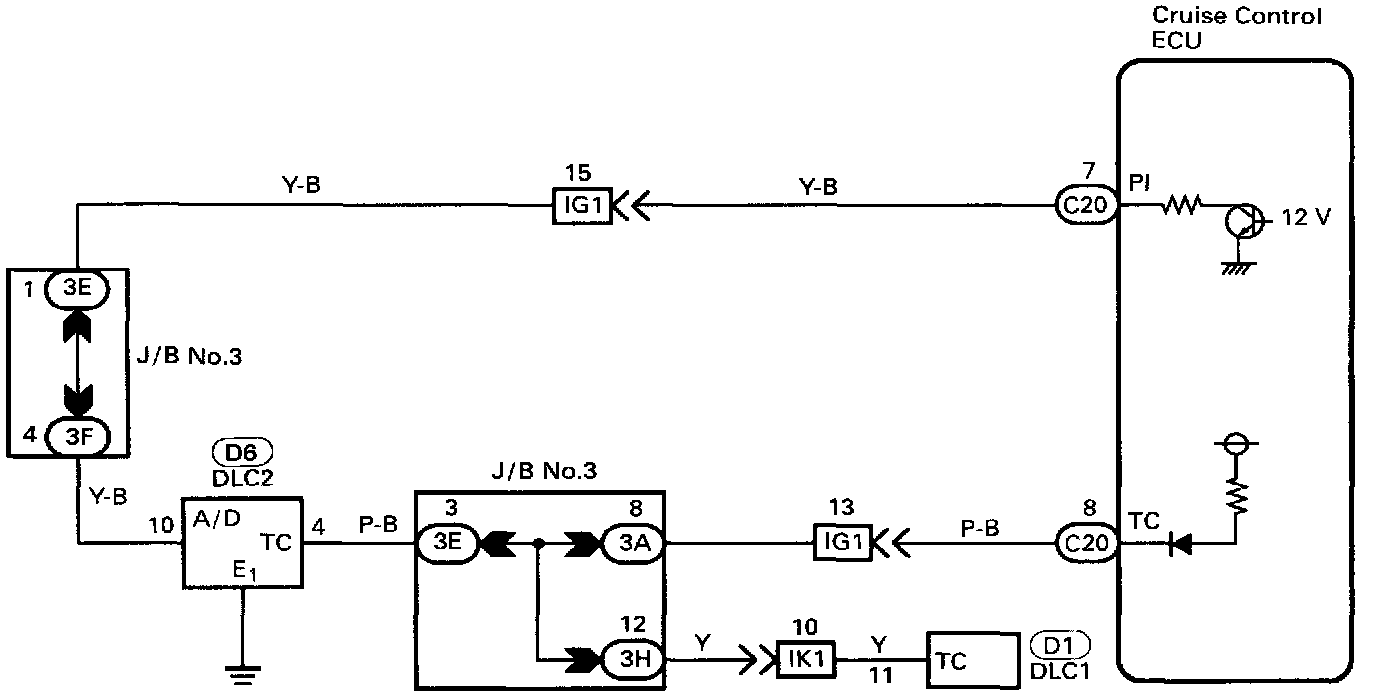

WIRING DIAGRAM

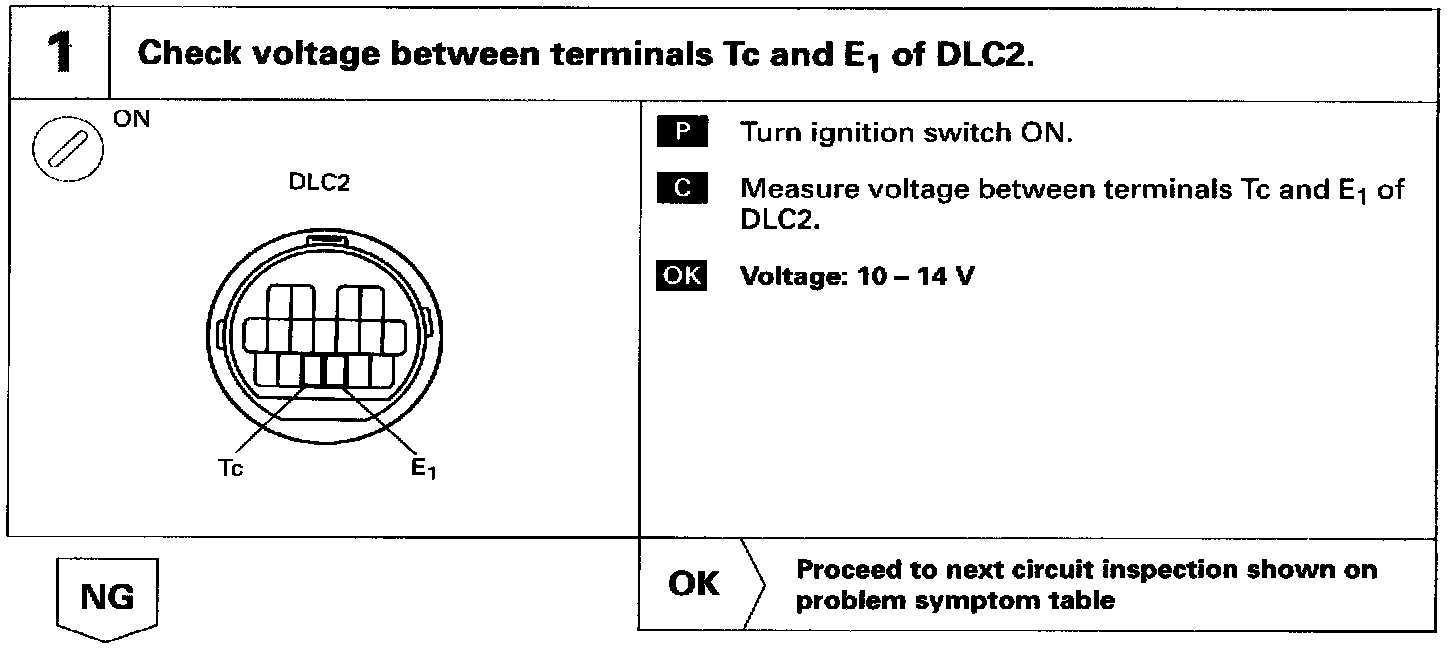

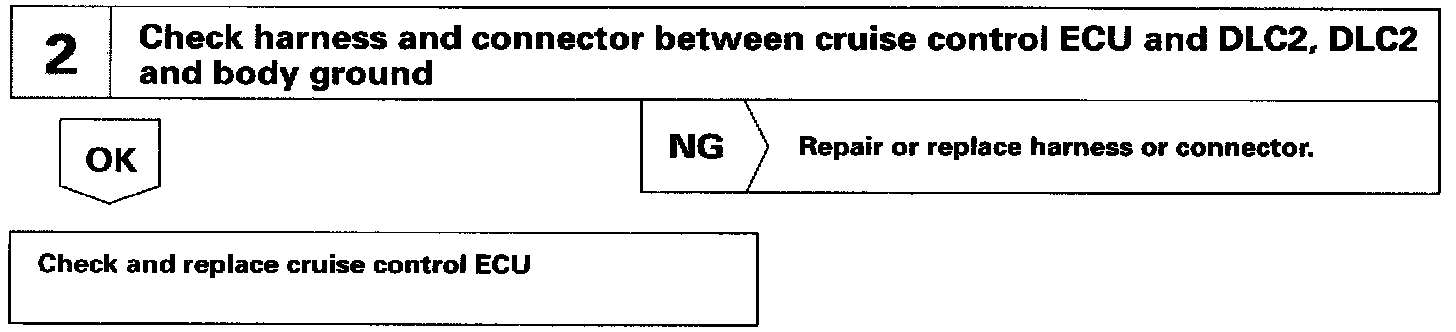

INSPECTION PROCEDURE
