Clearing Trouble Codes

1. Using SST, connect terminals Tc and E1 of DLC2 or DLC1 and remove the short pin from DLC1.
SST 09843- 18020
2. IG switch ON.
3. Clear the DTC stored in ECU by depressing the Brake Pedal 8 or more times within 3 seconds.

NOTE: In this case, TRAC DTC are cleared.

4. Check that the warning light shows the normal code.
5. Remove the SST from the terminals of DLC2 or DLC1.
SST 09843-18020

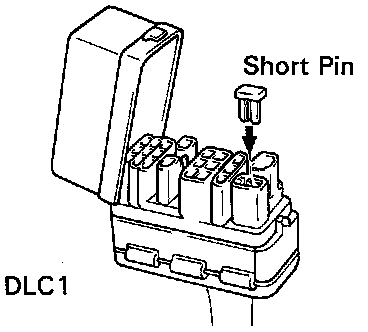

Connecting Short Pin To DLC1:

6. Connect the short pin to DLC1.

NOTE: Disconnecting the battery cable during repairs will not erase the DTC in the ECU.
