Tc Terminal Circuit

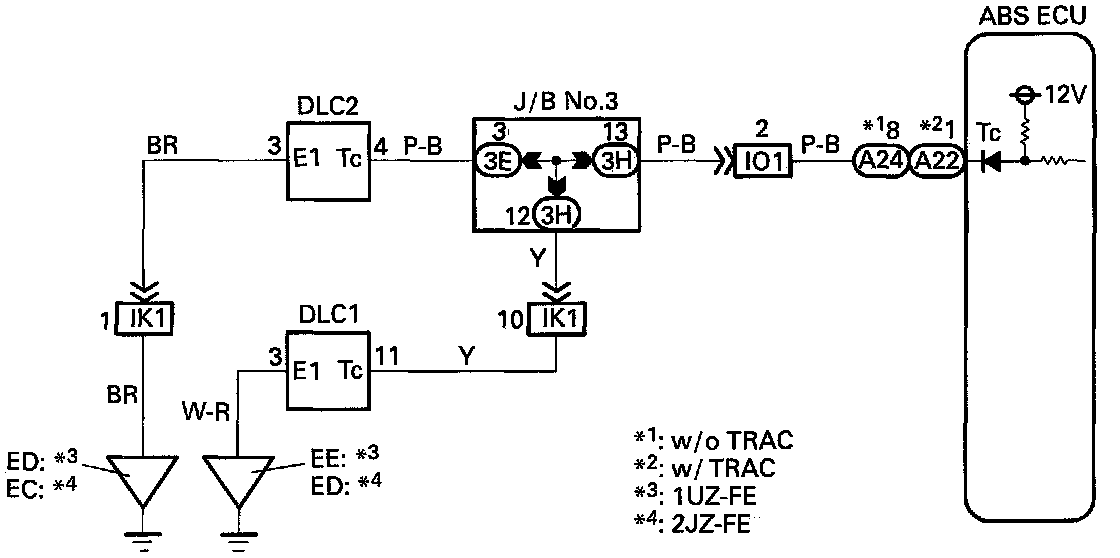

TC Terminal Circuit, Wiring Diagram:

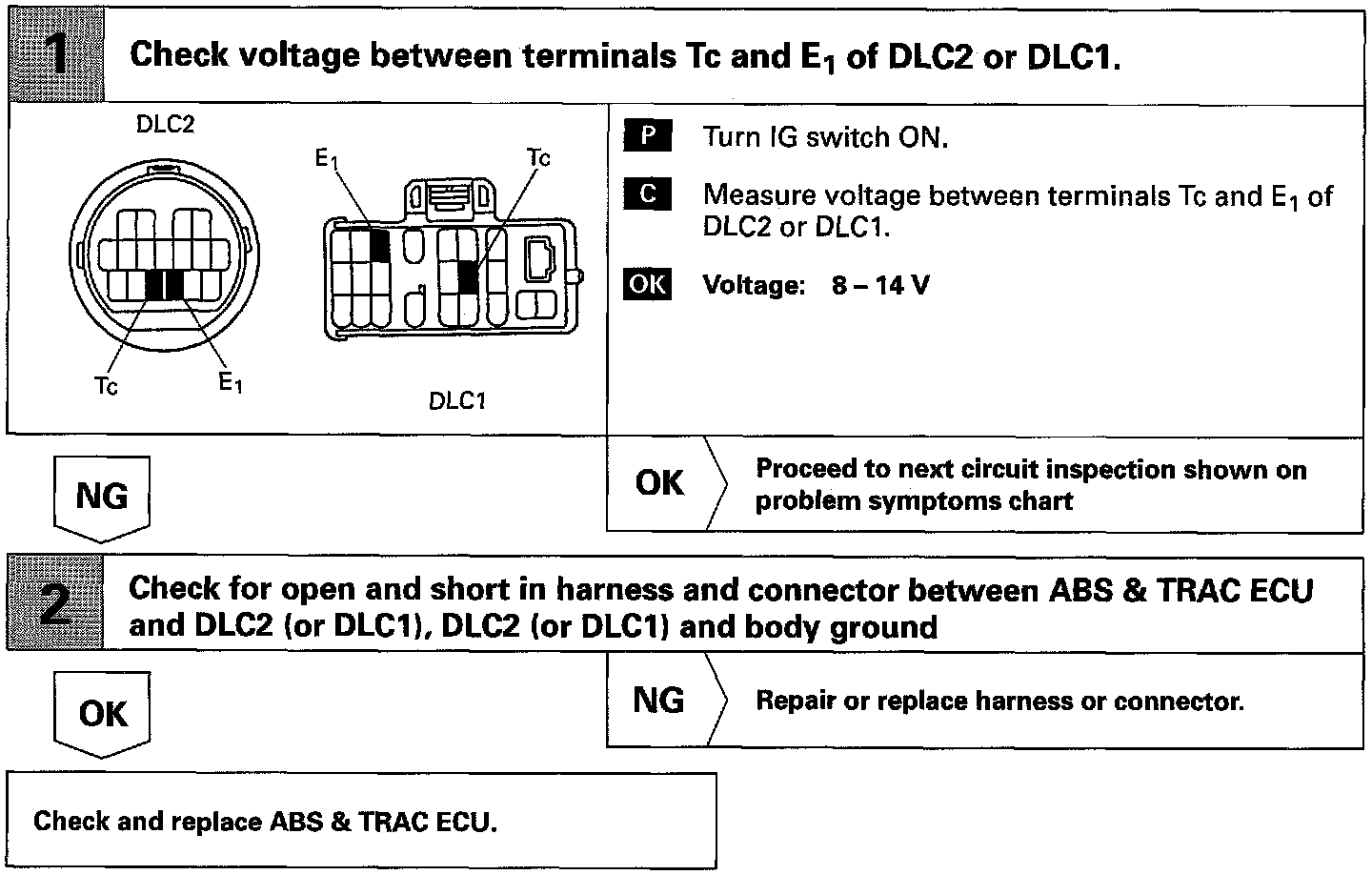

TC Terminal Circuit, Inspection Procedure:

CIRCUIT DESCRIPTION
By connecting between terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the DTC by blinking the TRAC OFF Indicator Light.
