TRAC Off Indicator, TRAC Cut Switch Circuit

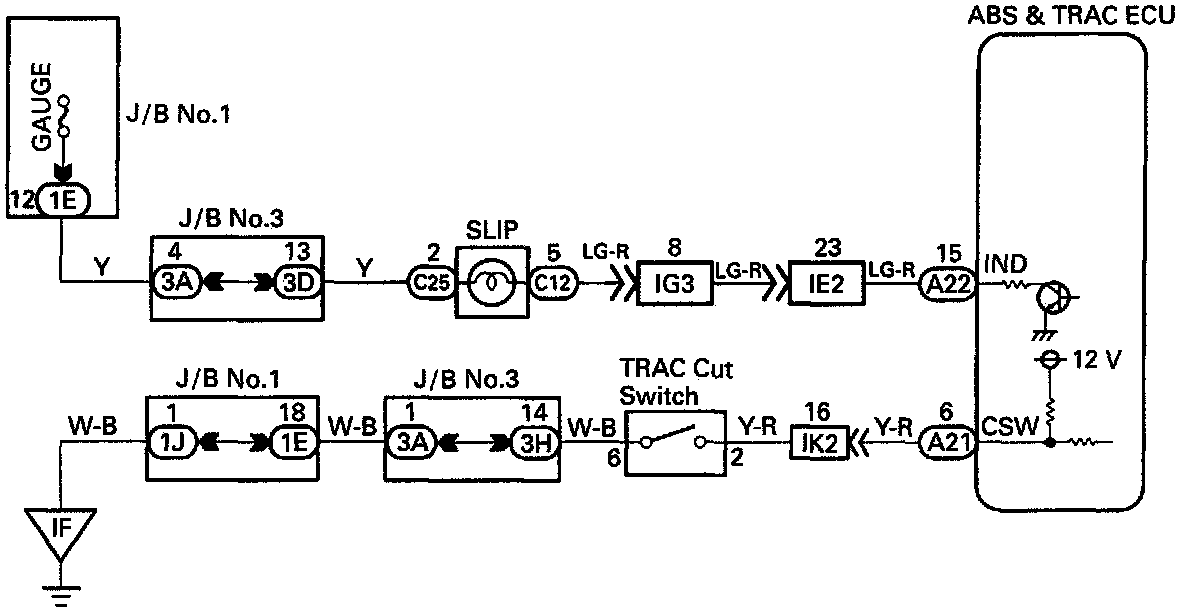

TRAC OFF Indicator, TRAC Cut Switch Circuit, Wiring Diagram:

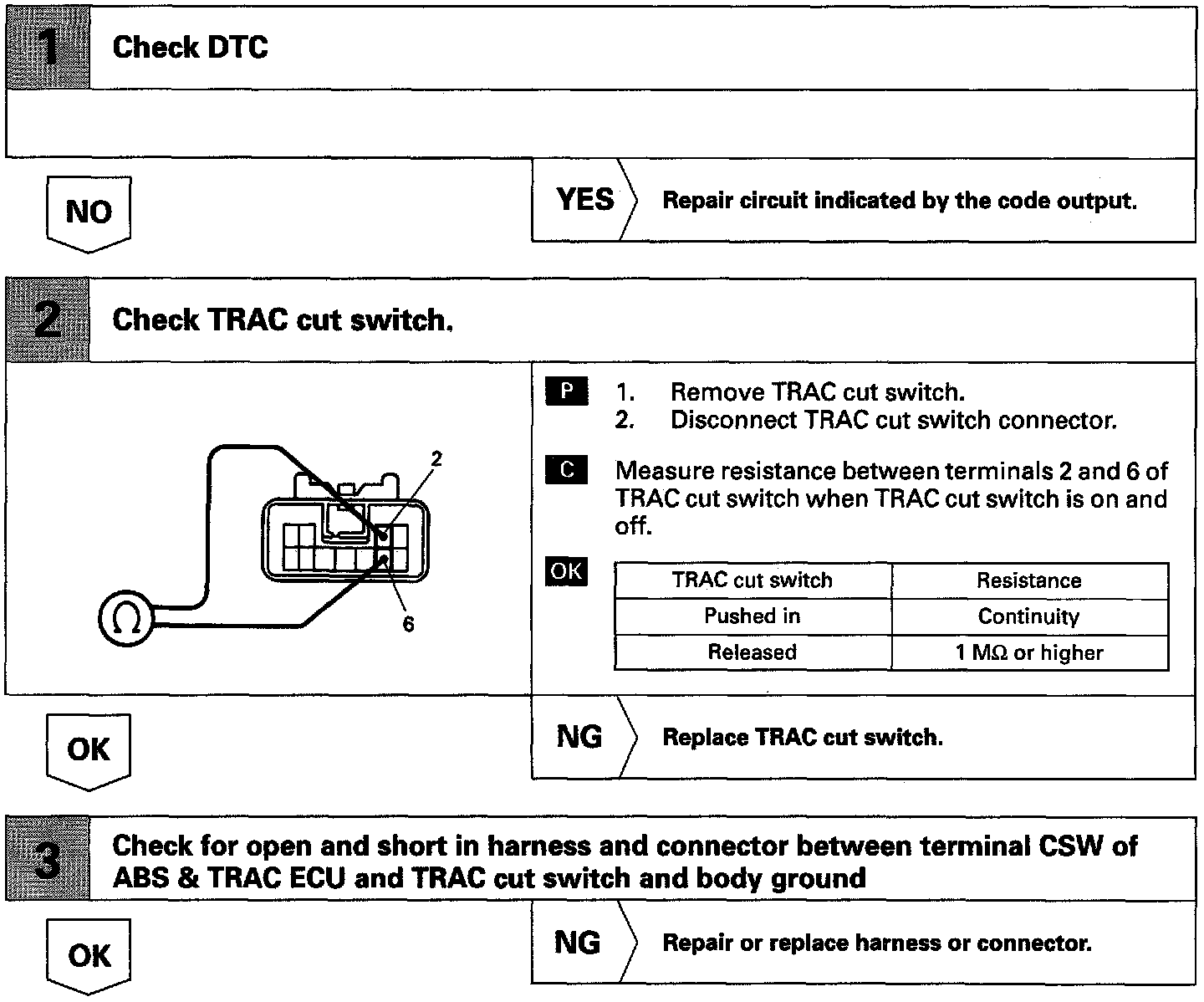

TRAC OFF Indicator, TRAC Cut Switch Circuit, Inspection Procedure Part 1 Of 2:

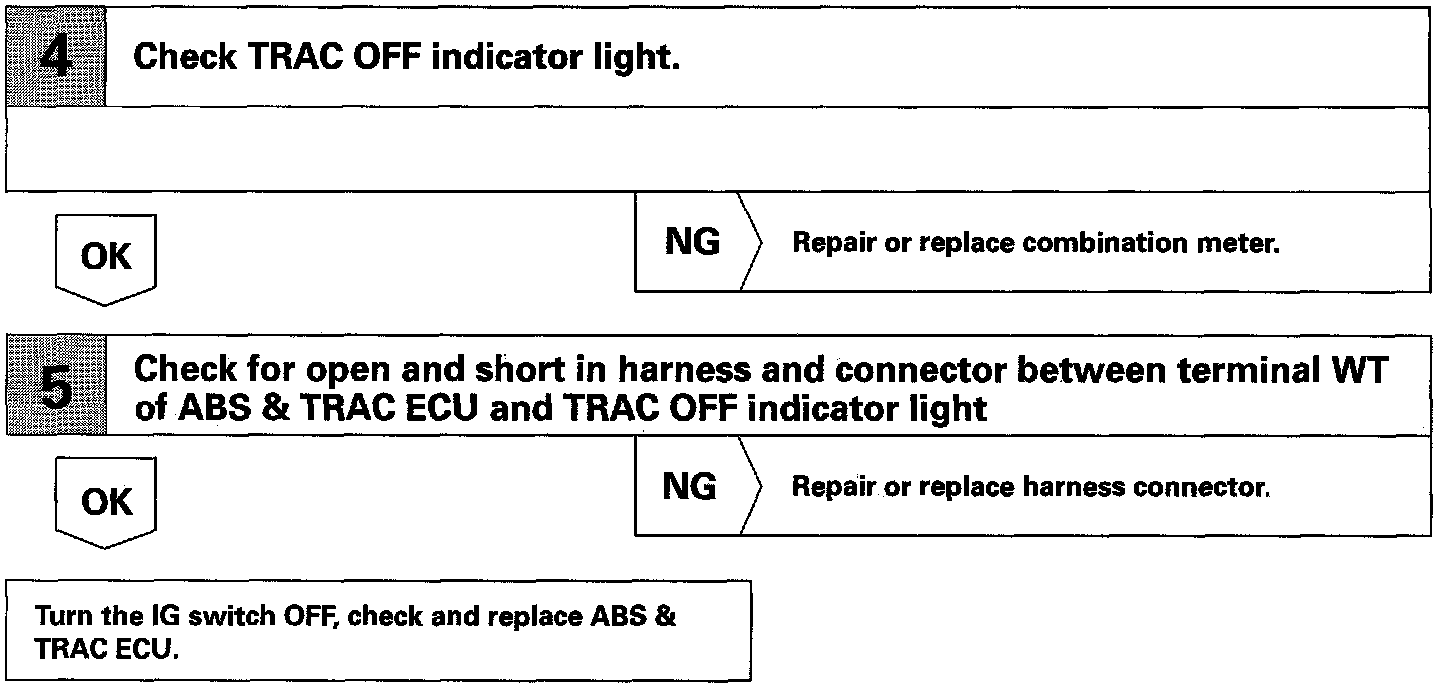

TRAC OFF Indicator, TRAC Cut Switch Circuit, Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
This is the TRAC control main switch. When the TRAC cut switch is pushed on, TRAC control goes off and the TRAC OFF Indicator Lights up. This indicator is also used for warnings when the trouble occurs and for displaying DTC.
