Slip Indicator Light Circuit

SLIP Indicator Light Circuit, Wiring Diagram:

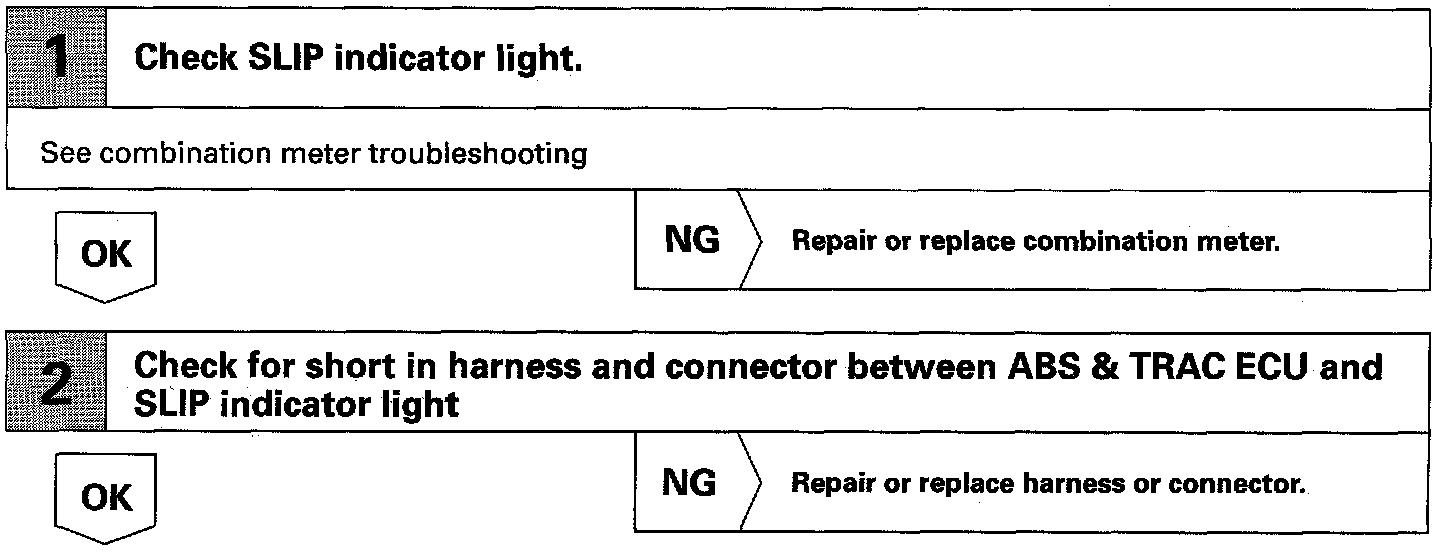

SLIP Indicator Light Circuit, Inspection Procedure Part 1 Of 2:




SLIP Indicator Light Circuit, Inspection Procedure Part 2 Of 2:






CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.
