Tc Terminal Circuit

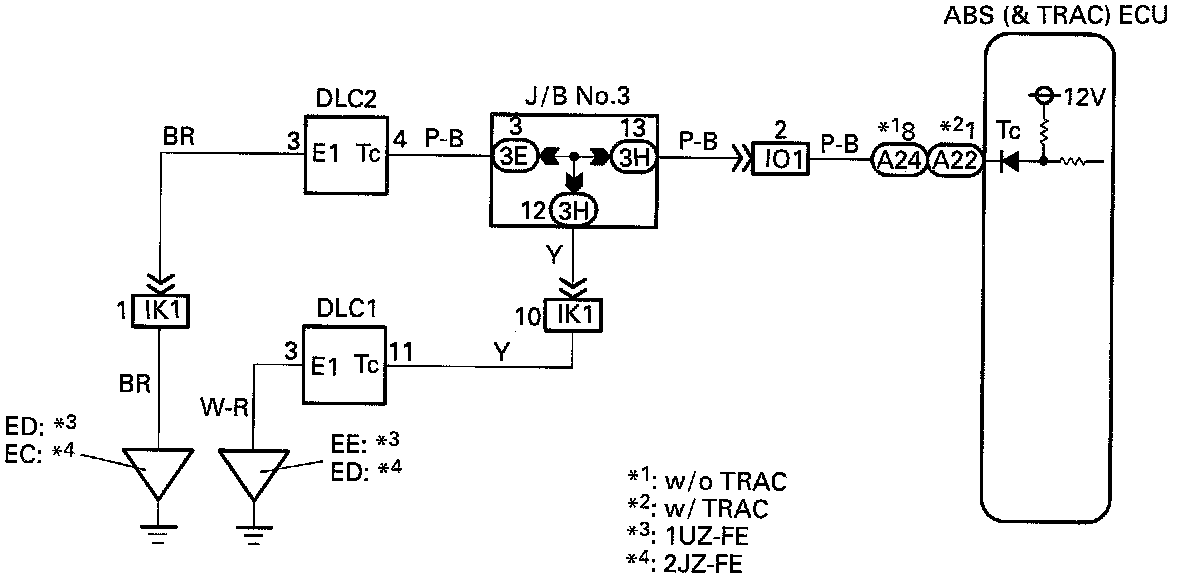

Tc Terminal Circuit, Wiring Diagram:

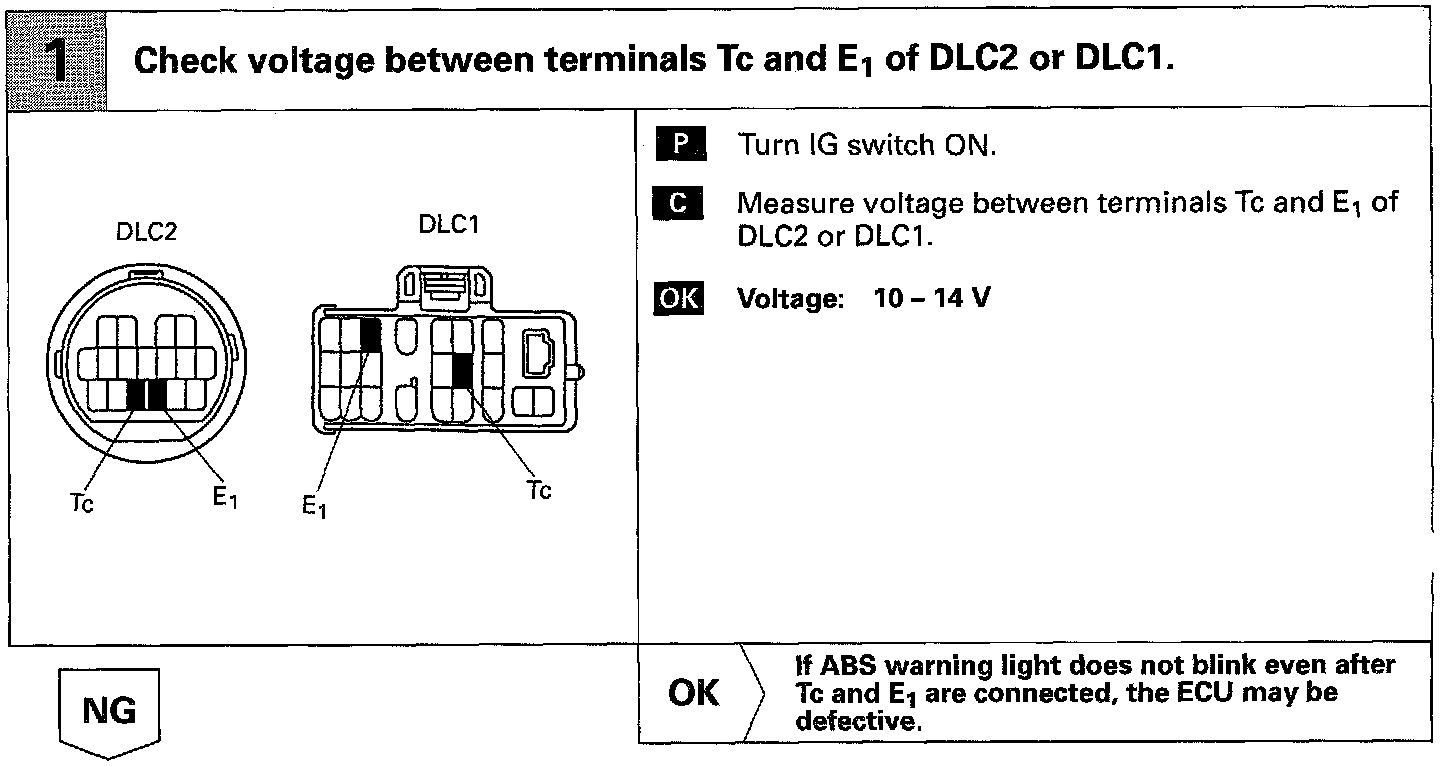

Tc Terminal Circuit, Inspection Procedure Part 1 Of 2:

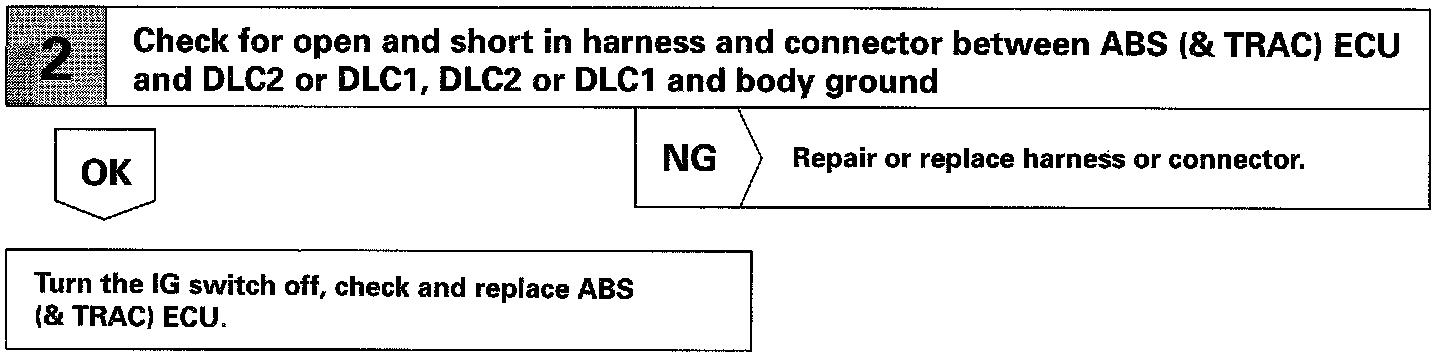

Tc Terminal Circuit, Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
Connecting between terminals Tc and E1 of the DLC1 or the DLDC2 causes the ECU to display the DTC by flashing the ABS Warning Light.
