ABS Warning Light Circuit

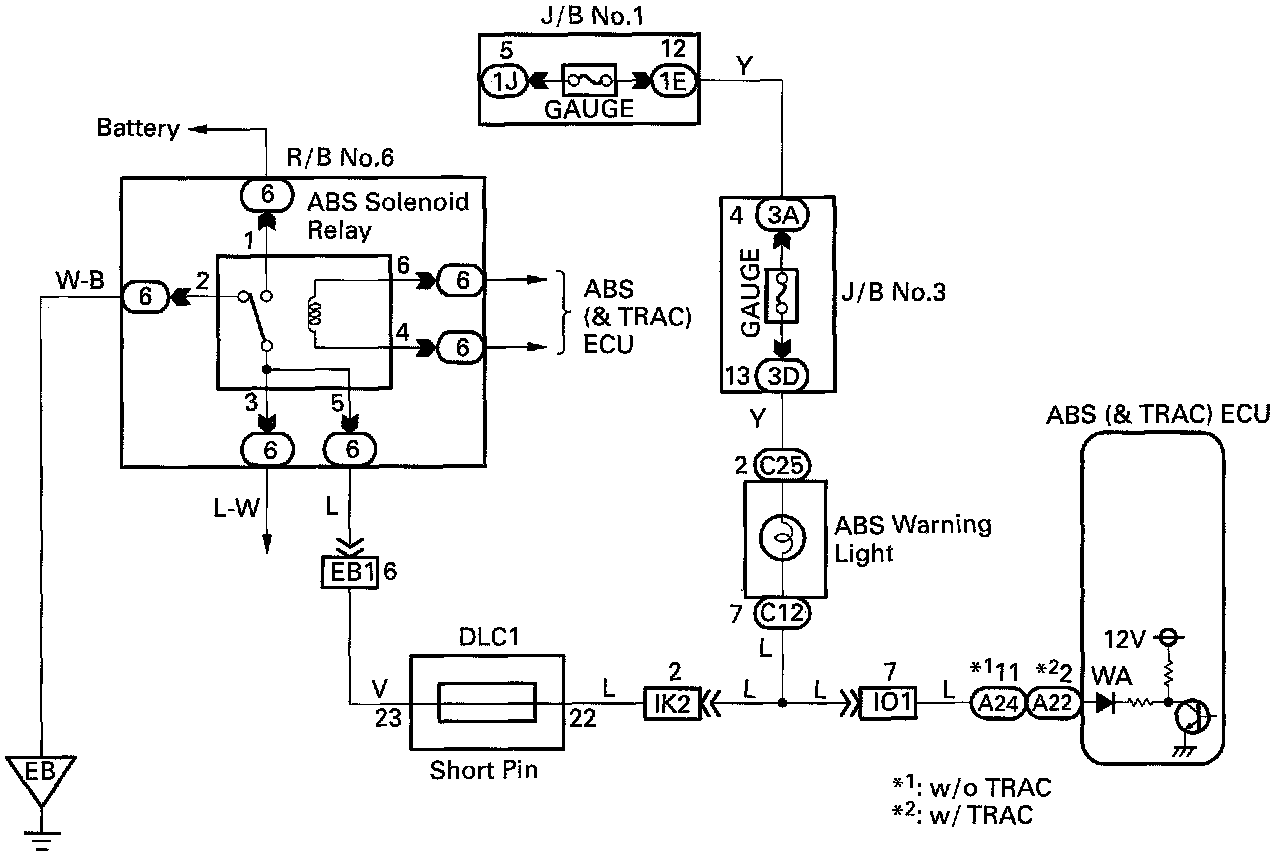

ABS Warning Light Circuit, Wiring Diagram:

ABS Warning Light Circuit, Inspection Procedure Part 1 Of 2:

ABS Warning Light Circuit, Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS Warning Light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.
After removing the short pin of the DLC1, connect terminals Tc and E1 of the DLC1 or DLC2 make the ABS Warning Light blink and output the DTC.

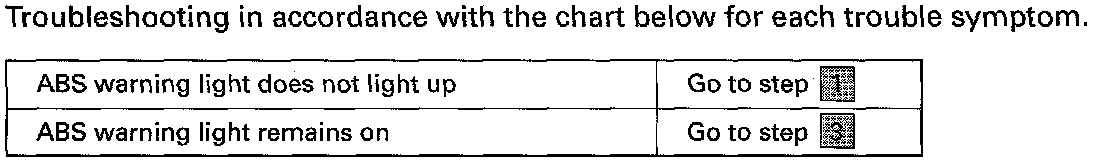

NOTE: Troubleshoot in accordance with the chart for each trouble symptom.
