Paint - Refinish Formula Codes/Names/Applications
PAINTPA001-97
March 7, 1997
Models: ALL MODELS
Title:
1997 PAINT AND REFINISH FORMULA CODES
Introduction
Paint Codes & Color Names

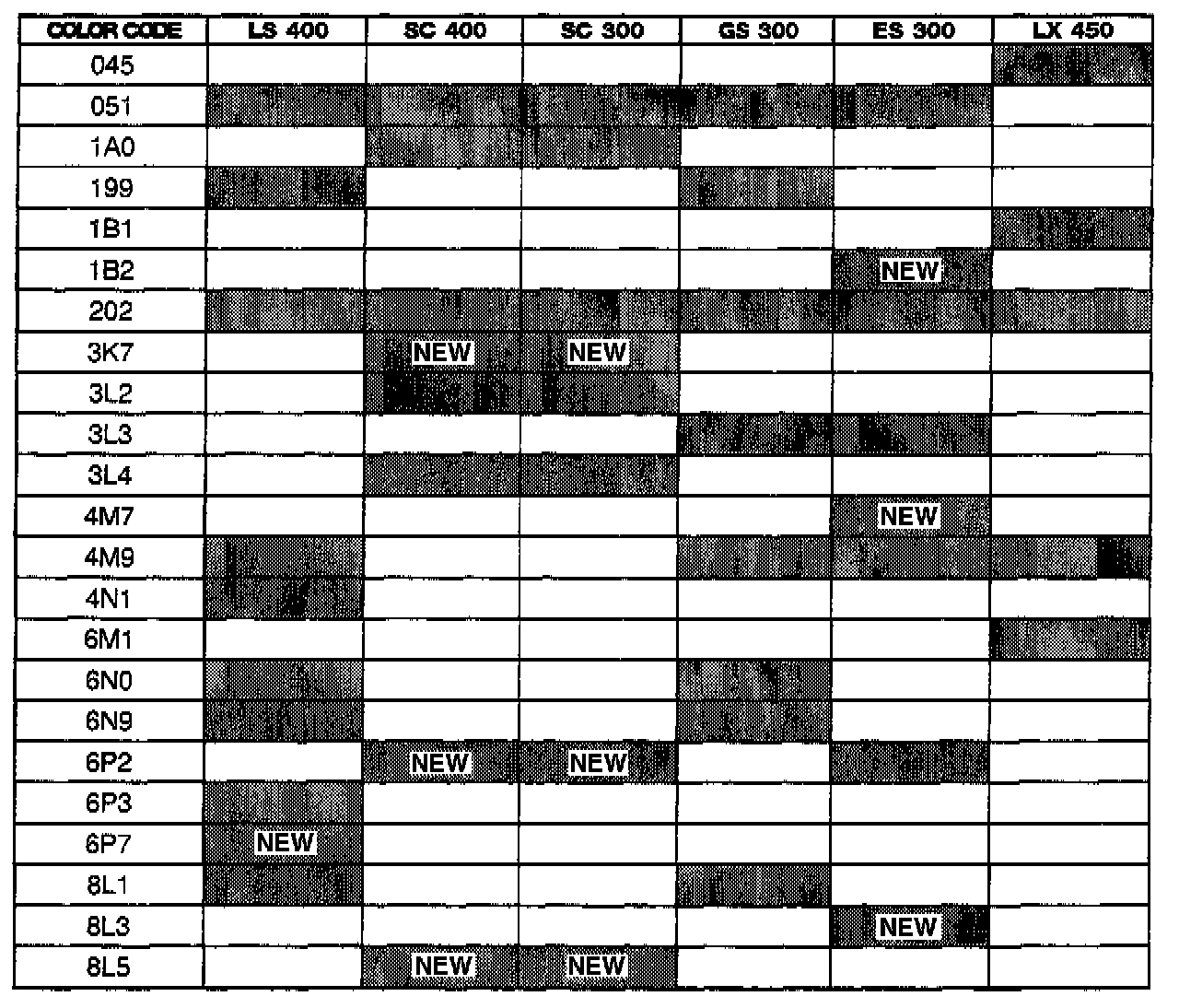

Paint Applications & Types

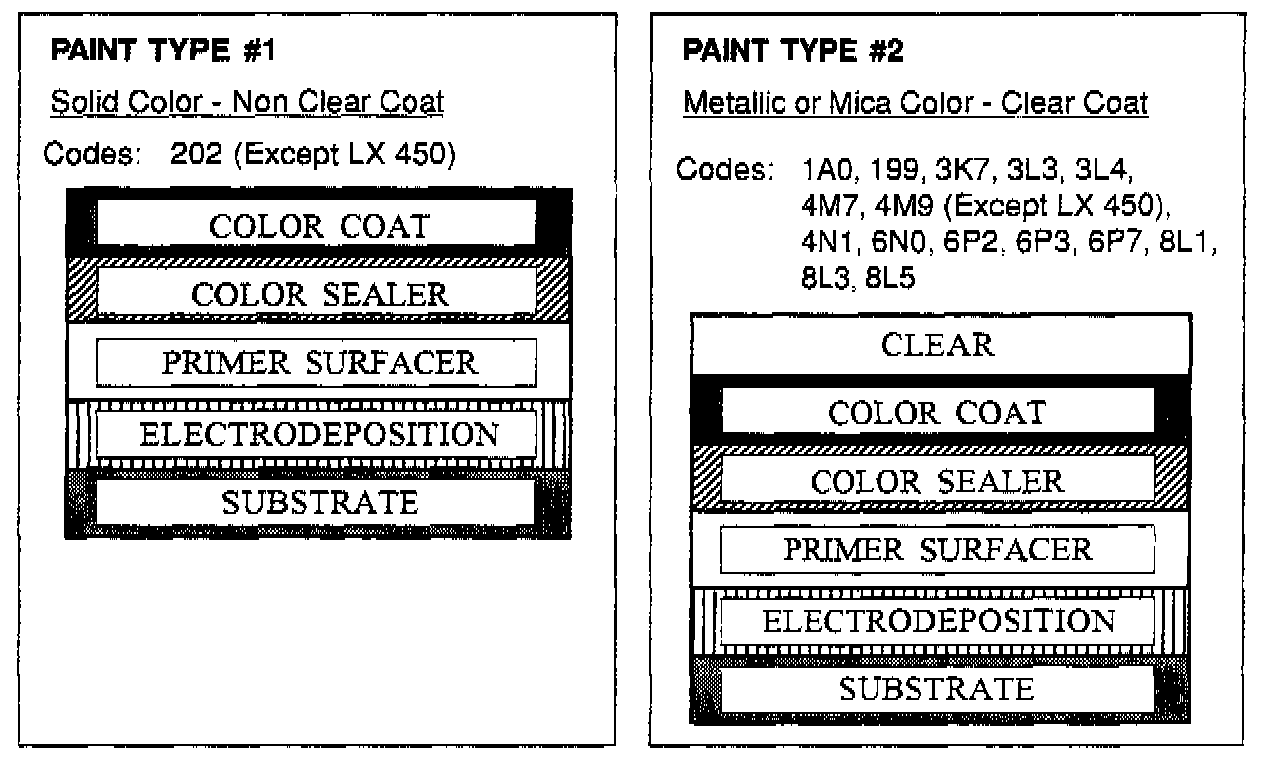

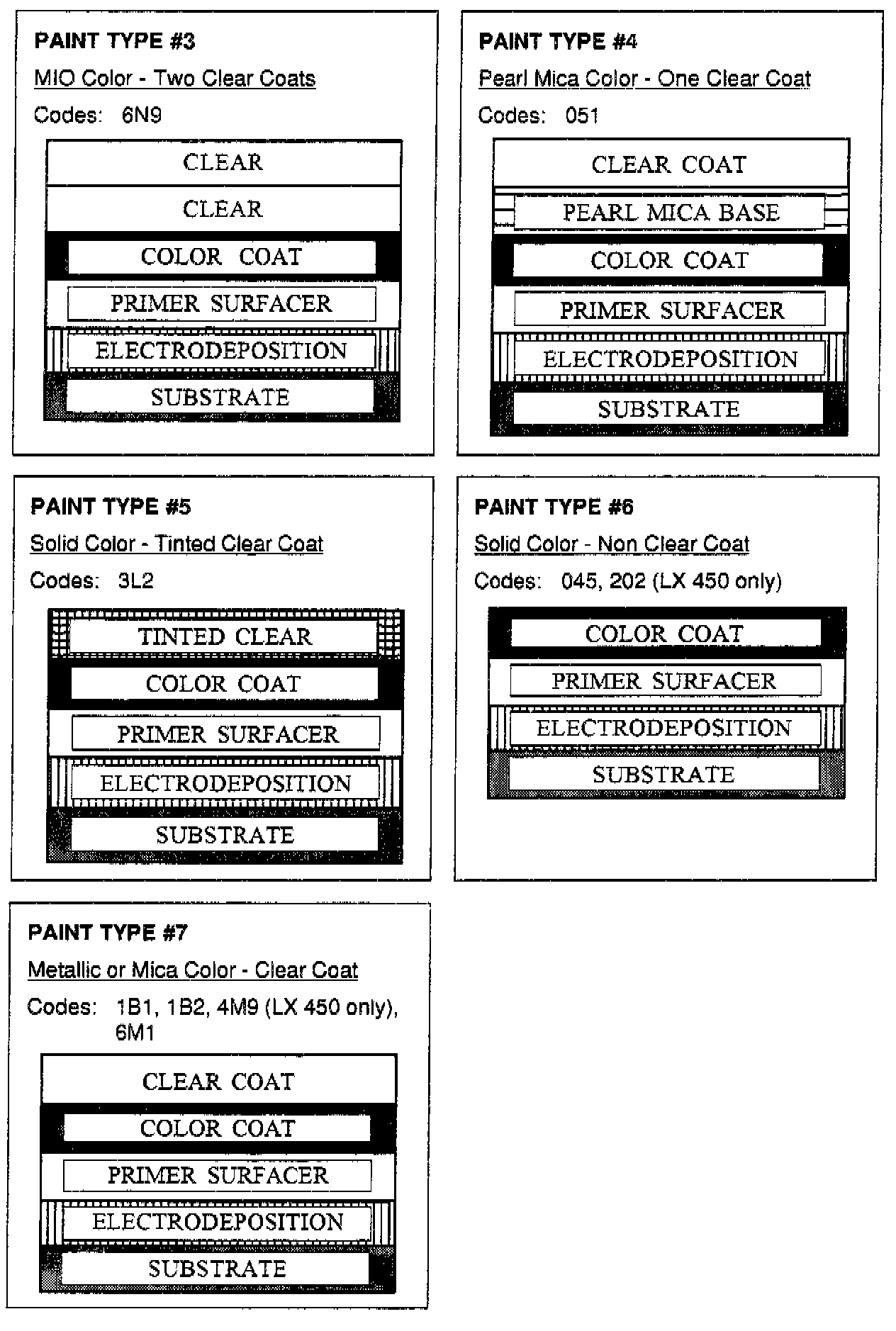

Paint Film Cross Sections

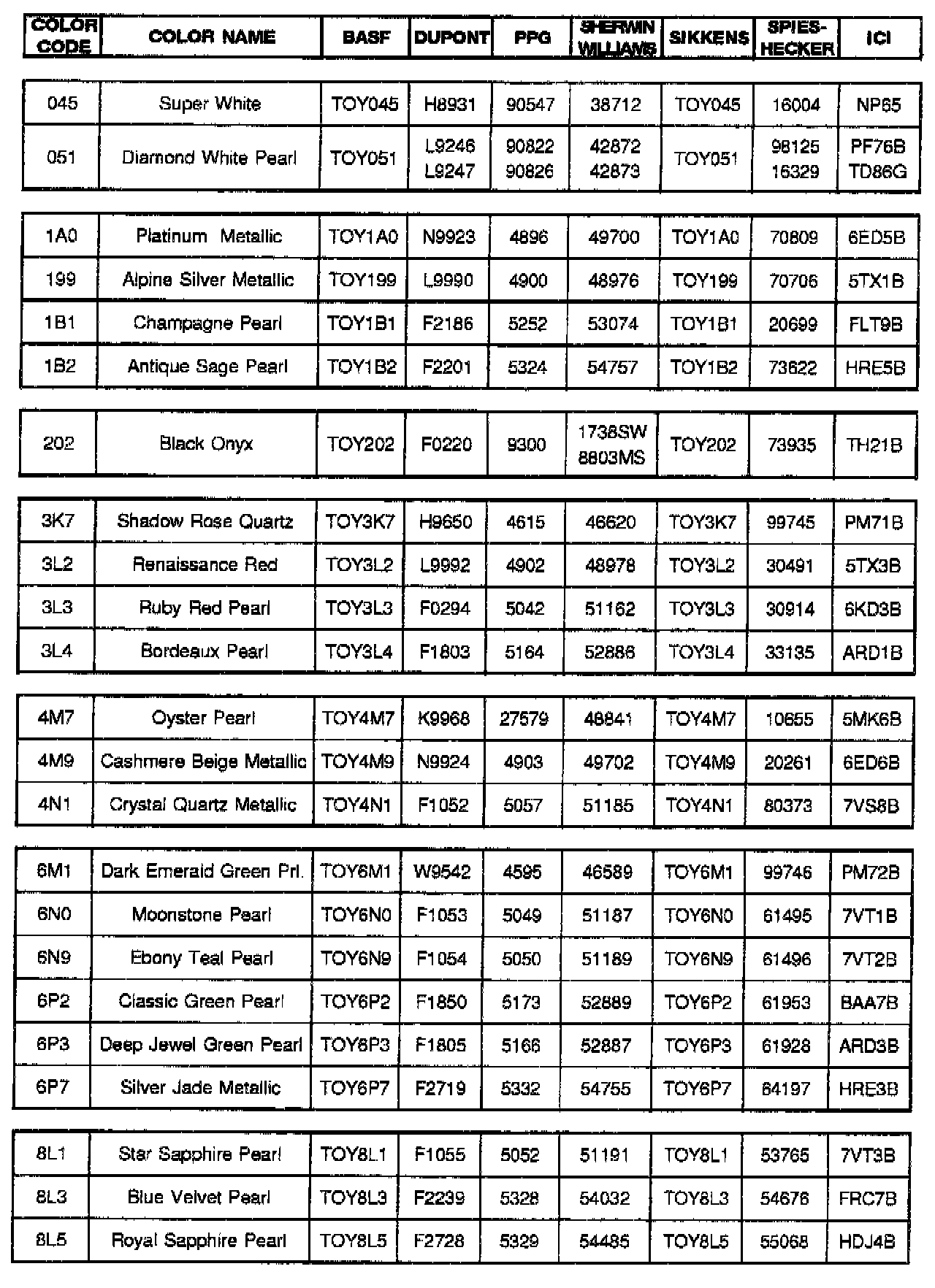

The above is a listing of 1997 Lexus paint codes and corresponding refinish formula codes for 8 (eight) refinish paint companies -- BASF, DuPont, PPG, Sherwin Williams, Sikkens, Spies Hecker, CI and Standox* (Paint and refinish formula codes are located in this bulletin).
* Standox uses the Lexus color code number as their paint code identification number.
Example: The Standox paint code number for Lexus color code 202 (Black Onyx) is 202.
NOTE:

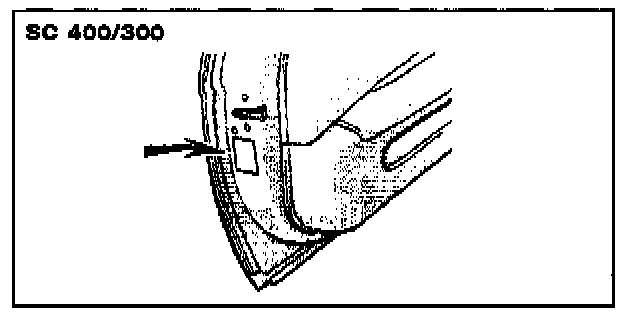

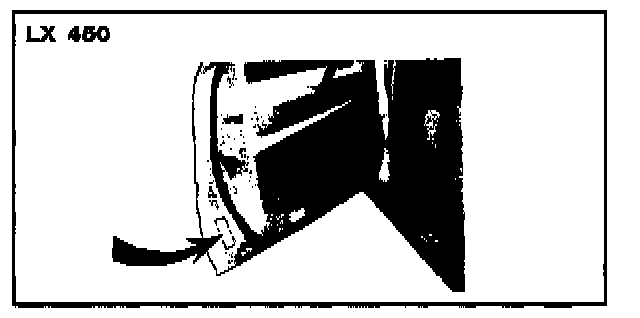

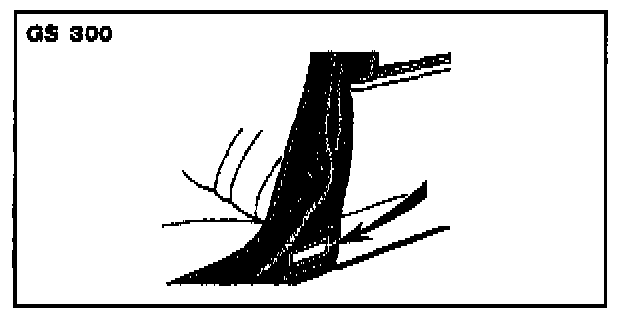

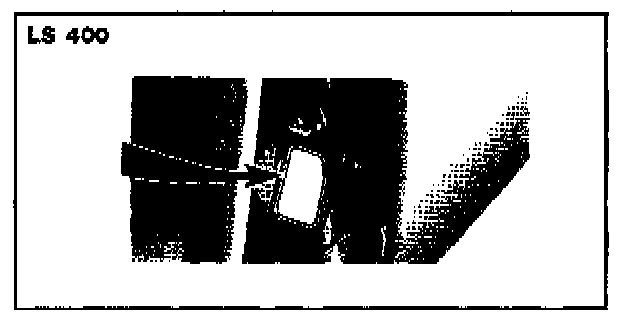

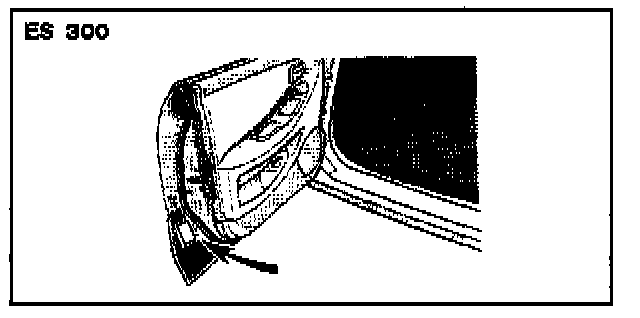

The body color code is indicated on the Certification Label which is located in the driver's door area as shown.
Please contact your local paint representative for the actual paint mixing formulas or for additional assistance in color matching.
Please provide a copy of this information to your Lexus Collision Repair Center
