Fuel Door Lock Switch: Testing and Inspection

FUEL LID OPENER SWITCH INSPECTION

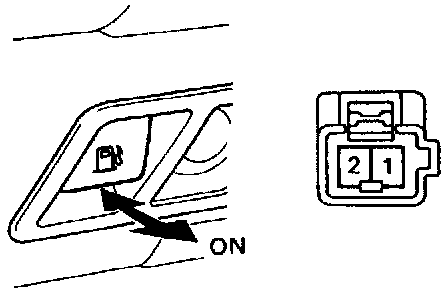

INSPECT SWITCH CONTINUITY
(a) Check that there is continuity between terminals with the switch ON (Lever pulled).
(b) Check that there is no continuity between terminals with the switch OFF (Lever free).
If continuity is not as specified, replace the switch assembly.
