Home
>>
Lexus
>>
1997
>>
SC 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Power Seat Control System
>>
Without Driving Position Memory
>>

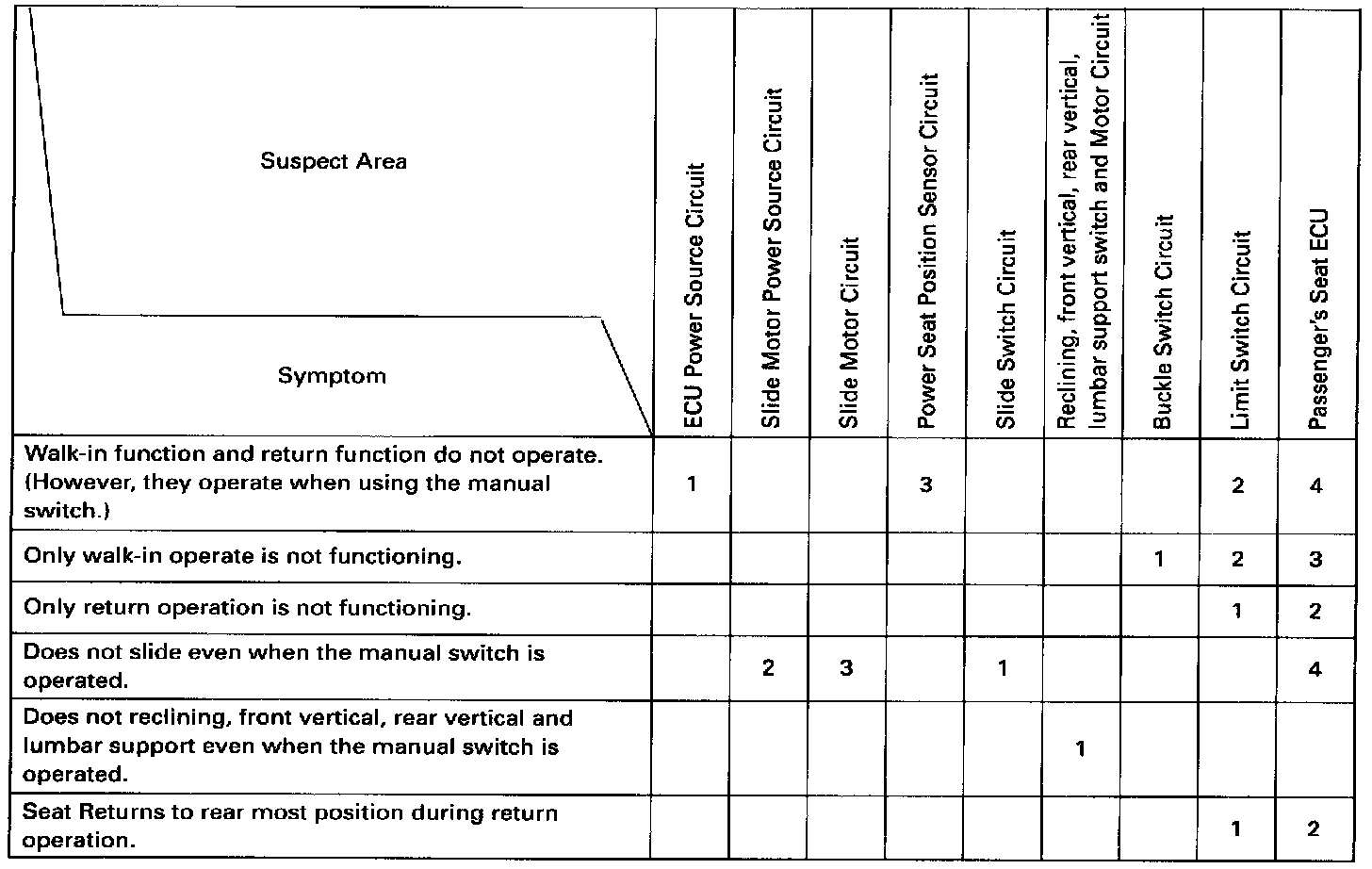

Diagnosis By Symptom
Diagnosis By Symptom
Perform troubleshooting the circuits for the applicable problem symptom in the order given in the chart above.
