Power Seat Switches

Driver's Side:
POWER SWITCH INSPECTION

1. INSPECT SEAT SWITCH CONTINUITY

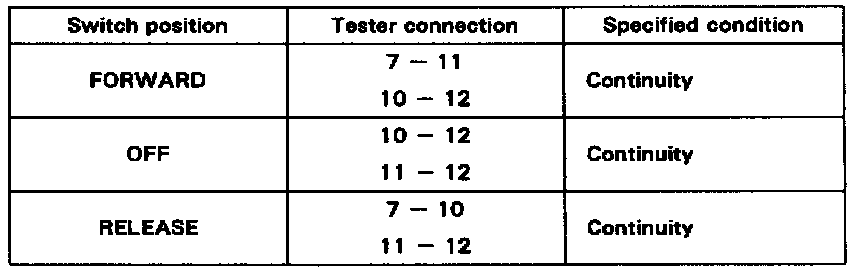

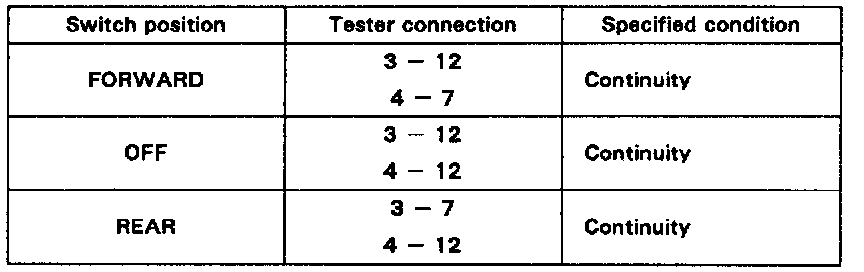

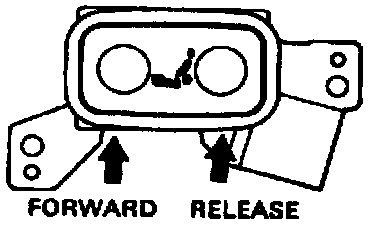

SLIDE SWITCH

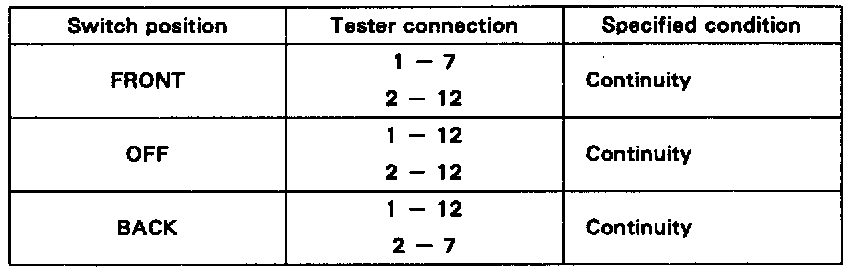

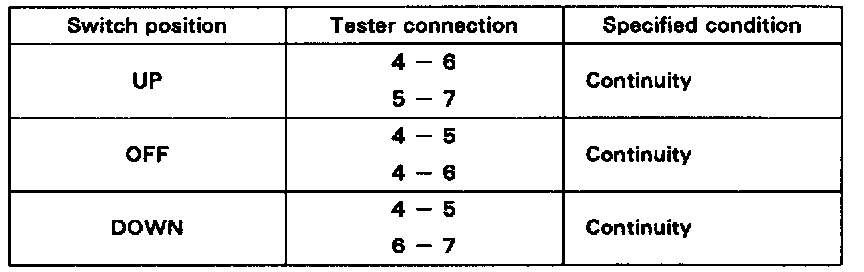

FRONT VERTICAL SWITCH

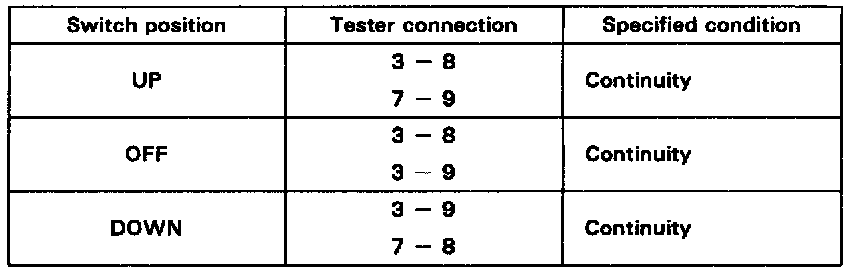

REAR VERTICAL SWITCH

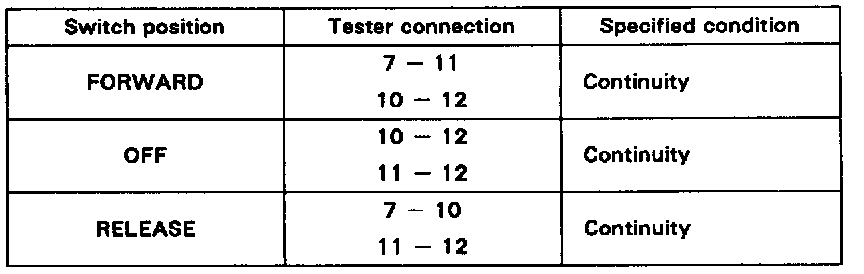

RECLINING SWITCH

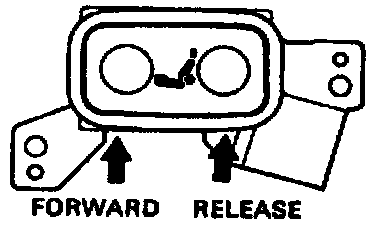

LUMBAR SUPPORT SWITCH
If continuity is not as specified, replace the switch.








2. INSPECT SWITCH CIRCUIT

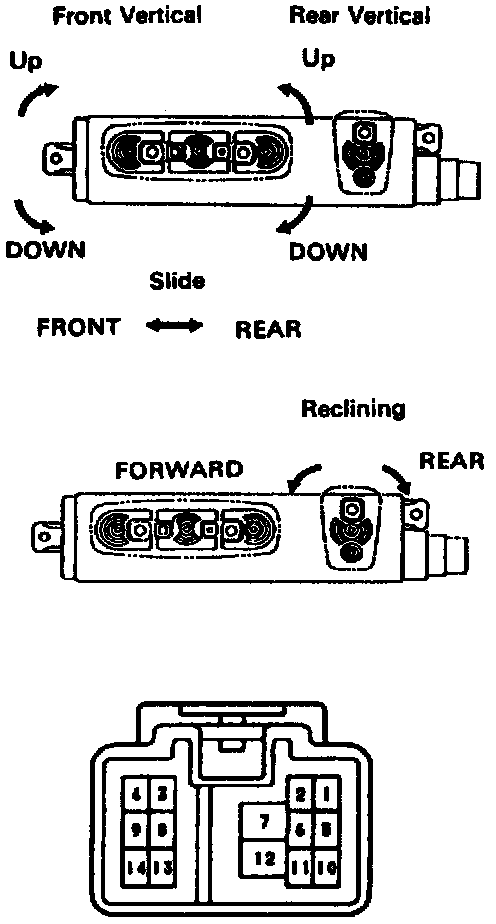

(a) Disconnect the switch connector and connect the seat wire harness to the floor wire harness.

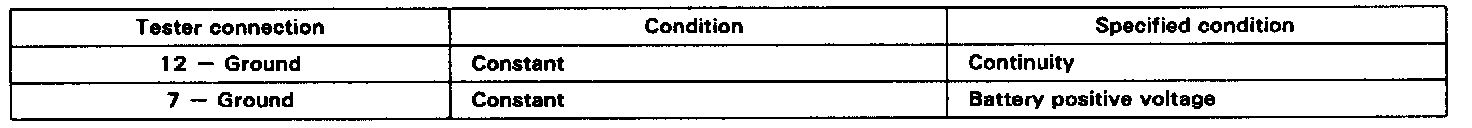

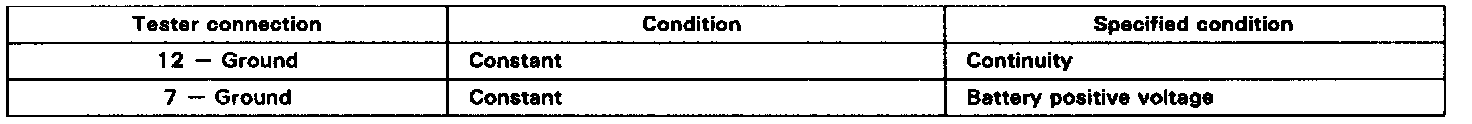

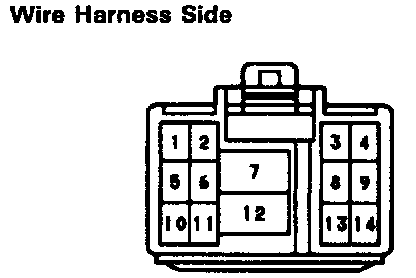

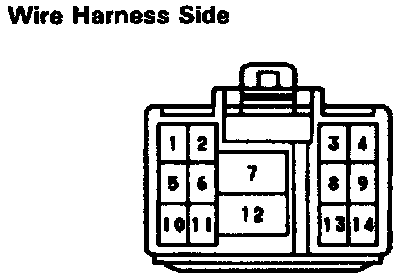

(b) Inspect the connector on the wire harness side. as shown.
If the circuit is not as specified, inspect the circuits connected to other parts.

Passenger's Seat
POWER SEAT SWITCH INSPECTION

INSPECT SWITCH CONTINUITY

SLIDE SWITCH

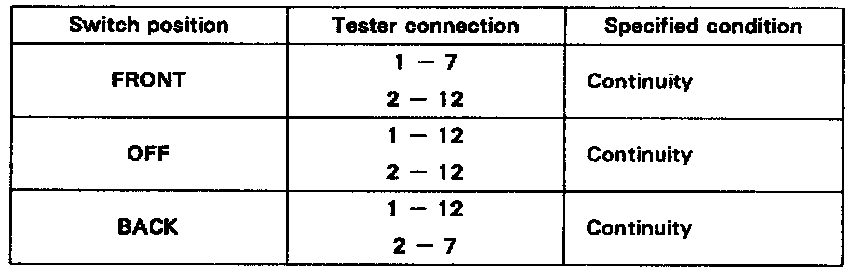

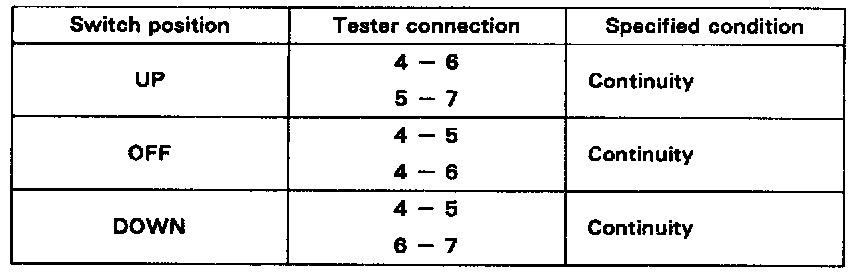

FRONT VERTICAL SWITCH

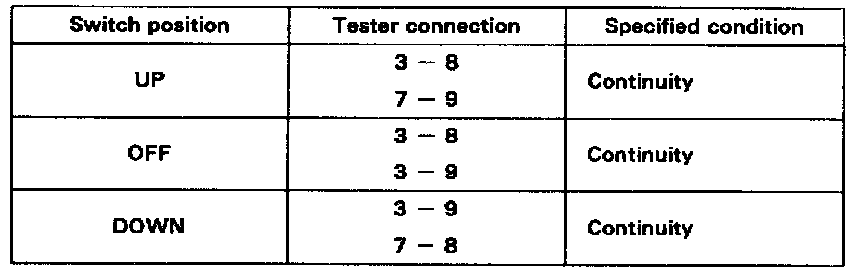

REAR VERTICAL SWITCH

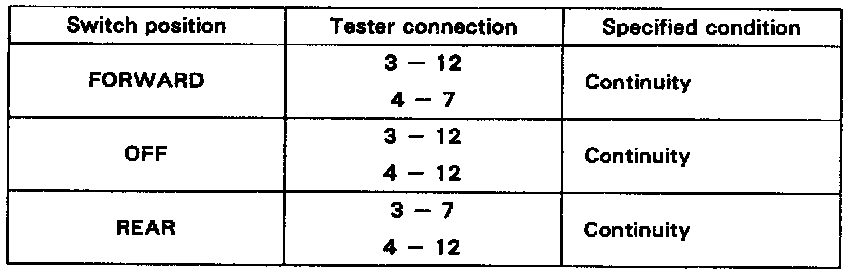

RECLINING SWITCH

LUMBAR SUPPORT SWITCH
If continuity is not as specified, replace the switch.








2. INSPECT SWITCH CIRCUIT

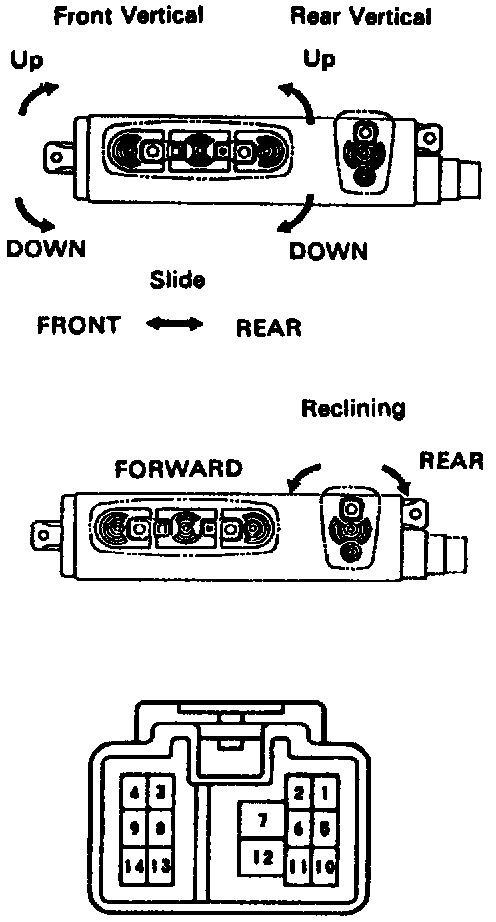

(a) Disconnect the switch connector and connect the seat wire harness to the floor wire harness.
(b) Inspect the connector on the wire harness side, as shown.
If the circuit is not as specified. inspect the circuits connected to other parts.
