Ignition Switch Circuit

CIRCUIT DESCRIPTION
When the ignition switch is turned to the ON position, battery positive voltage is applied to the terminals IG of the ECU. Furthermore, power supplied from the terminals IG of the ECU is used as power for the wireless door lock buzzer.

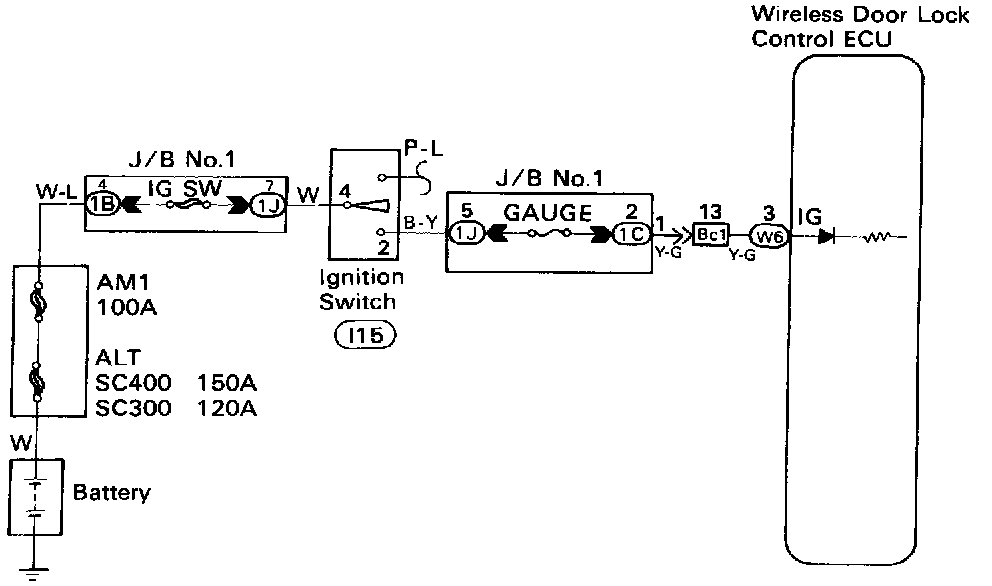

WIRING DIAGRAM

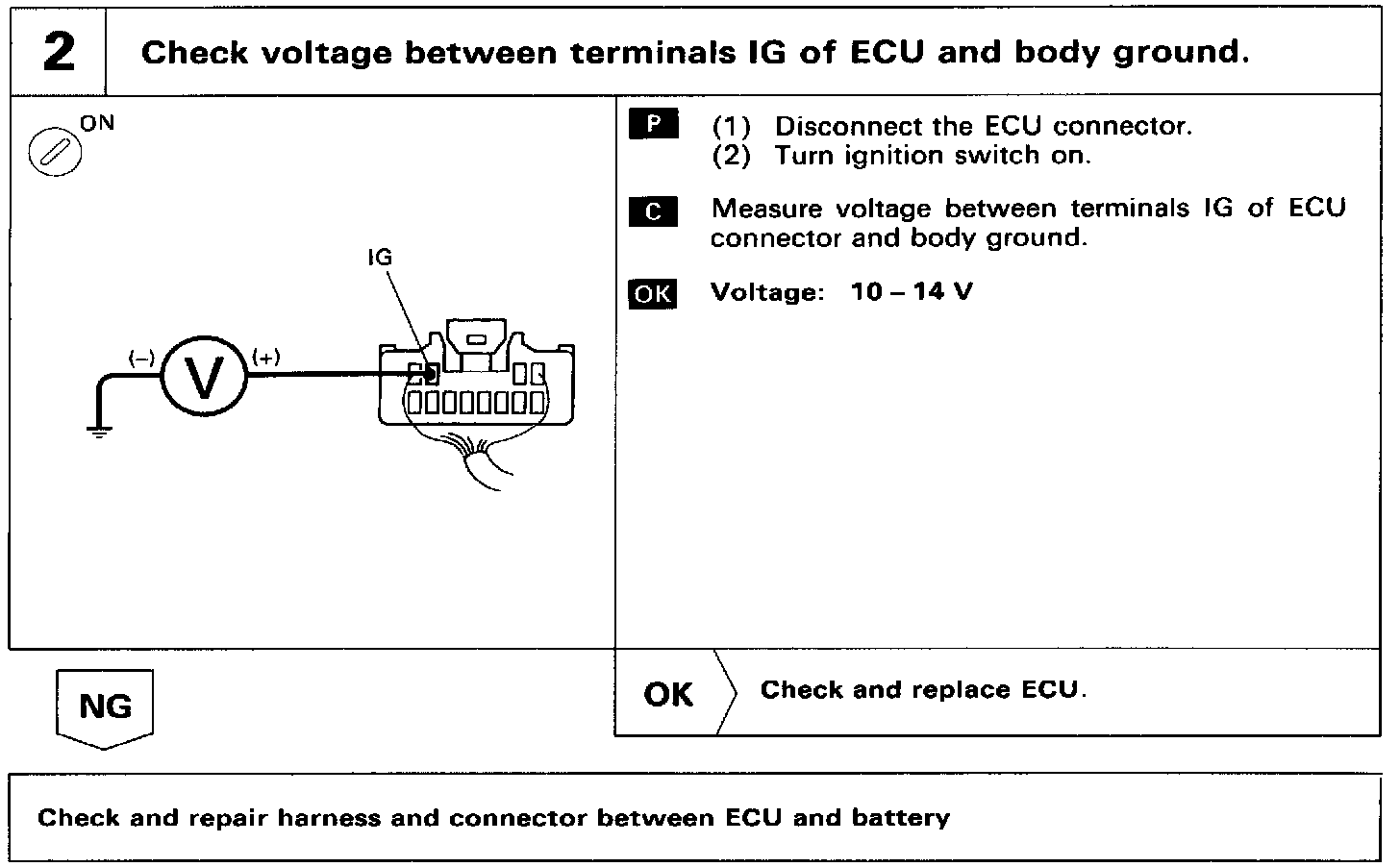

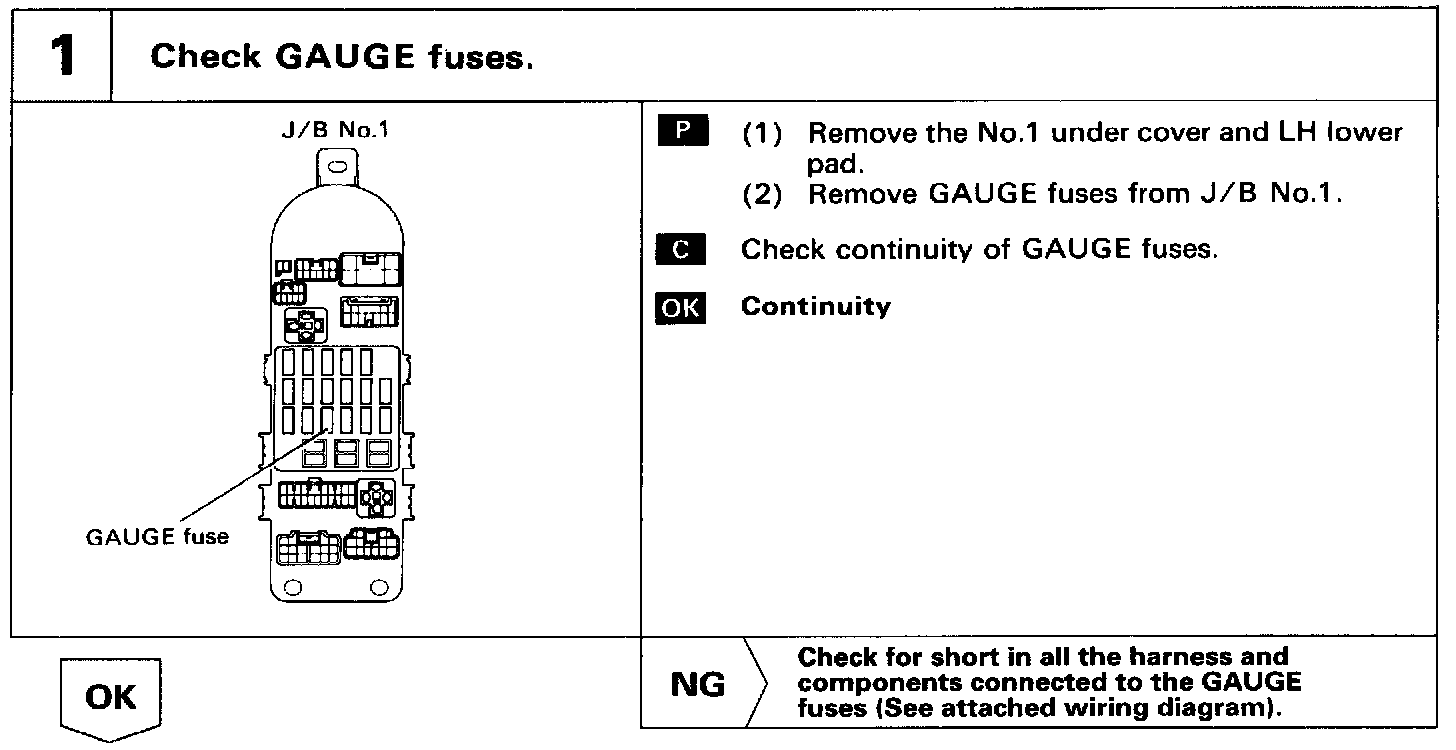

INSPECTION PROCEDURE
