Door Key Lock and Unlock Switch Circuit (Unlock Side)

CIRCUIT DESCRIPTION
The door unlock detection switch is built into the door lock motor assembly. The switch is OFF when the door lock knob is in Lock position and is ON when the knob is in Unlock position.

Furthermore, the door unlock detection switch circuit has terminal + B connected inside the theft deterrent ECU, when the door unlock detection switch is OFF, battery positive voltage is applied to the terminal of the door unlock detection switch circuit of the wireless door lock ECU.

(Tr inside the ECU coming ON causes the wireless door lock ECU to output a signal to unlock all the doors.)

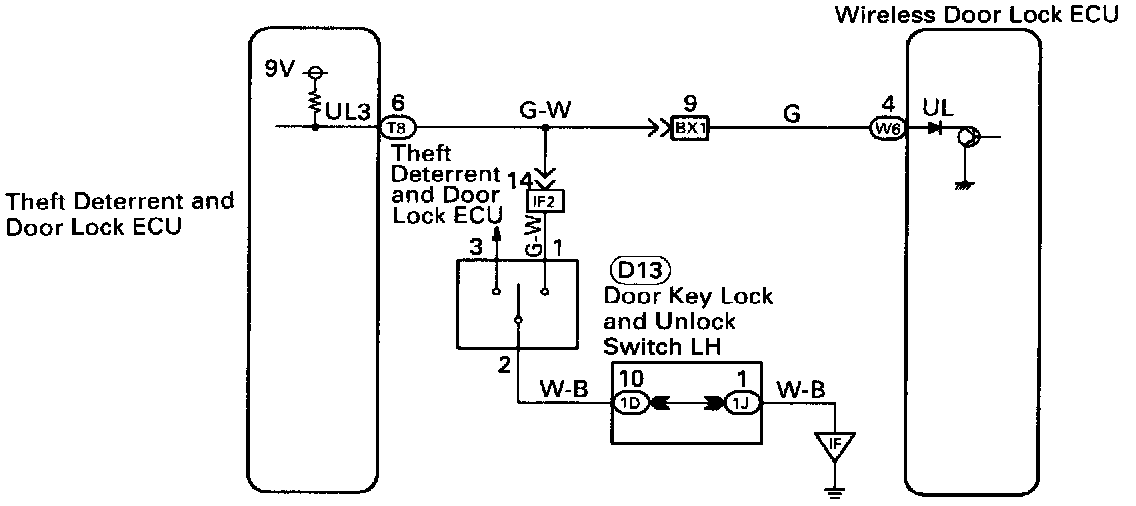

WIRING DIAGRAM

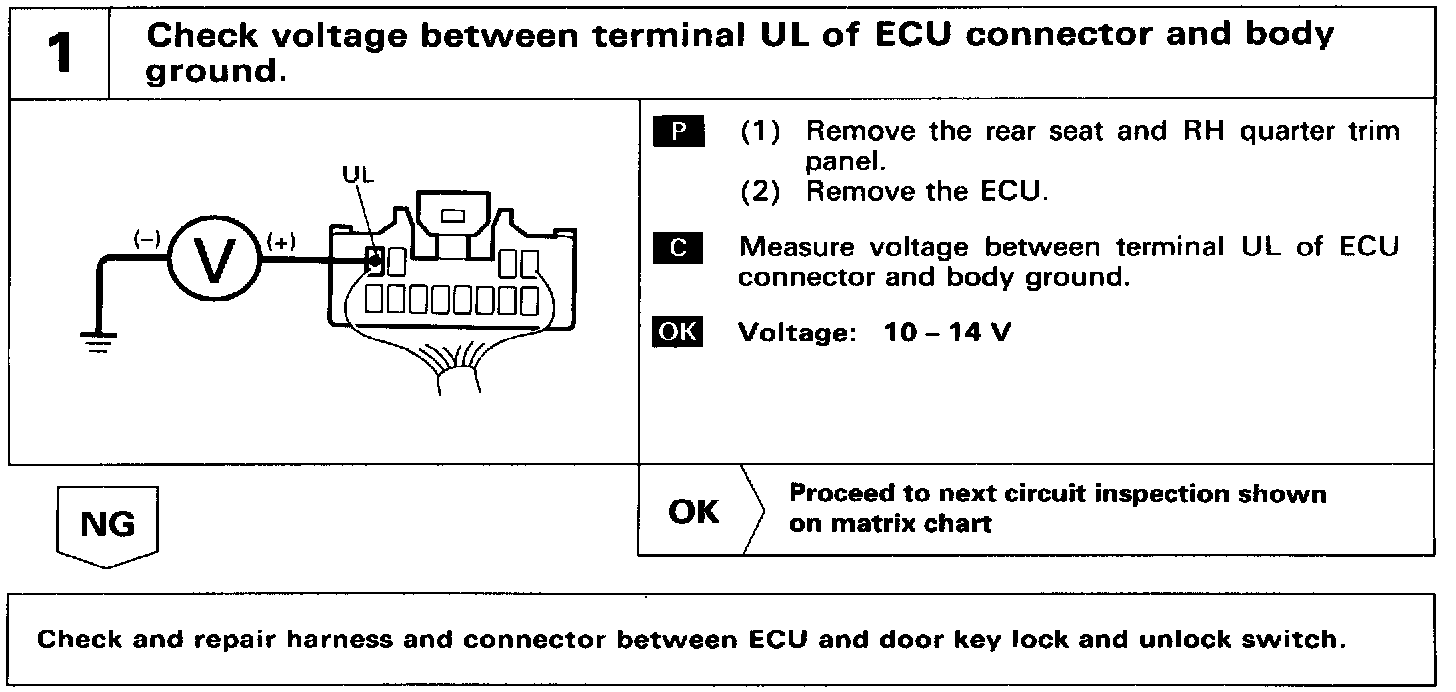

INSPECTION PROCEDURE
