Fuel Door Release Actuator: Testing and Inspection

FUEL LID OPENER SOLENOID INSPECTION

INSPECT SOLENOID OPERATION

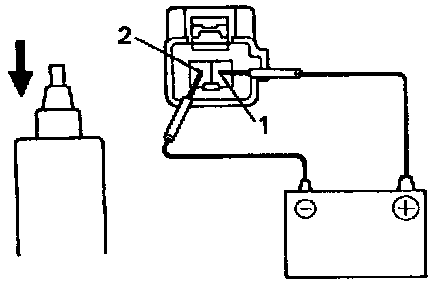

(a) Apply battery positive voltage to the terminals.
(b) Check that the solenoid operates in the open direction.
If operation is not as specified, replace the solenoid.
