Procedures

FRONT DOOR REMOVAL

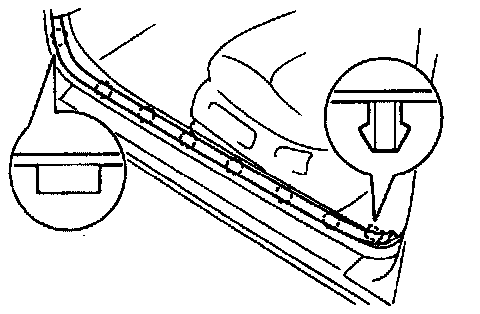

1. REMOVE FRONT SCUFF PLATE
Using a screwdriver. remove the plate.

HINT: Tape the screwdriver tip before use.

2. DISCONNECT CONNECTORS

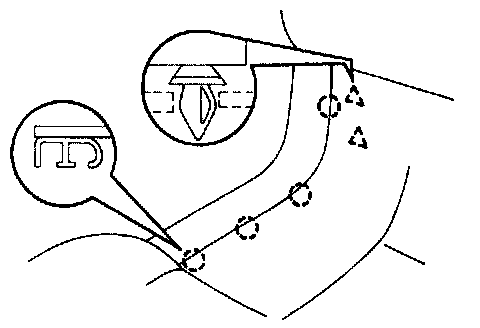

(a) Disconnect the front corner of the floor carpet.

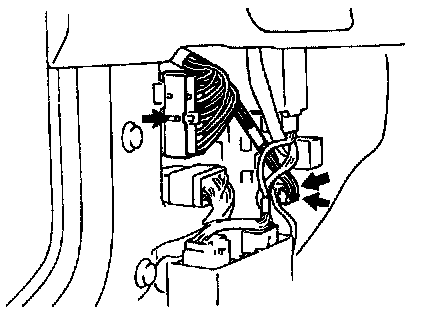

(b) Disconnect 3 connectors as shown.





3. REMOVE DOOR
While supporting the door, remove 6 door hinge bolts to remove the door.

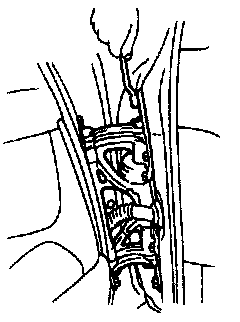

4. REMOVE DOOR HINGE
Remove 4 bolts and the hinge.

FRONT DOOR INSTALLATION
Install Front Door Parts By Following Removal Sequence In Reverse.

HINT: After installing the door, adjust the door.
