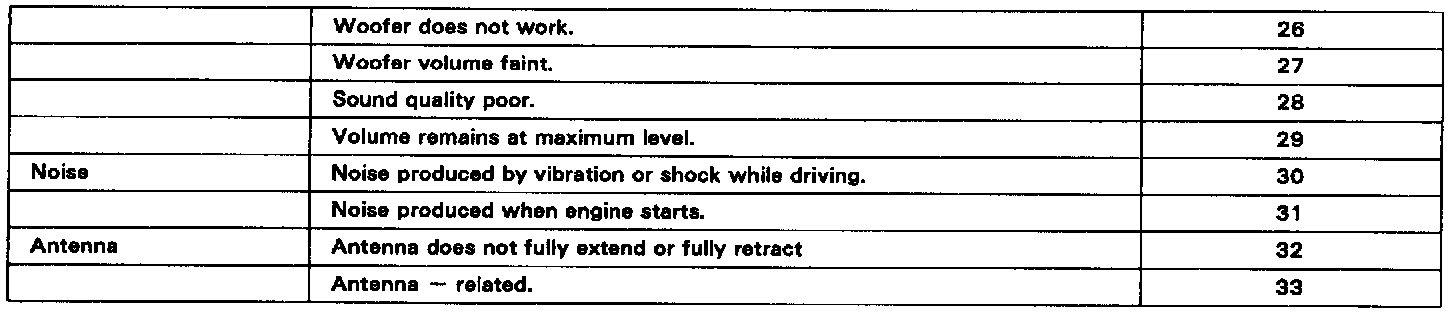

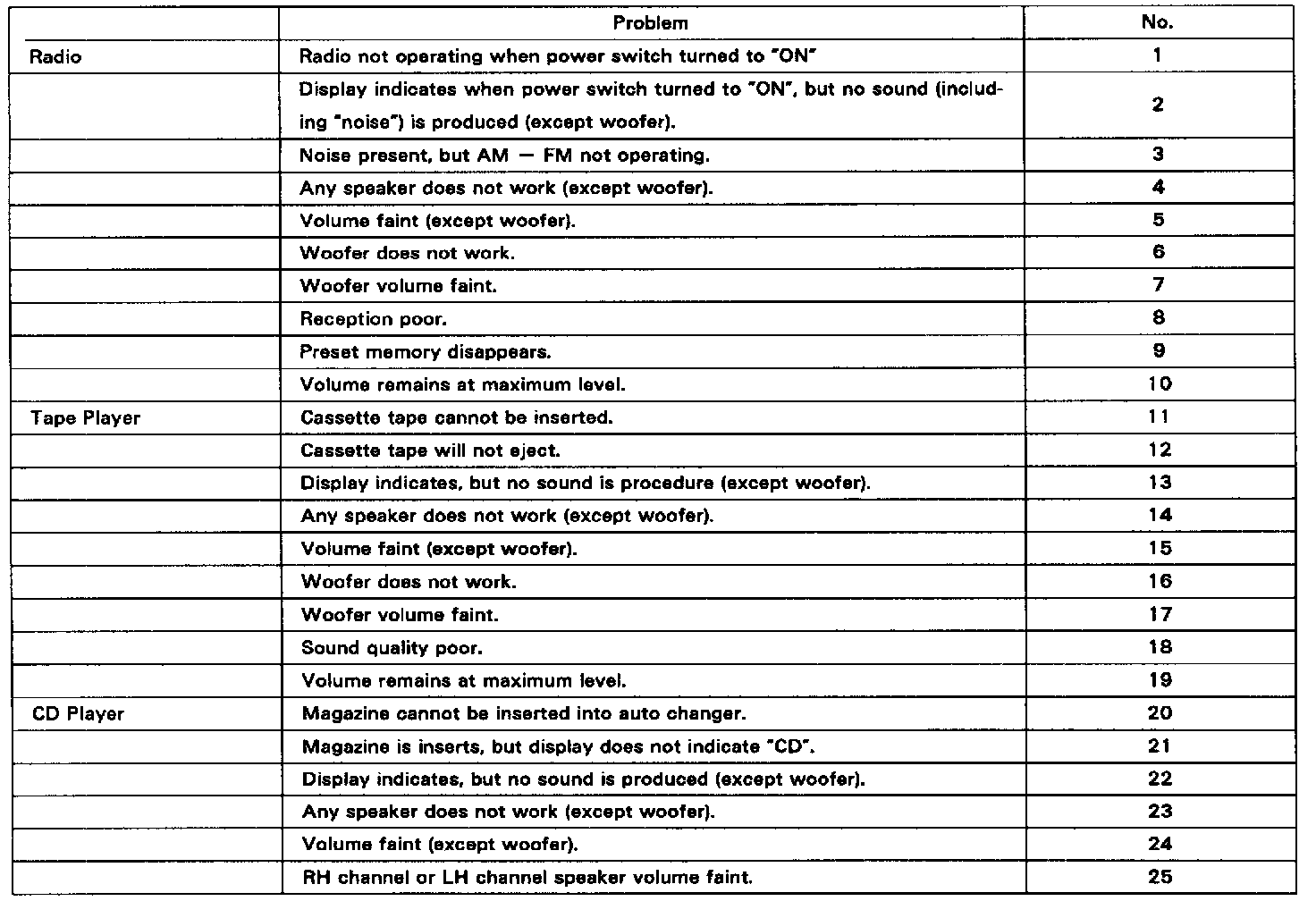

Problem Symptoms Table

TROUBLESHOOTING

NOTE: When replacing the internal mechanism (ECU part) of the radio system, be careful that no part of your body or clothing comes in contact with the terminals of the leads from the IC, etc. of the replacement part (spare part).

HINT:
^ This inspection procedure is simple troubleshooting which should be carried out on the vehicle during system operation and is based on the assumption that the cause of trouble lies with the system components (excluding the wires and connectors. etc.).
Always inspect the trouble taking the following items into consideration.
^ Open or short circuit of the wire harness
^ Connector or terminal connection fault
^ The cassette tape or compact disc itself may be causing the trouble, so when troubleshooting the tape player or CD player, always use a different cassette tape or compact disc first of all to check operation of the tape player or CD player.
^ For some of problems in the following problem chart, the AUDIO SYSTEM CHECKER can be used to inspect malfunctions of the Radio or Tape Player and the CD PLAYER CHECKER and used to inspect the CD player.
The portions indicated by + on the flow charts on the following pages can be inspected using a CHECKER.
For instructions on how to connect the checker to the vehicle and how to use the checker. please refer to instruction Manual for AUDIO SYSTEM CHECKER or CD PLAYER CHECKER.
