Radio Receiver Assembly

RADIO RECEIVER ASSEMBLY INSPECTION

INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT

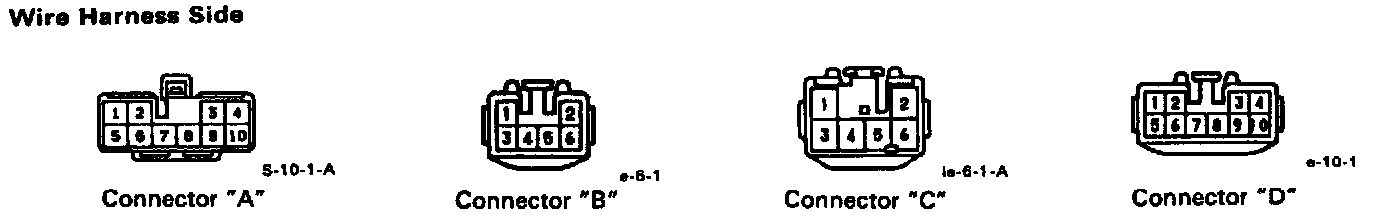

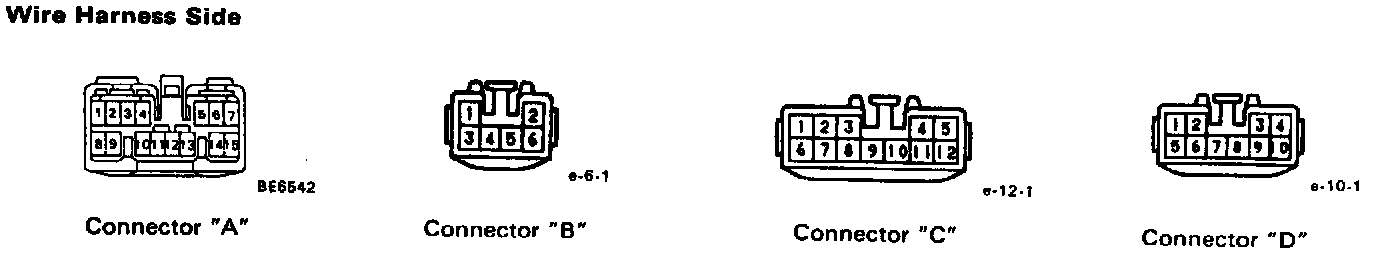

Disconnect the connectors from the radio receiver assembly. Inspect the connector on the wire harness side, as shown.








without CD player:

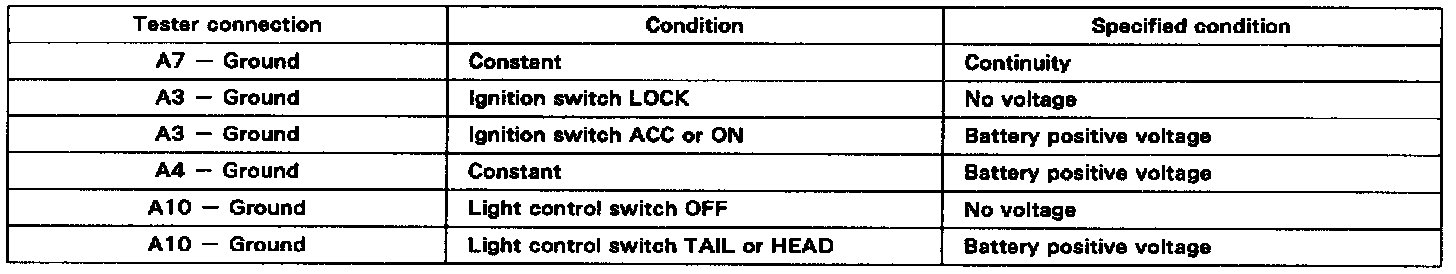

If circuit is not as specified, inspect the circuits connected to other parts.








With CD player:
If circuit is not as specified, inspect the circuits connected to other parts.

HINT: Check the wire harness between radio receiver assembly and the CD auto changer, between radio receiver assembly and power amplifier, in accordance with the wiring diagrams.
