Power Amplifier

POWER AMPLIFIER INSPECTION





INSPECT AMPLIFIER CIRCUIT
Disconnect the connector from the power amplifier and inspect the connector on the wire harness side, as shown.

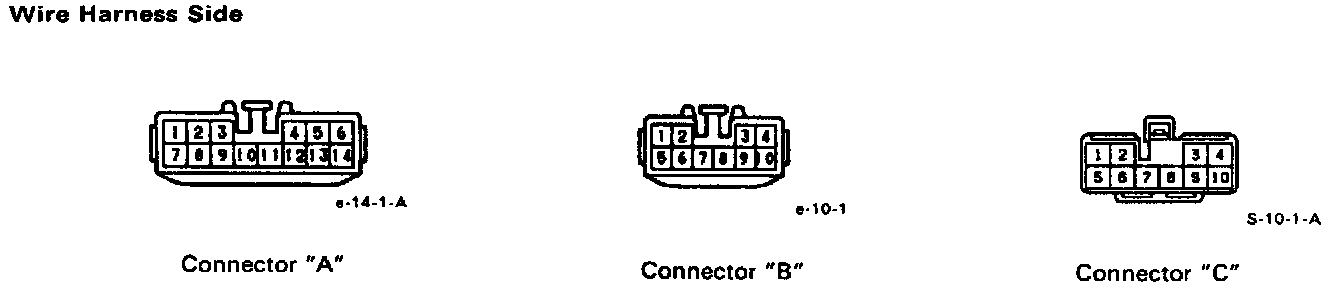

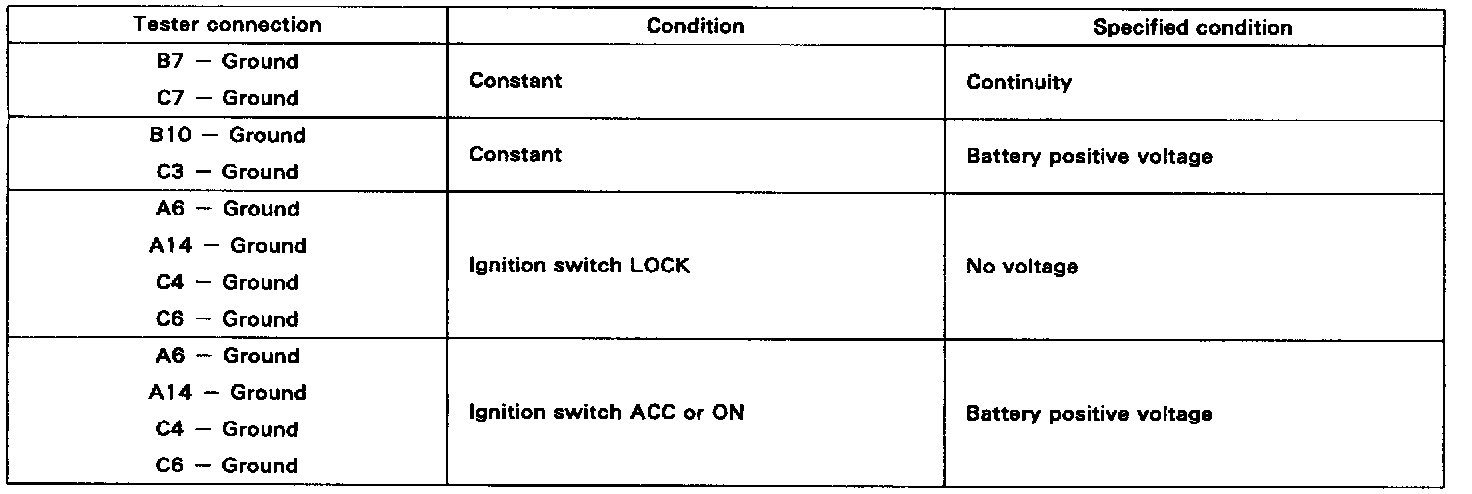

PIONEER
If circuit is not as specified, inspect the circuits connected to other parts.

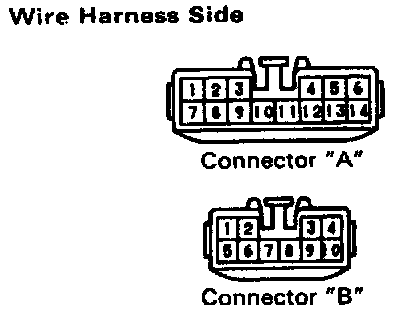

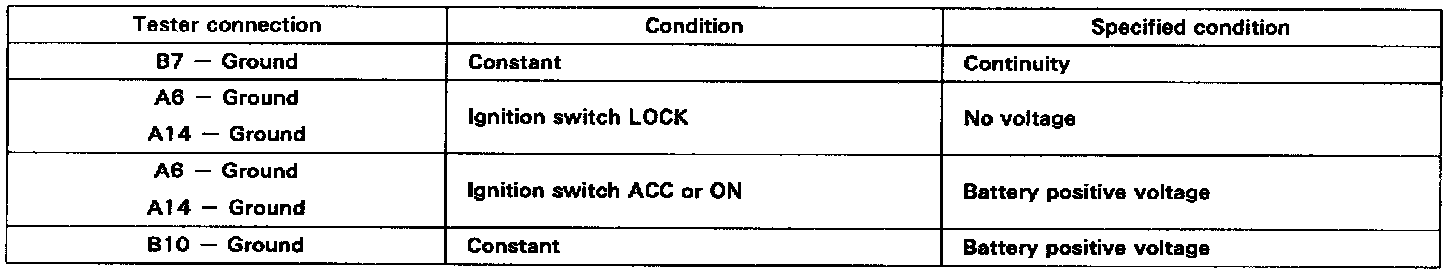

NAKAMICHI
If circuit is not as specified, inspect the circuits connected to other parts.
