CD Auto Changer

CD AUTO CHANGER INSPECTION

INSPECT CD AUTO CHANGER CIRCUIT

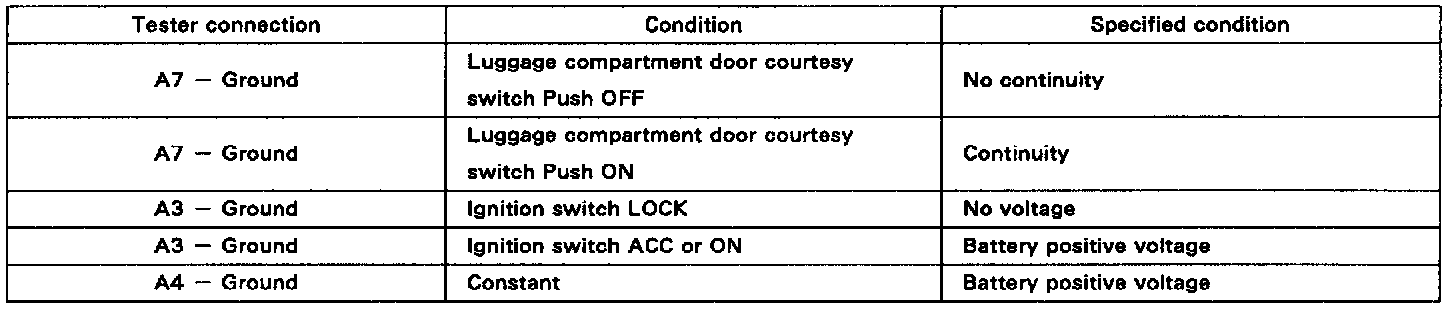

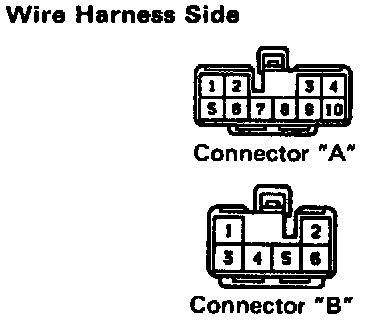

Disconnect the connectors from the CD auto changer and inspect the connector on the wire harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.

HINT:
^ Check the wire harness between the radio receiver assembly and the CD auto changer in accordance with the wiring diagrams.
^ Since the signals to and from the CDL+, CDL-, CDR+, CDR-, TXM+, TXM-, TXS+ and TXS- terminals are serial signals, they cannot ordinarily be measured with a tester.
