Radio, Stereo, and Compact Disc: Service and Repair





Tape Player/Head Cleaning
(a) Raise the cassette door with your finger.
Next, using a pencil or like object, push in the guide.

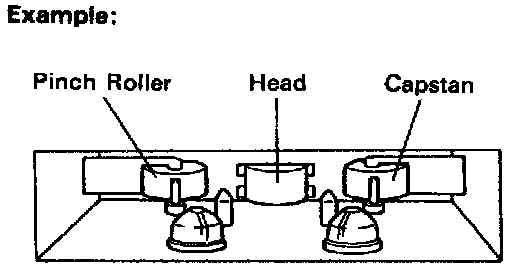

(b) Using a cleaning pen or cotton applicator soaked in cleaner, clean the head surface, pinch rollers and capstans.





CD Player/Disc Cleaning

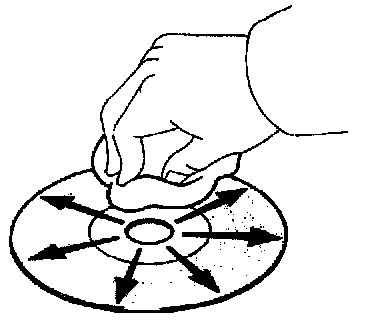

If the disc gets dirty. clean the disc by wiping the surfaces from the center to outside in the radial directions with a soft cloth.

NOTE: Do not use a conventional record cleaner or antistatic preservative.
