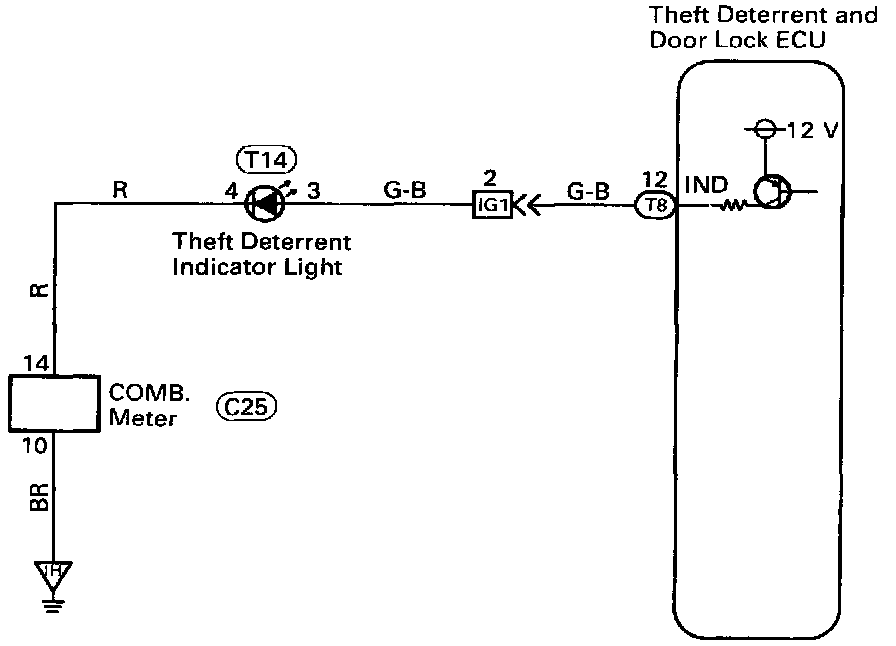

Indicator Light Circuit

CIRCUIT DESCRIPTION
When the theft deterrent system is preparing to set, this circuit light up the indicator light. When the system has been set, it continuously turns the indicator light on for 1 second and turns it off for 1 seconds, thus blinking the indicator light.
