Wireless Door Lock Buzzer Circuit

CIRCUIT DESCRIPTION
Using the wireless transmitter to lock the doors will sound the buzzer once and to unlock them will sound twice.

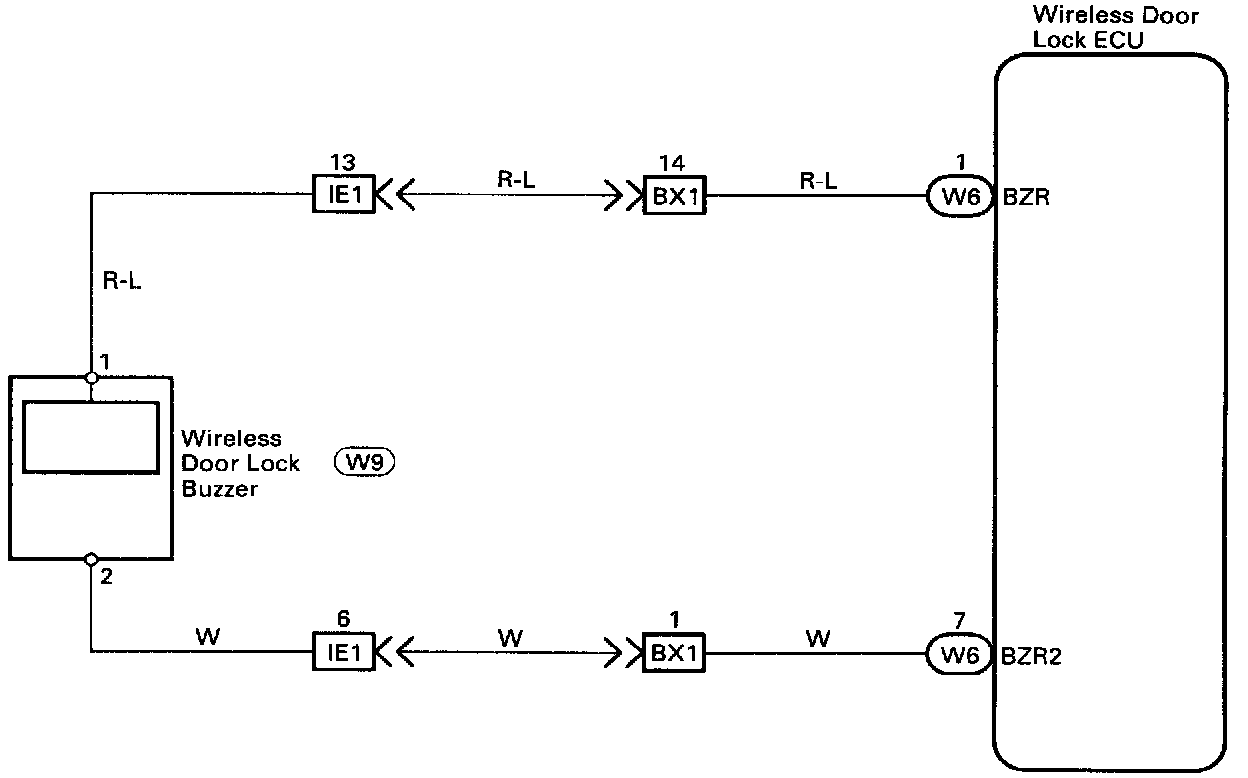

WIRING DIAGRAM

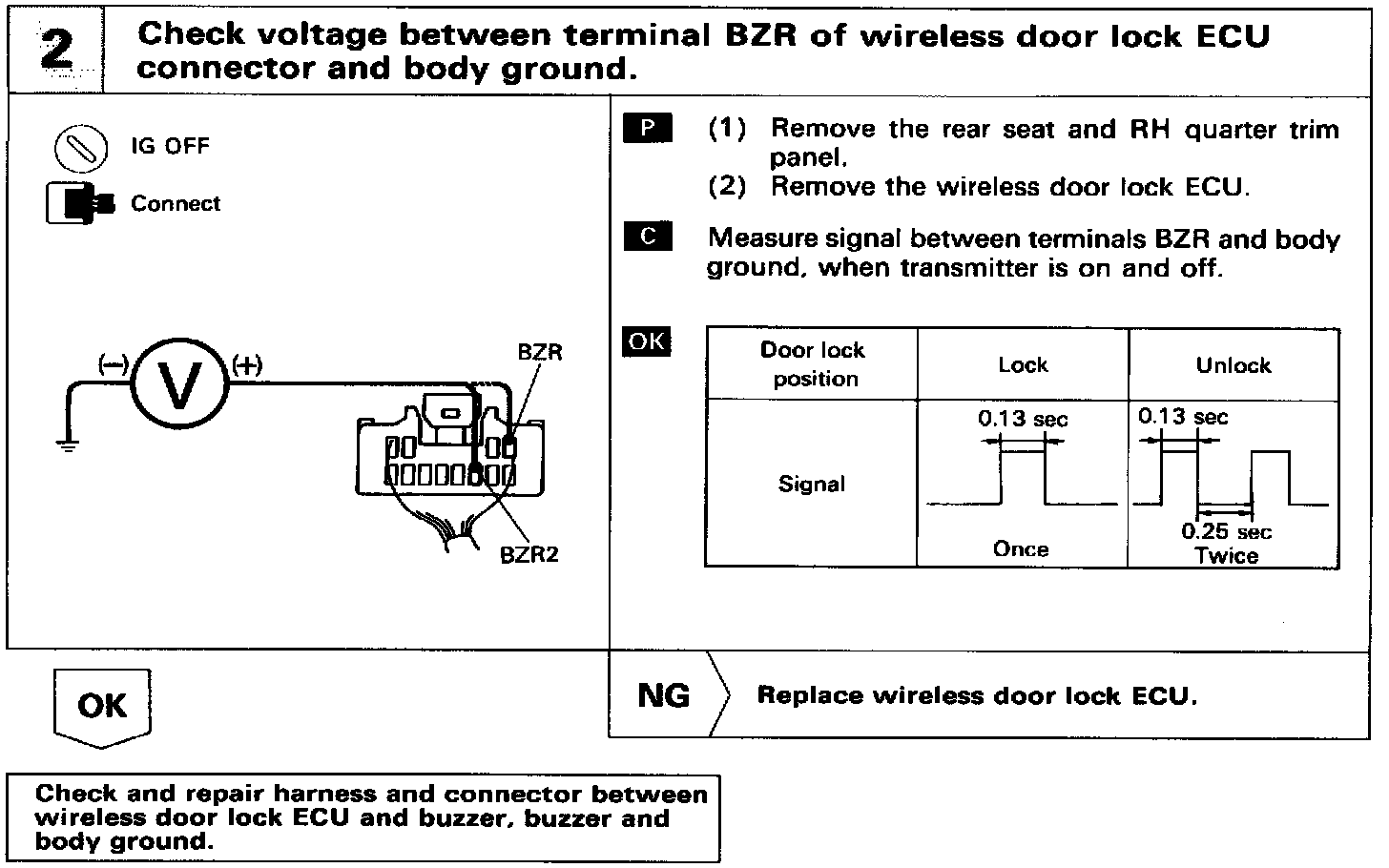

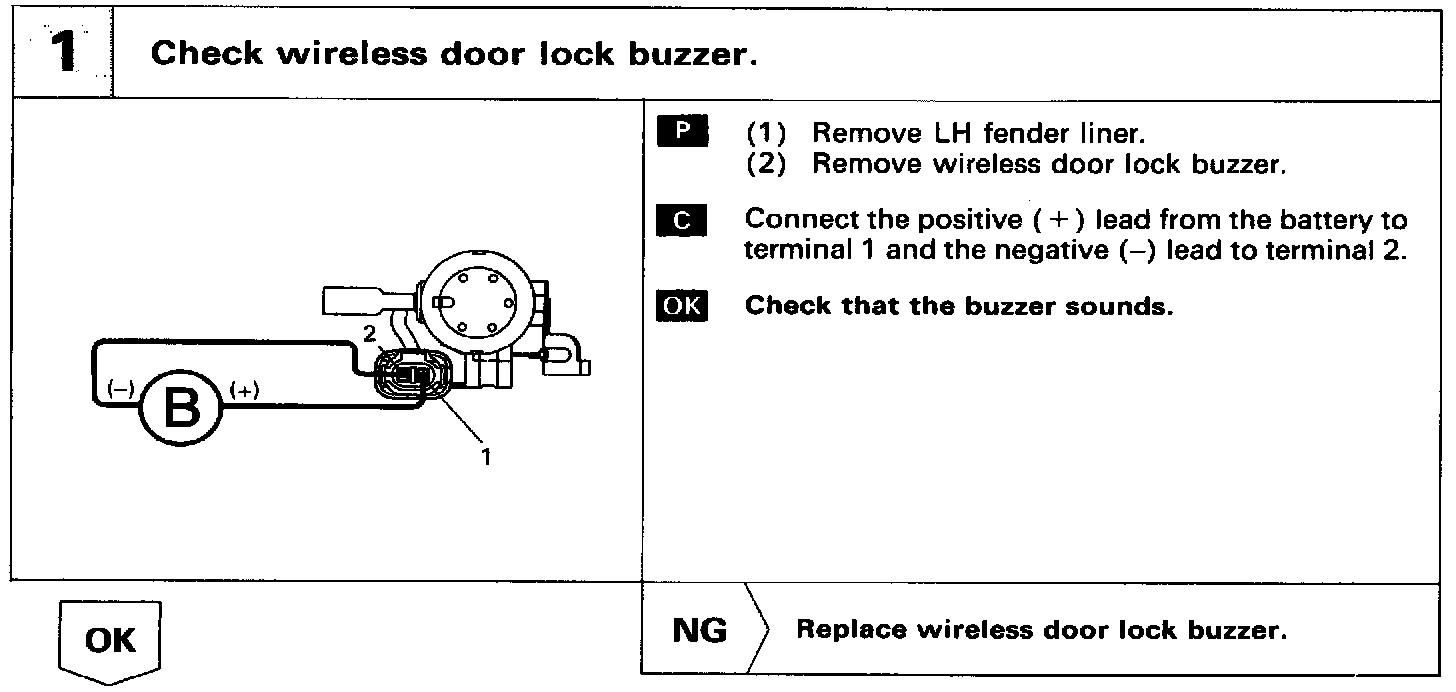

INSPECTION PROCEDURE
