Transmission Control System

DTC P1780 Park/Neutral Position Switch Malfunction

CIRCUIT DESCRIPTION
The park/neutral position switch detects the shift lever position and sends signals to the ECM. The ECM receives signals (NSW, 2 and L) from the park/neutral position switch. When the signal is not sent to the ECM from the park/neutral position switch, the ECM judges that the shift lever is in the D position.

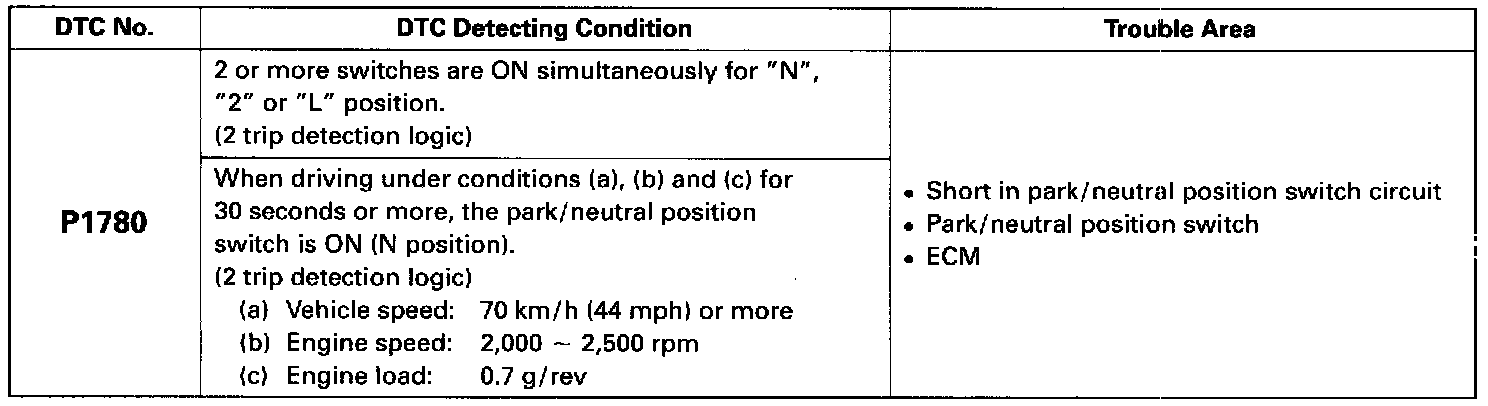

DETECTING CONDITION

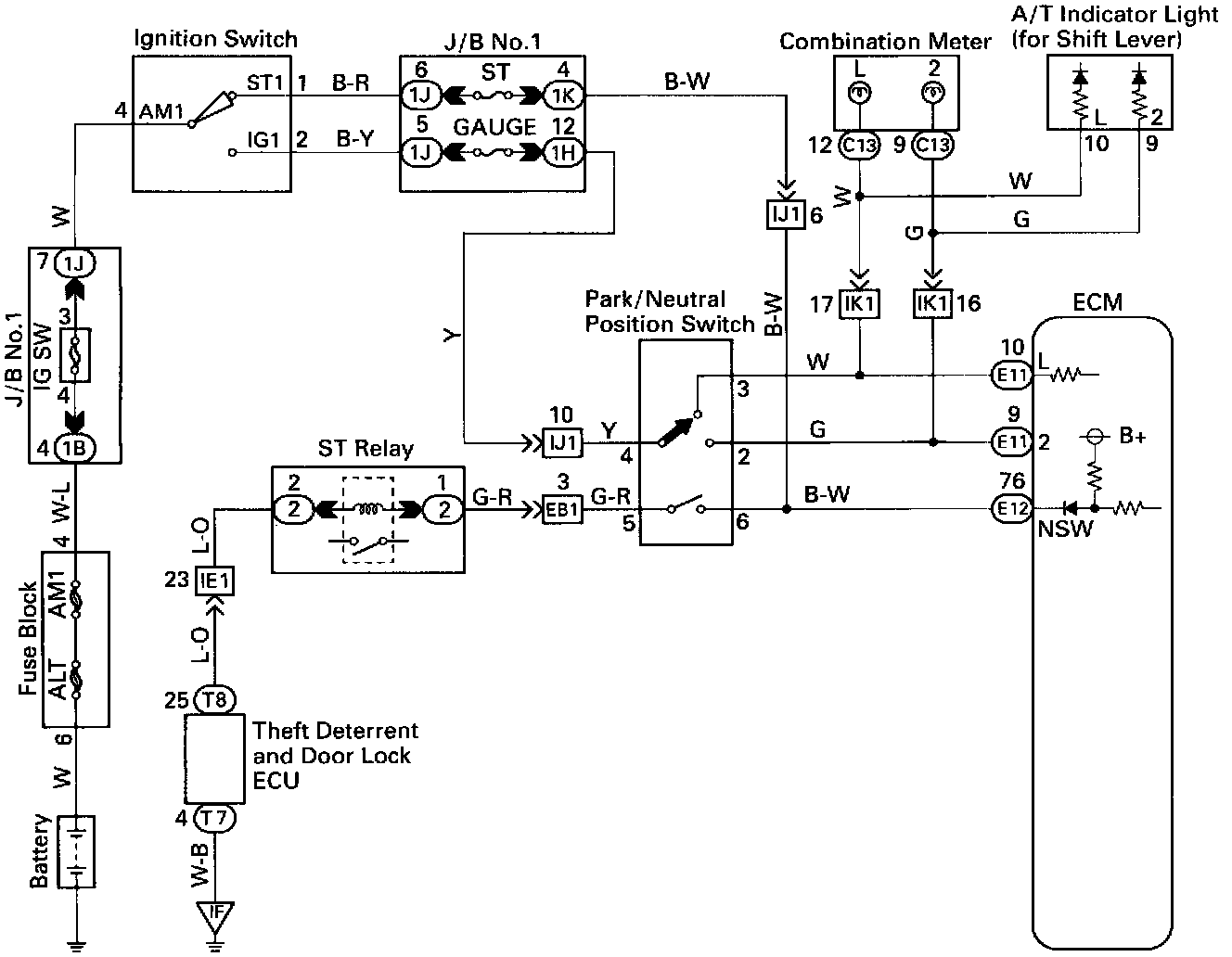

WIRING DIAGRAM

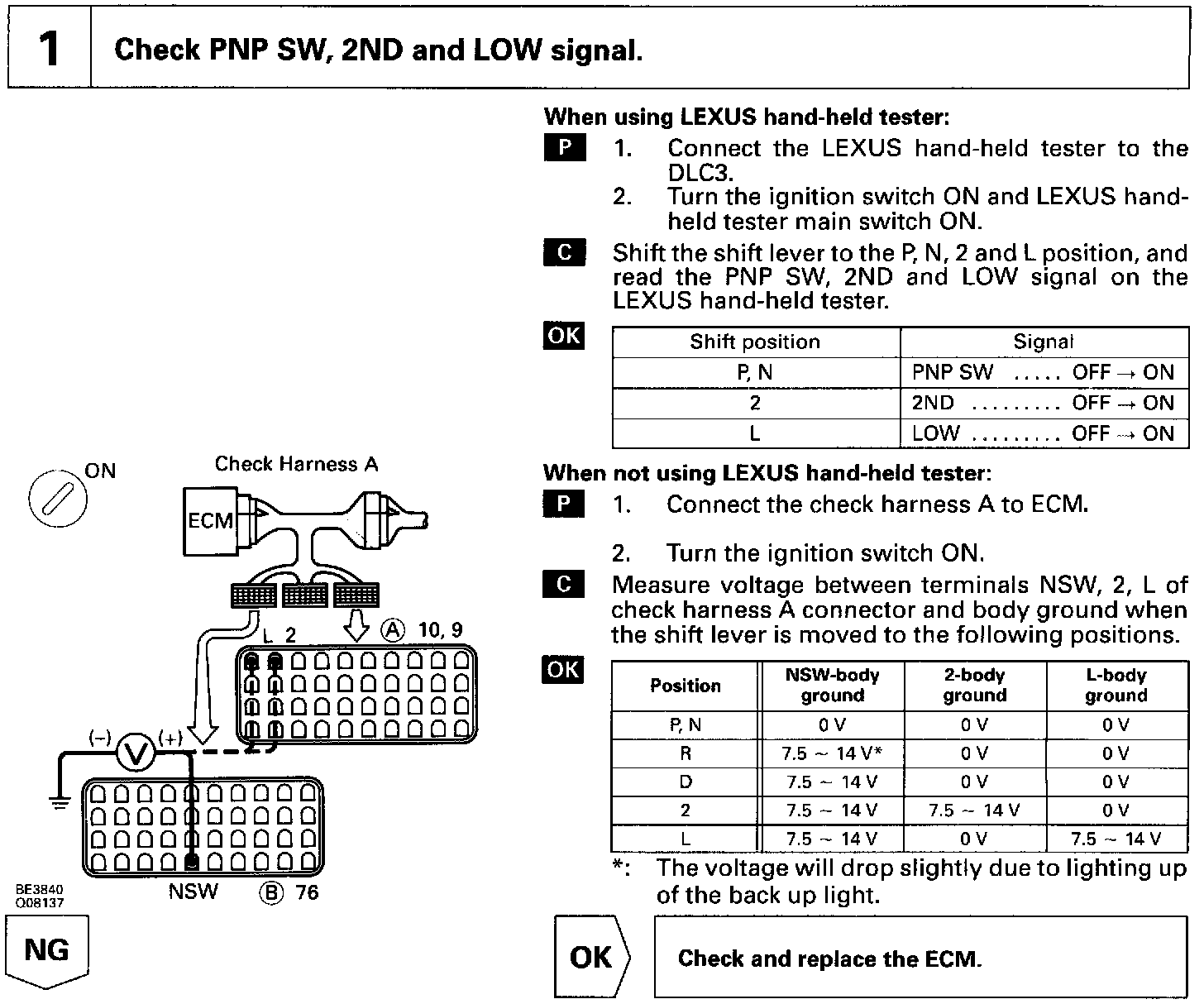

Step 1:

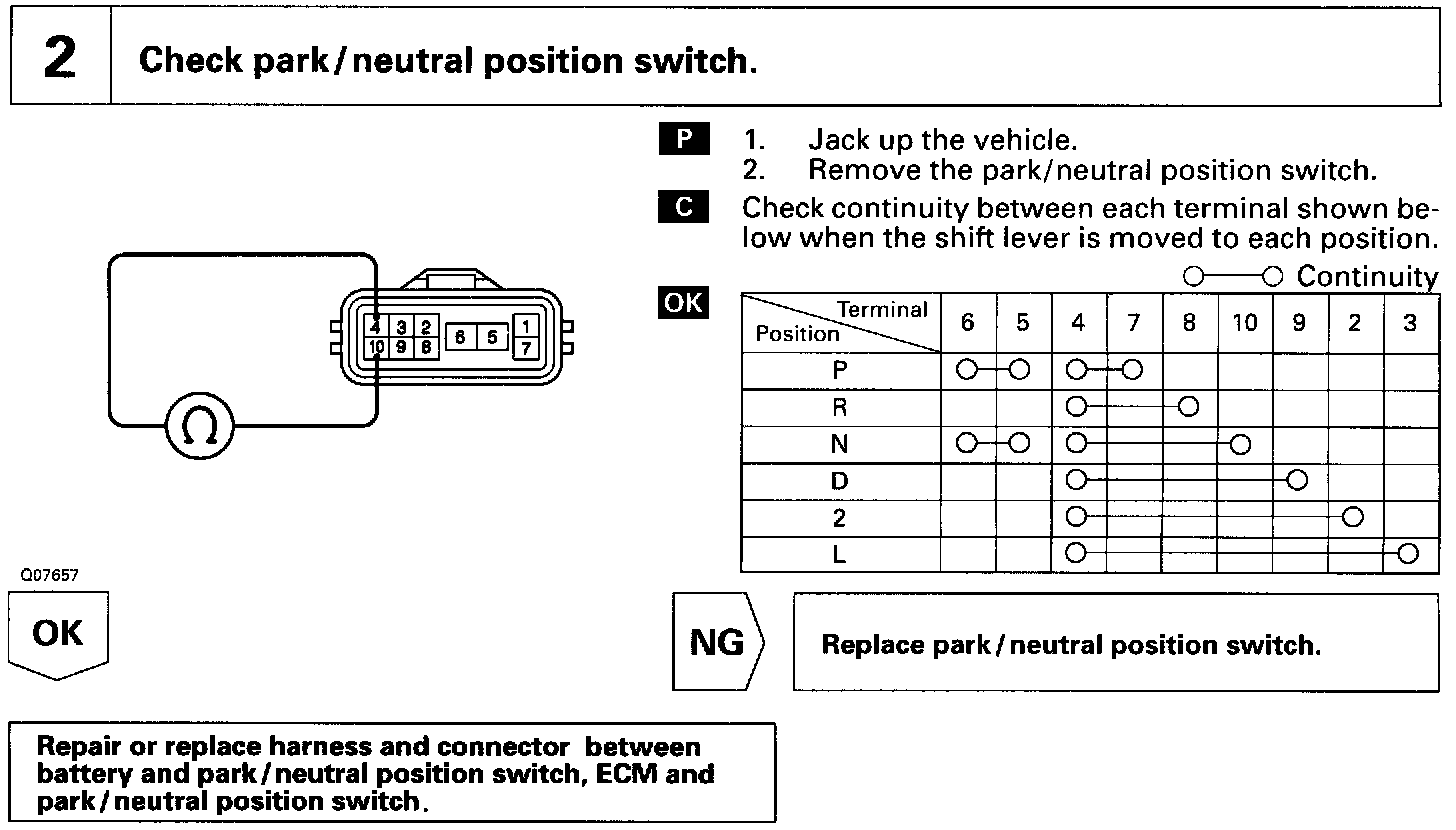

Step 2:

INSPECTION PROCEDURE
