P0441

DTC P0441 Evaporative Emission Control System Incorrect Purge Flow





CIRCUIT DESCRIPTION
To reduce HC emissions, evaporated fuel from the fuel tank is routed through the charcoal canister to the intake manifold for combustion in the cylinders.
The ECM changes the duty signal to the VSV for EVAP so that the intake quantity of HC emissions is appropriate for the driving conditions (engine load, engine speed, etc.) after the engine is warmed up.





DETECTING CONDITION

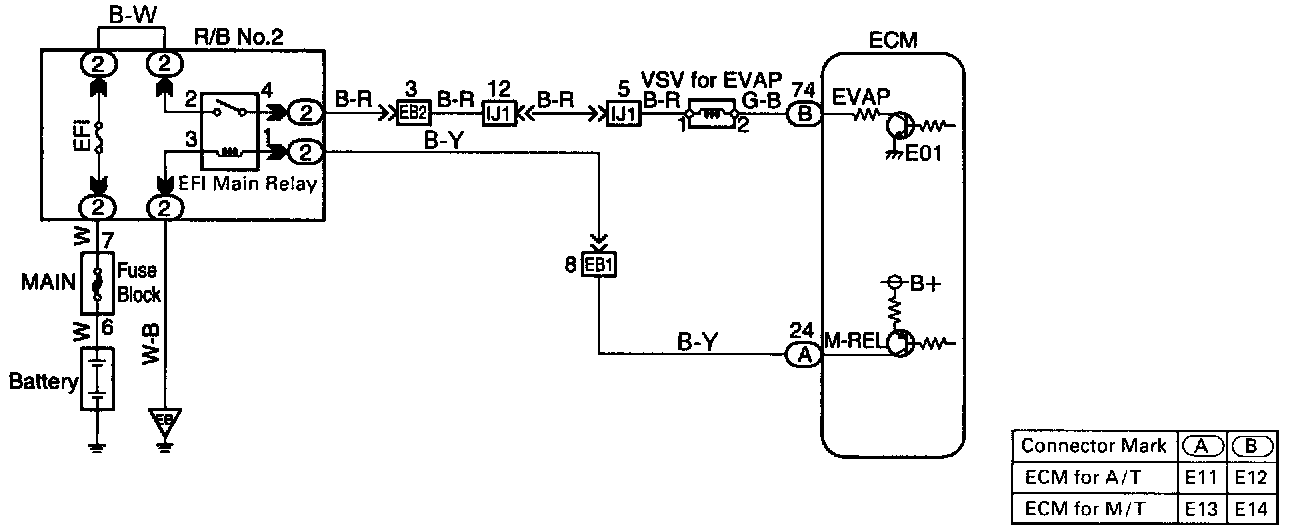

WIRING DIAGRAM

INSPECTION PROCEDURE

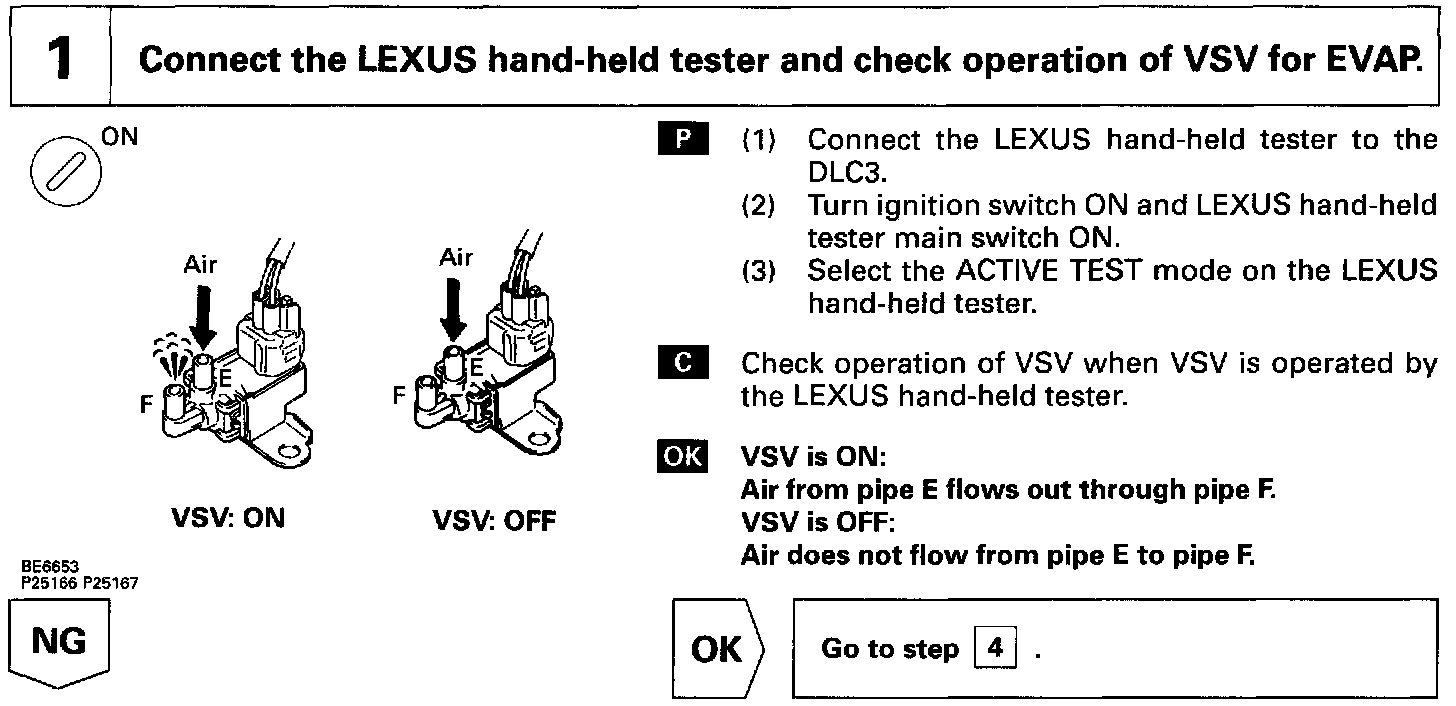

Step 1:

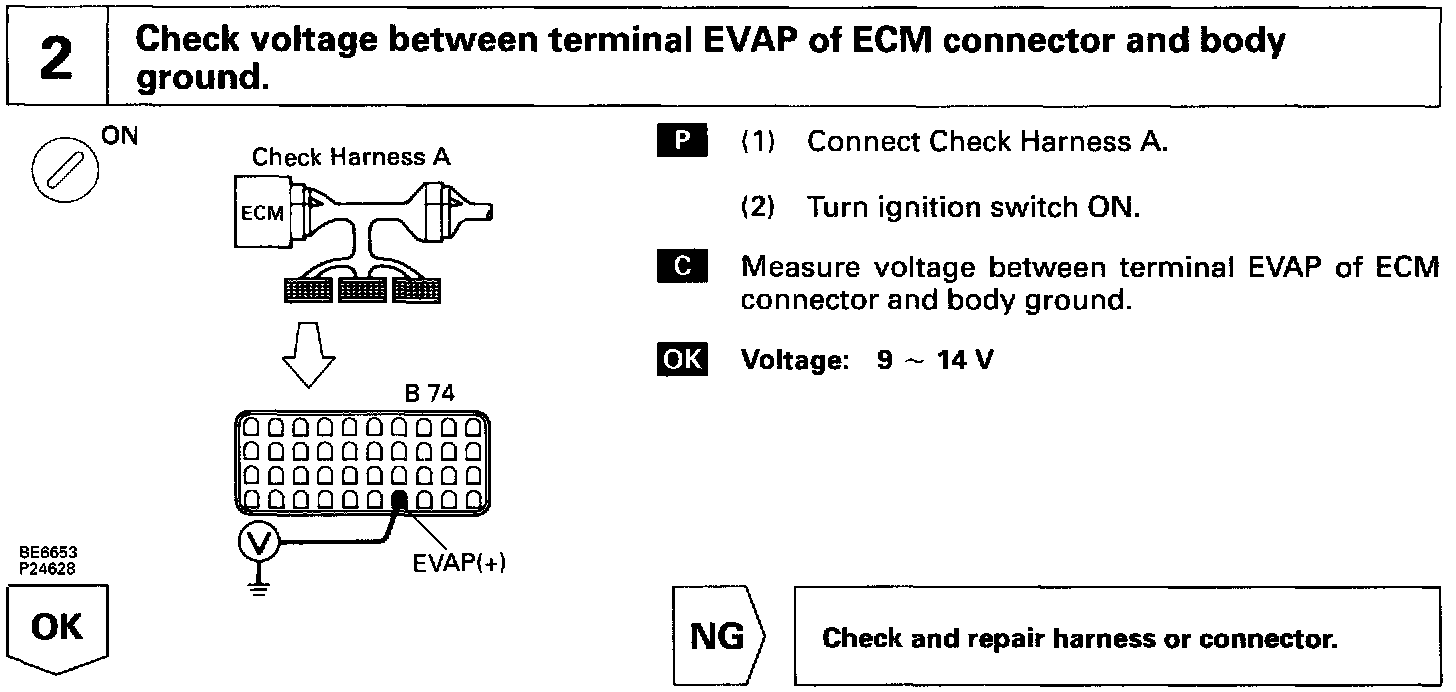

Step 2:

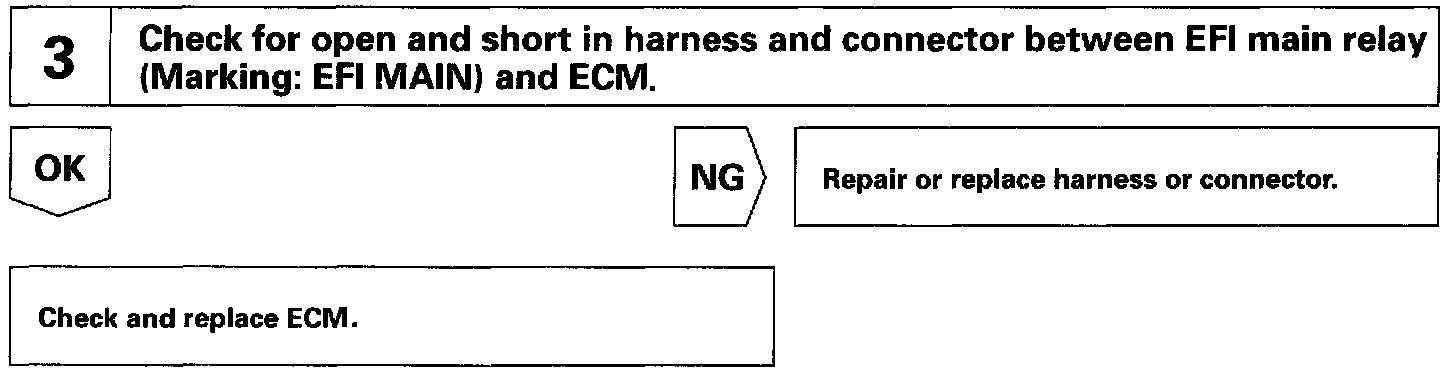

Step 3:

Step 4:

LEXUS hand-held tester

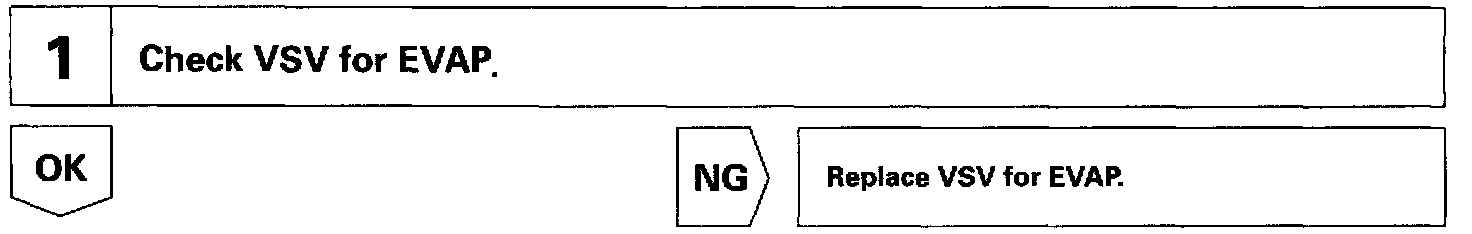

Step 1:

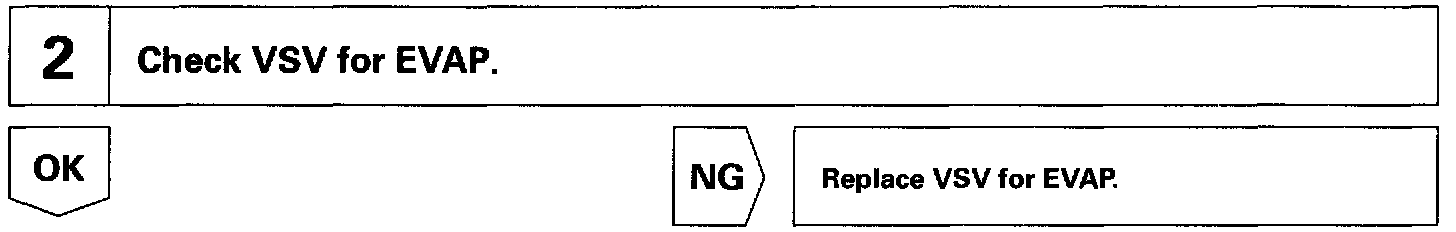

Step 2:

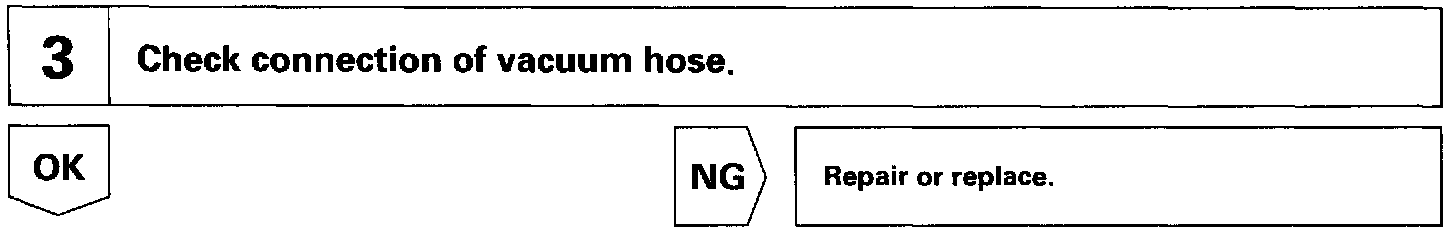

Step 3:

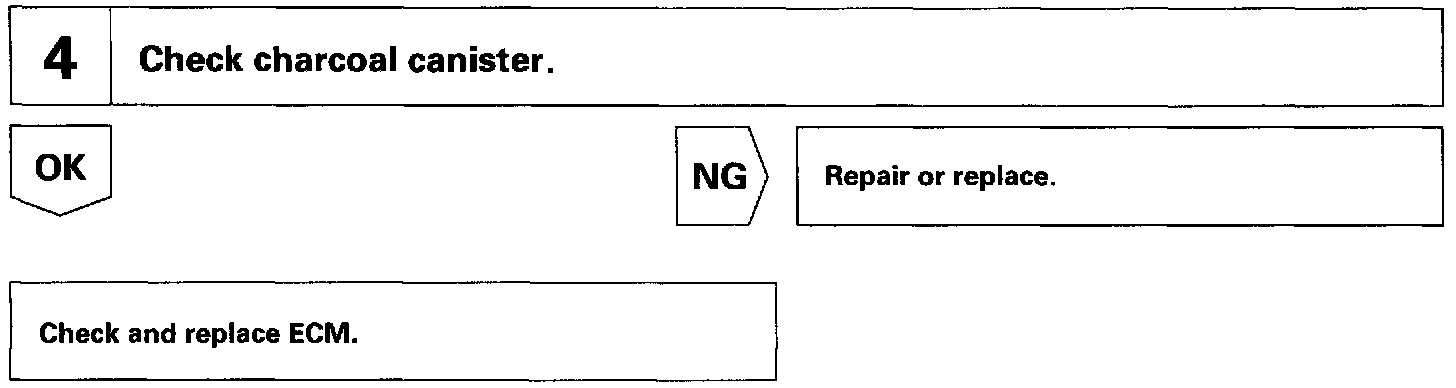

Step 4:

OBD II scan tool (excluding LEXUS hand-held tester)
