Air Mix Control Servomotor Circuit





CIRCUIT DESCRIPTION
The air mix servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

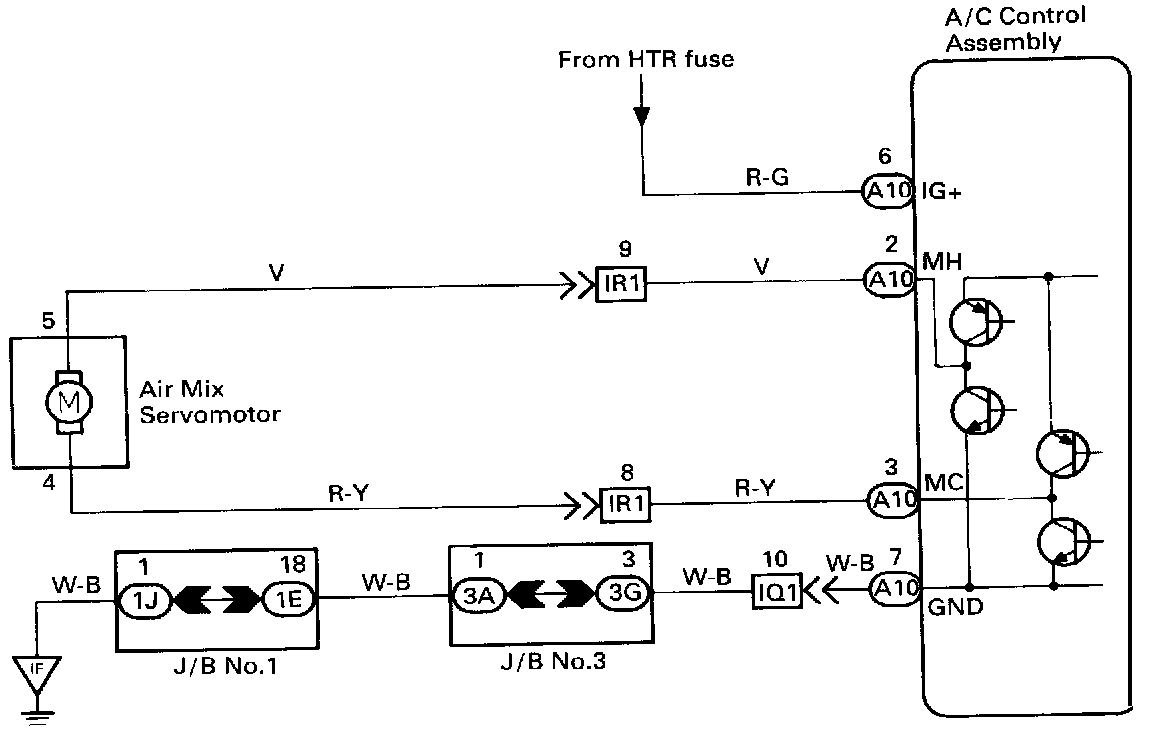

WIRING DIAGRAM

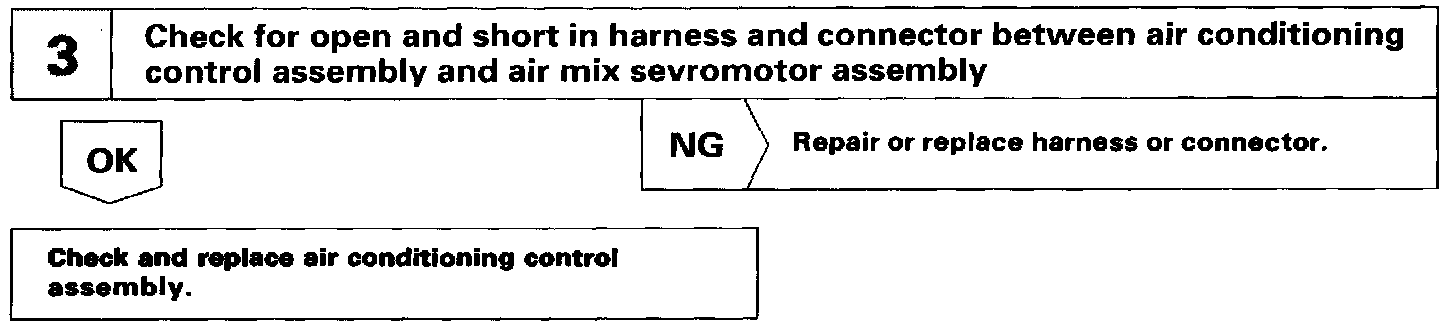

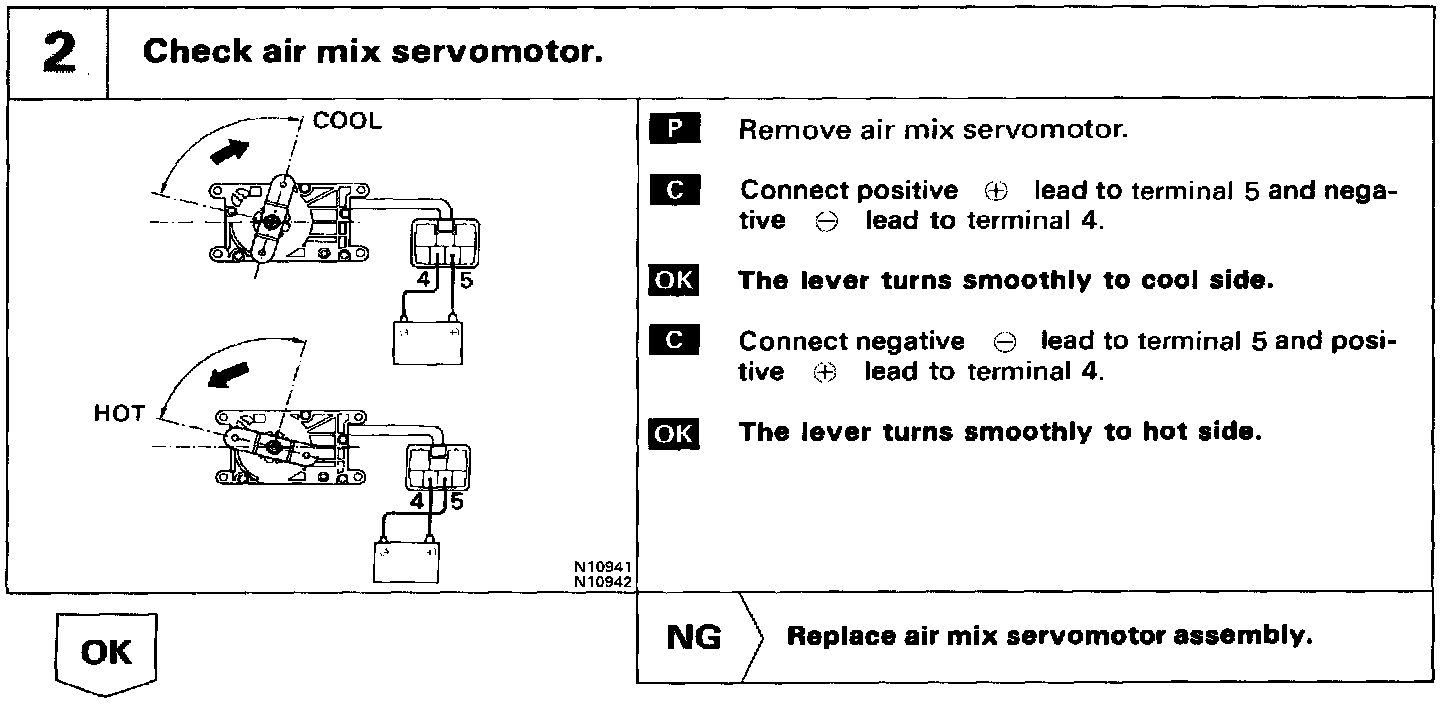

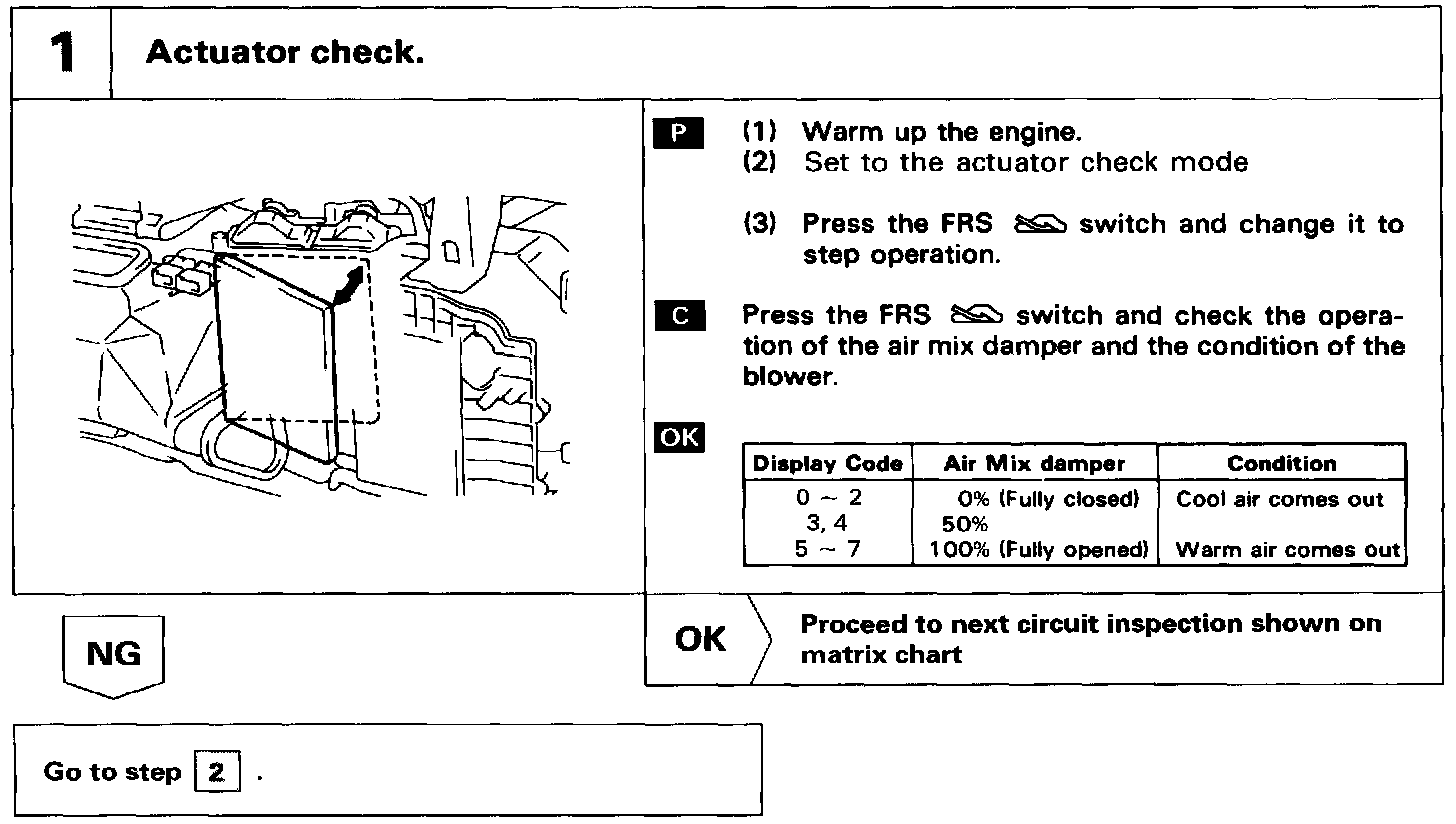

INSPECTION PROCEDURE
