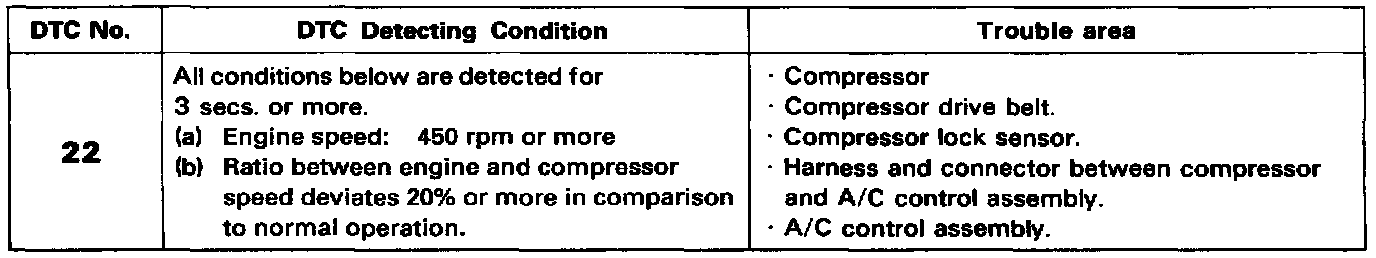

DTC 22

CIRCUIT DESCRIPTION
This sensor sends 1 pulse per engine revolution to the air conditioning control assembly. If the number ratio of the compressor speed, divided by the engine speed is smaller than a predetermined value, the air conditioning control assembly turns the compressor off, and the indicator flashes at about 1 second intervals.





WIRING DIAGRAM

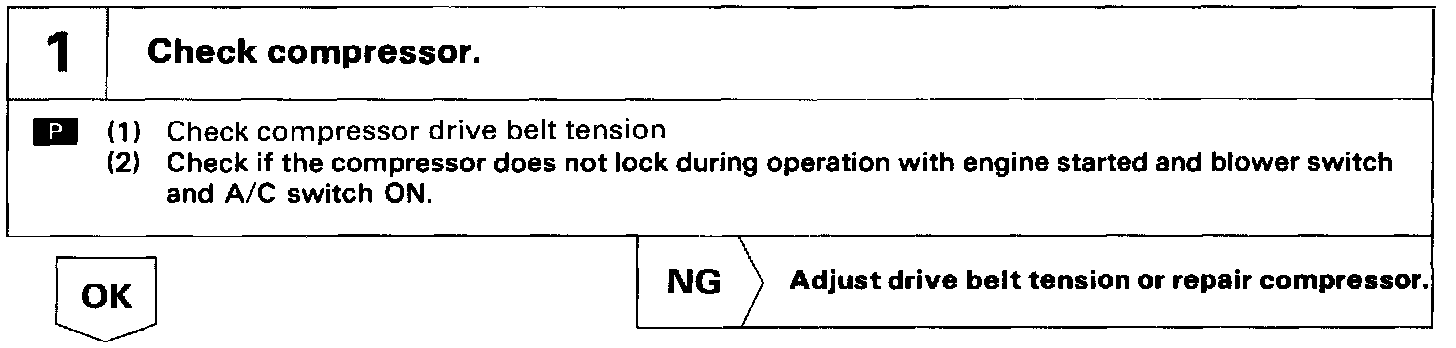

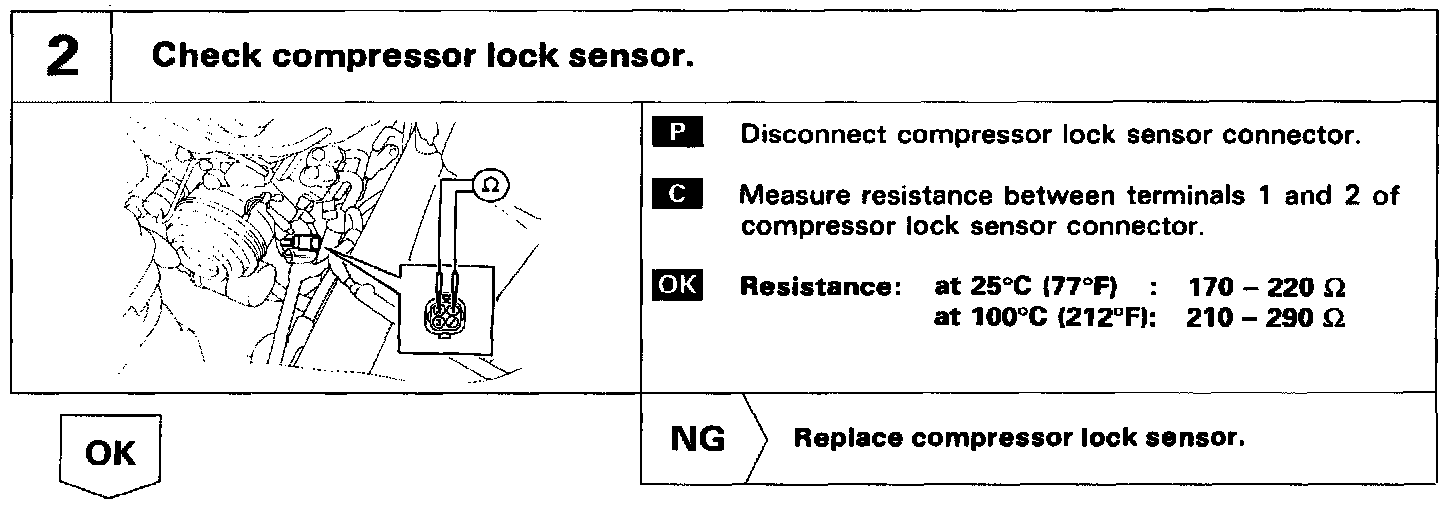

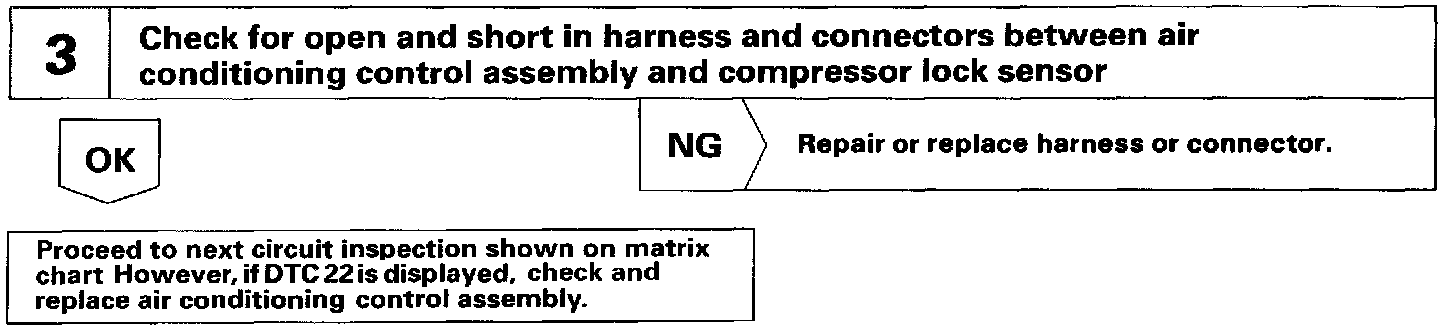

INSPECTION PROCEDURE
