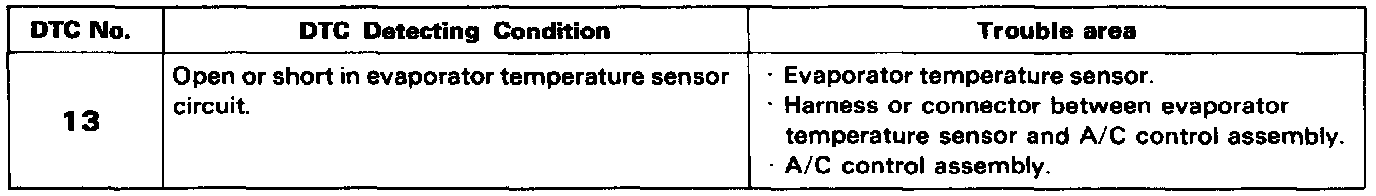

DTC 13







CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C control assembly.

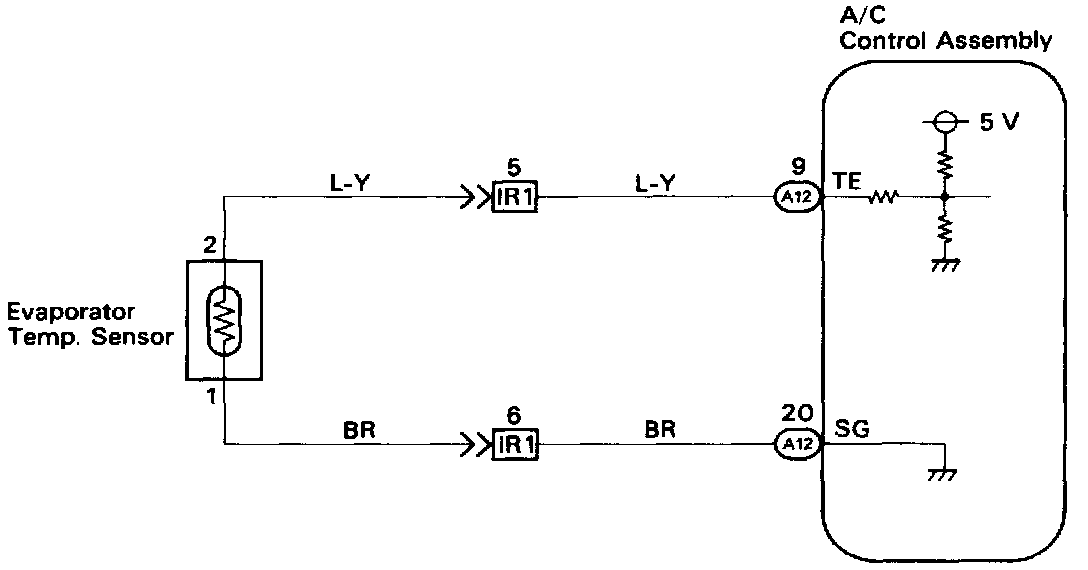

WIRING DIAGRAM

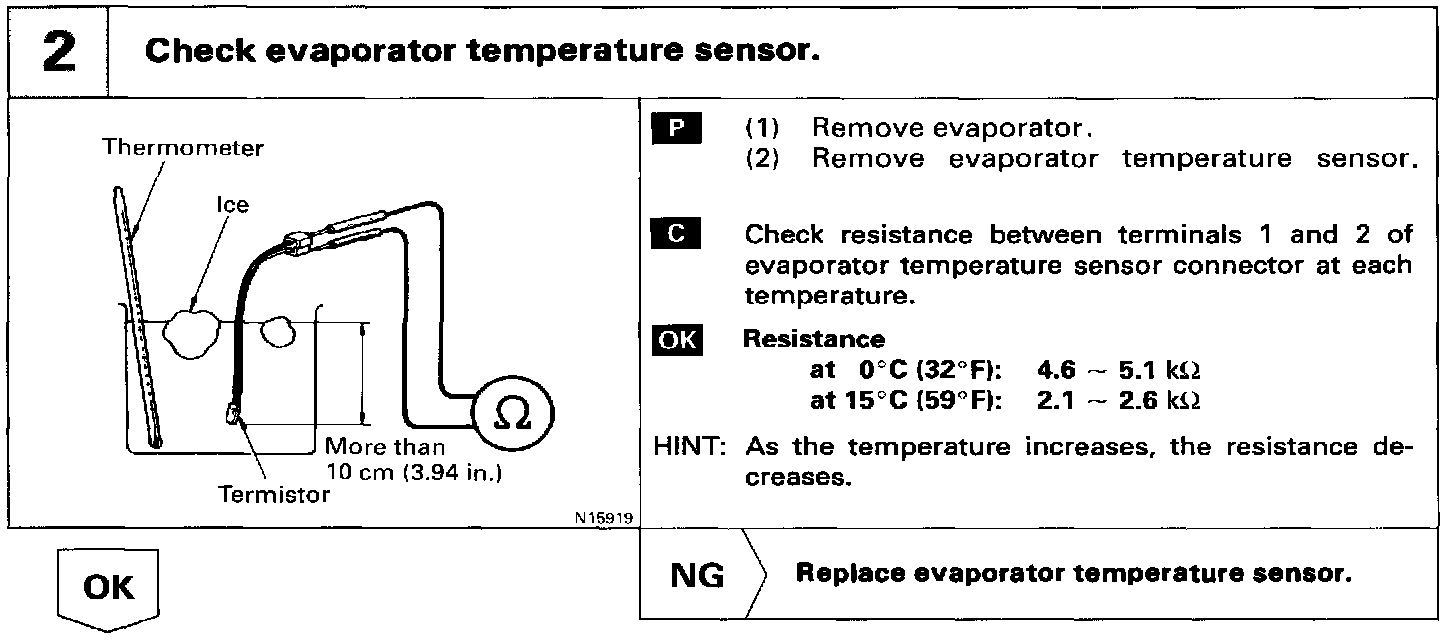

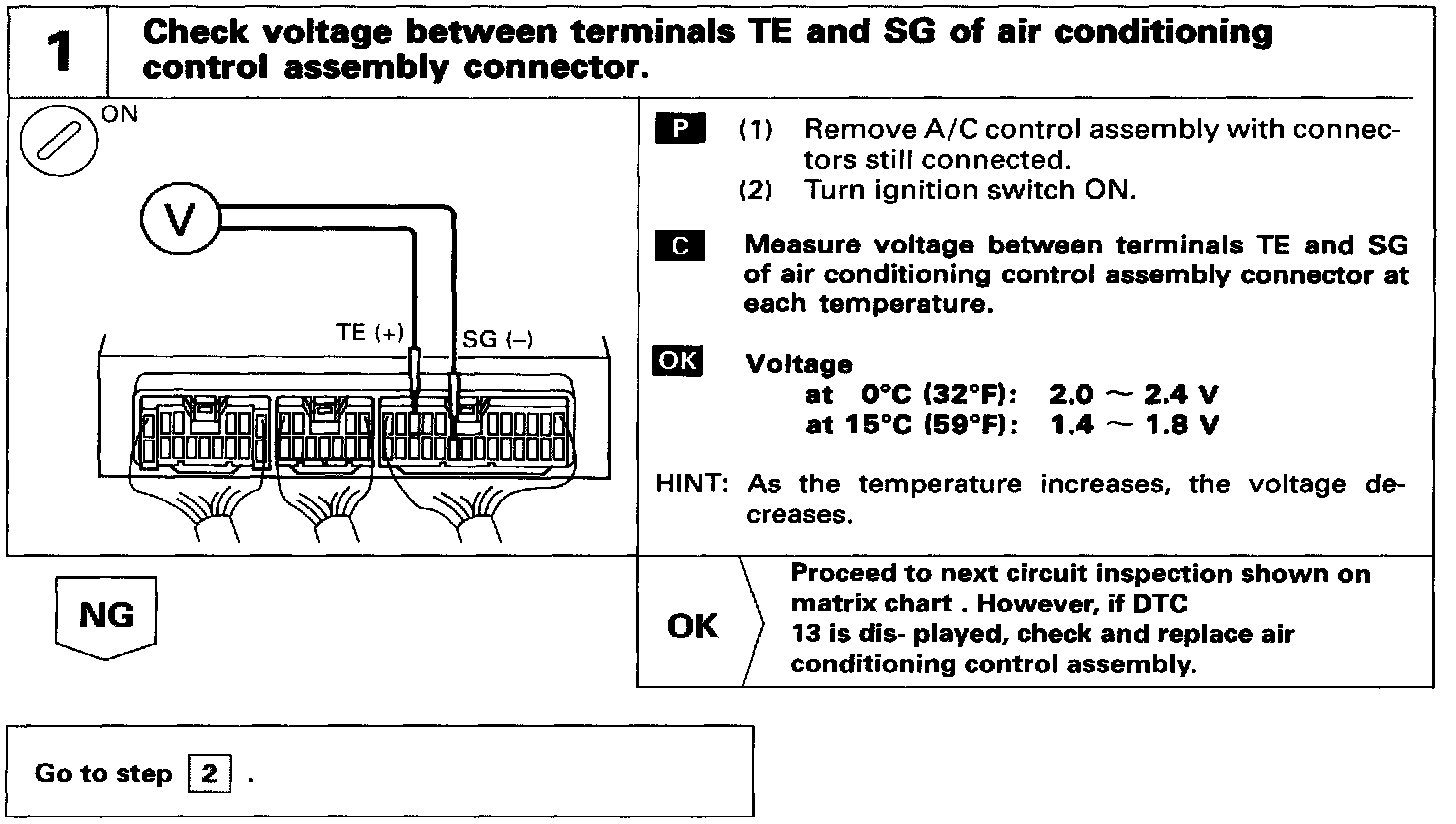

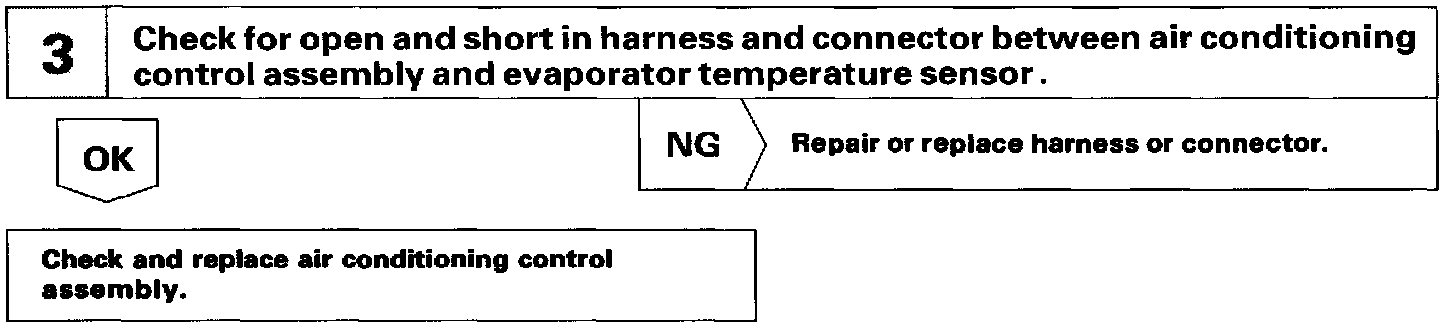

INSPECTION PROCEDURE
