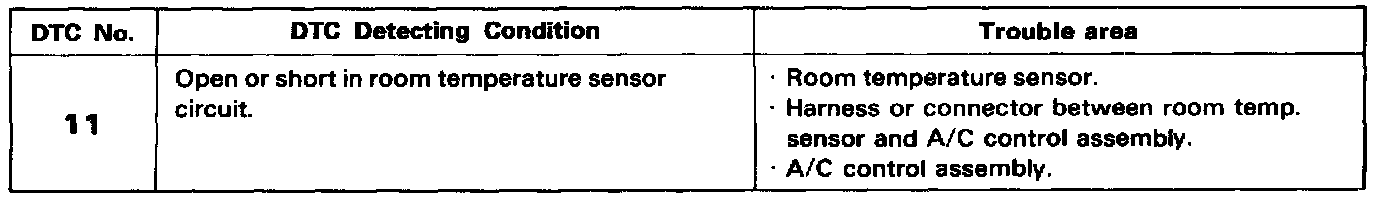

DTC 11






CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C control assembly.

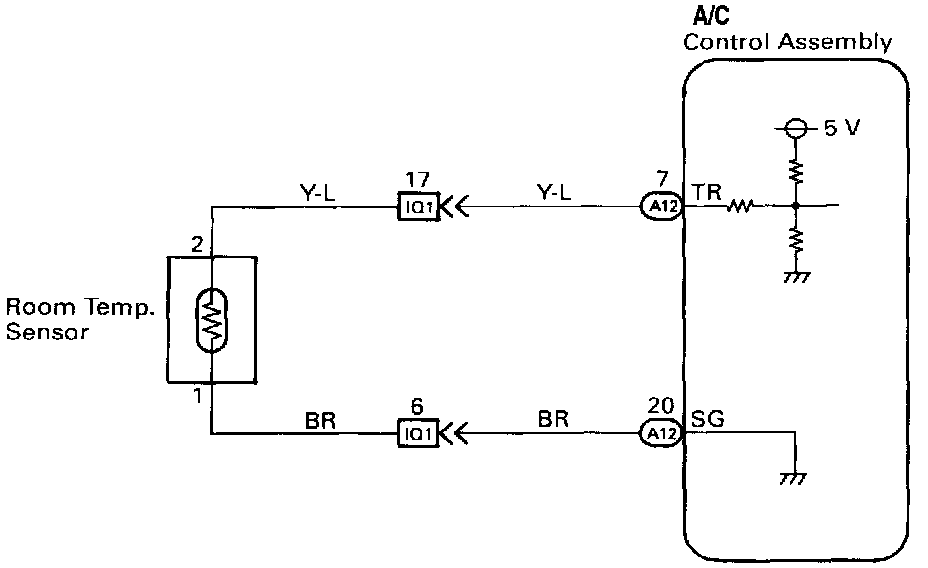

WIRING DIAGRAM

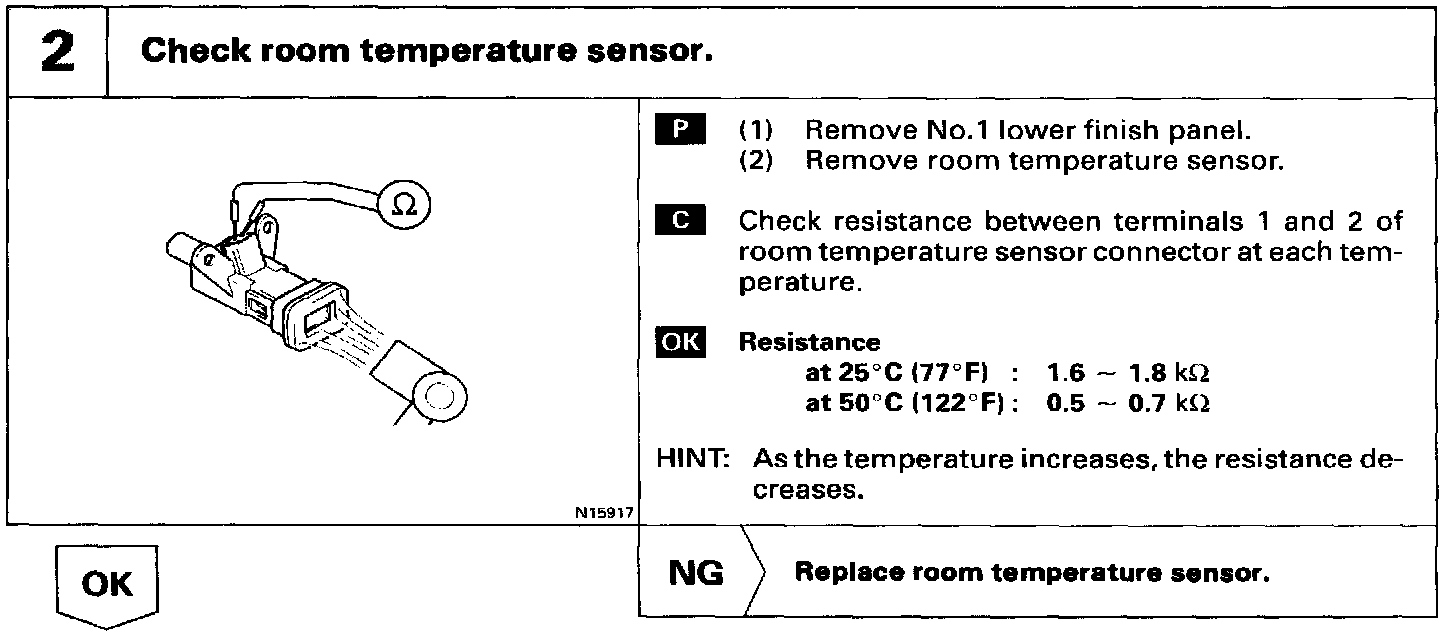

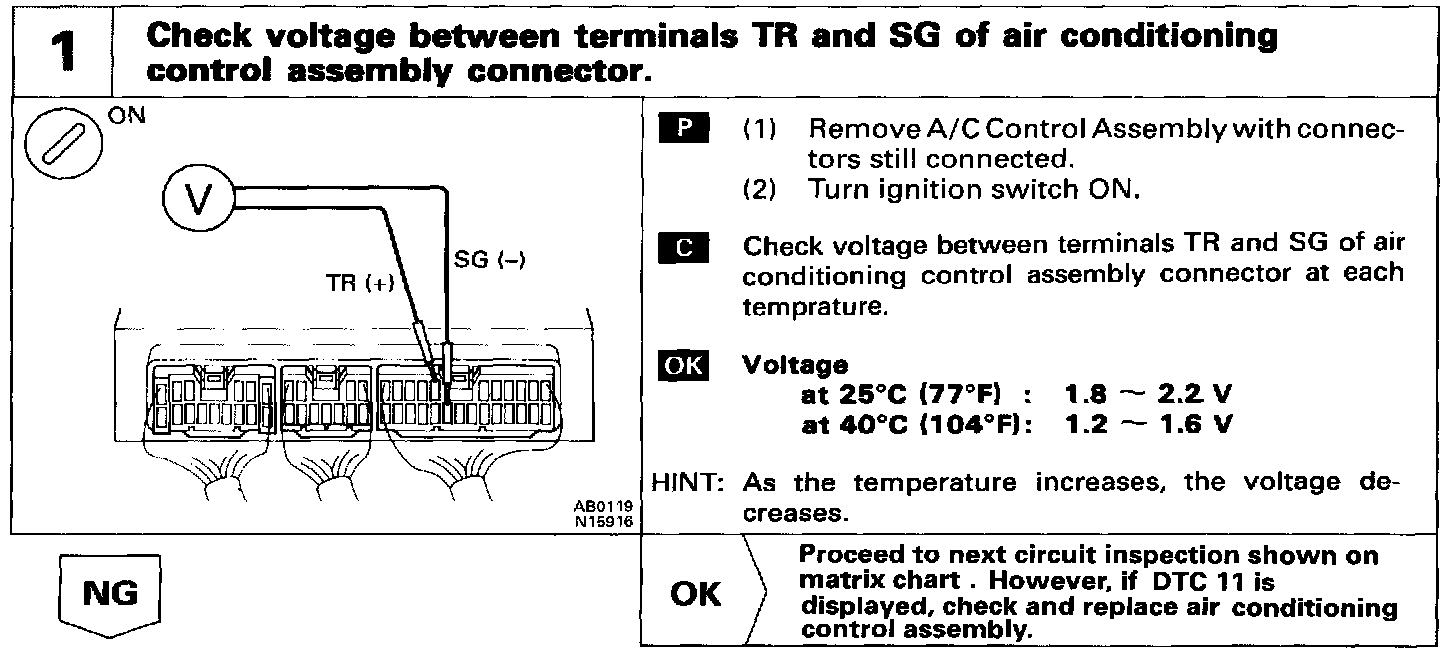

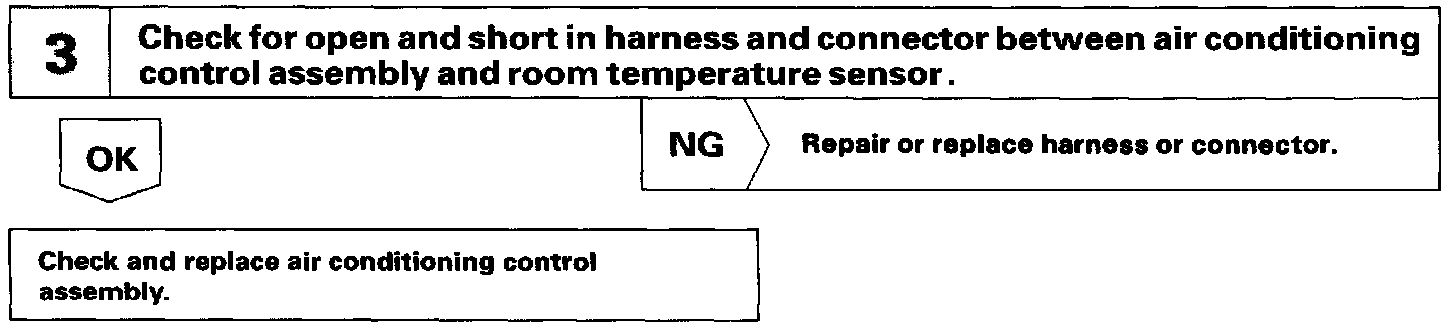

INSPECTION PROCEDURE
