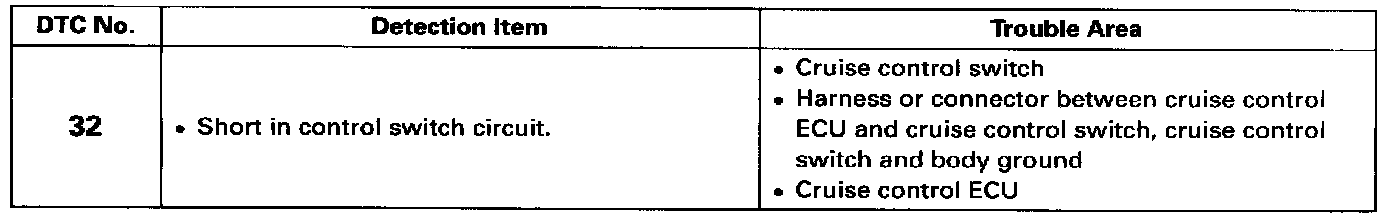

DTC 32





CIRCUIT DESCRIPTION
This Circuit carries the SET/COAST RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.





WIRING DIAGRAM

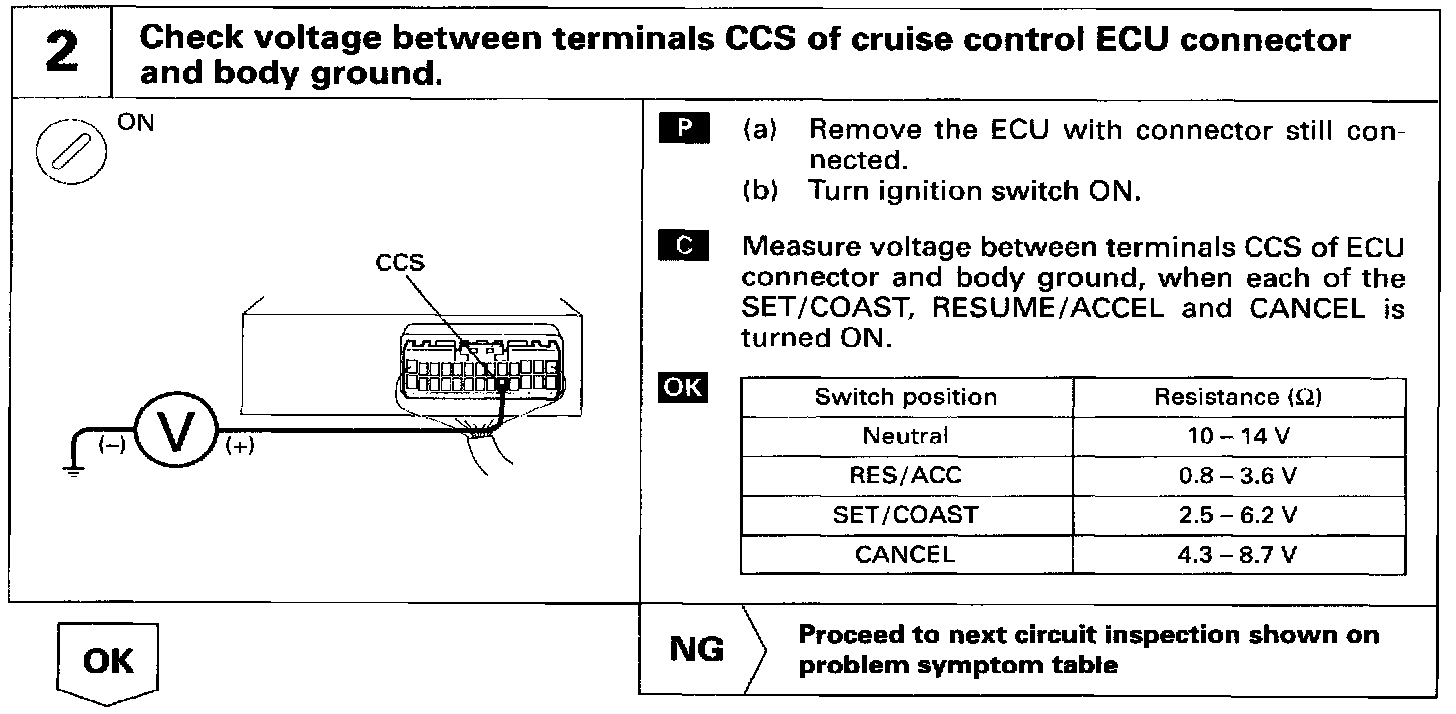

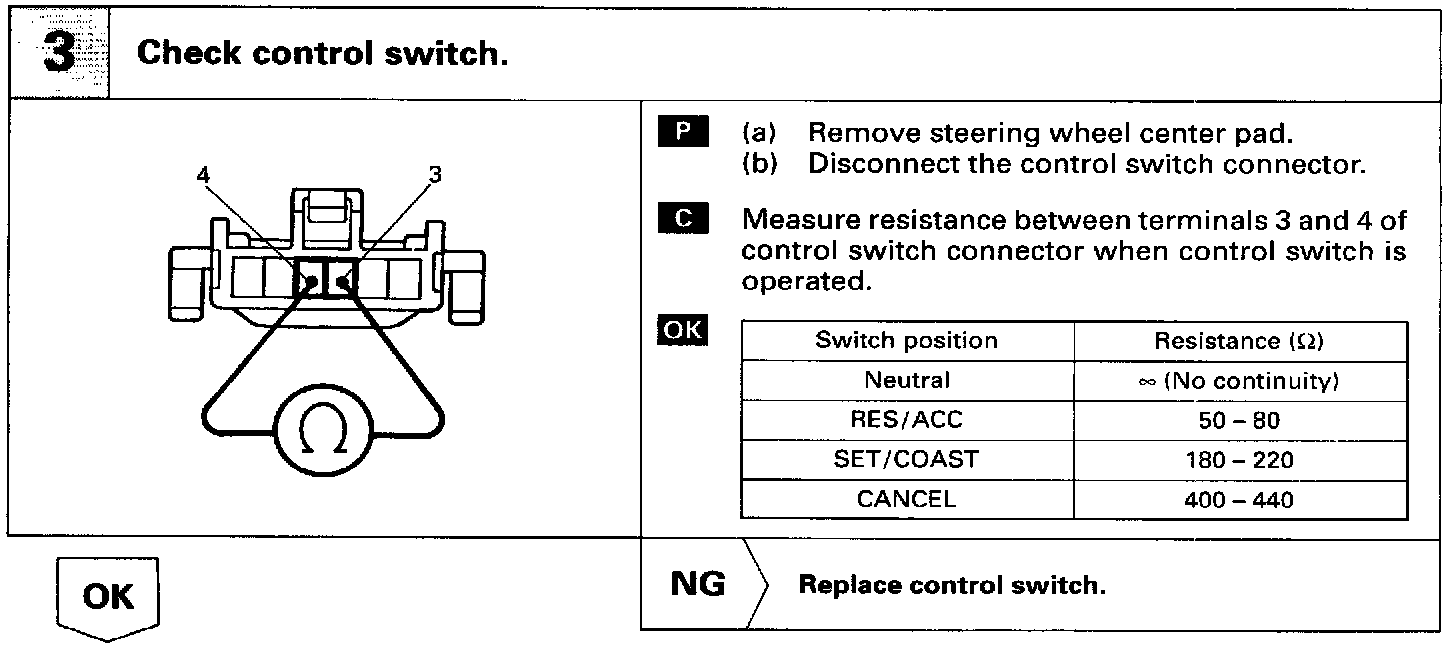

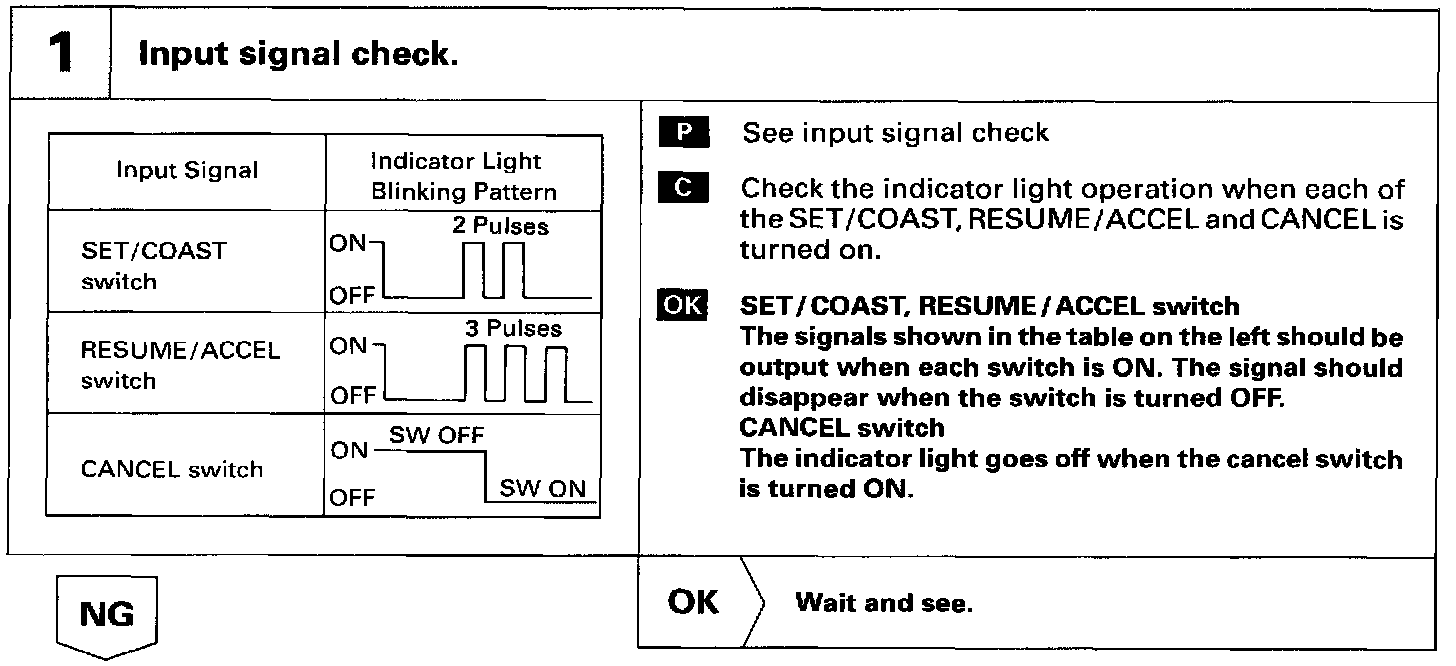

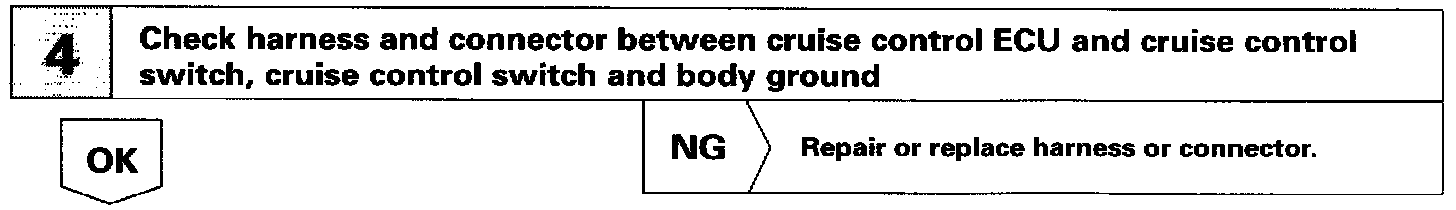

INSPECTION PROCEDURE
