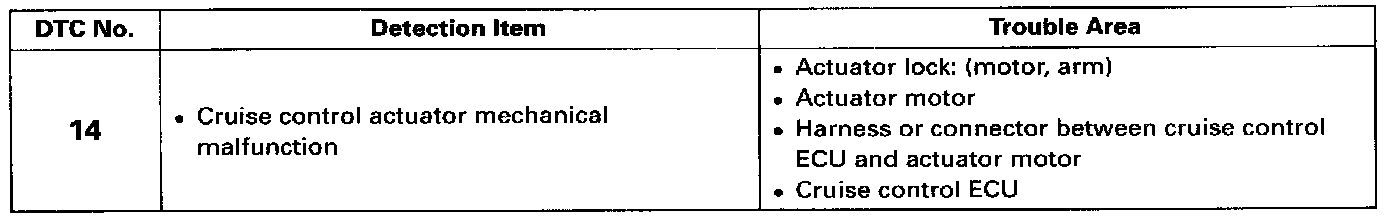

DTC 14

CIRCUIT DESCRIPTION
The circuit detects the rotation position of the actuator control plate and sends a signal to the ECU.

WIRING DIAGRAM

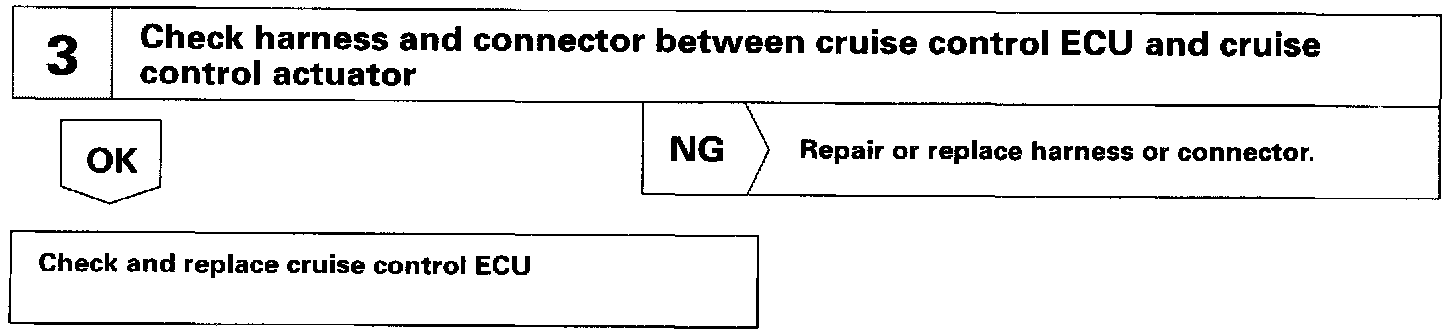

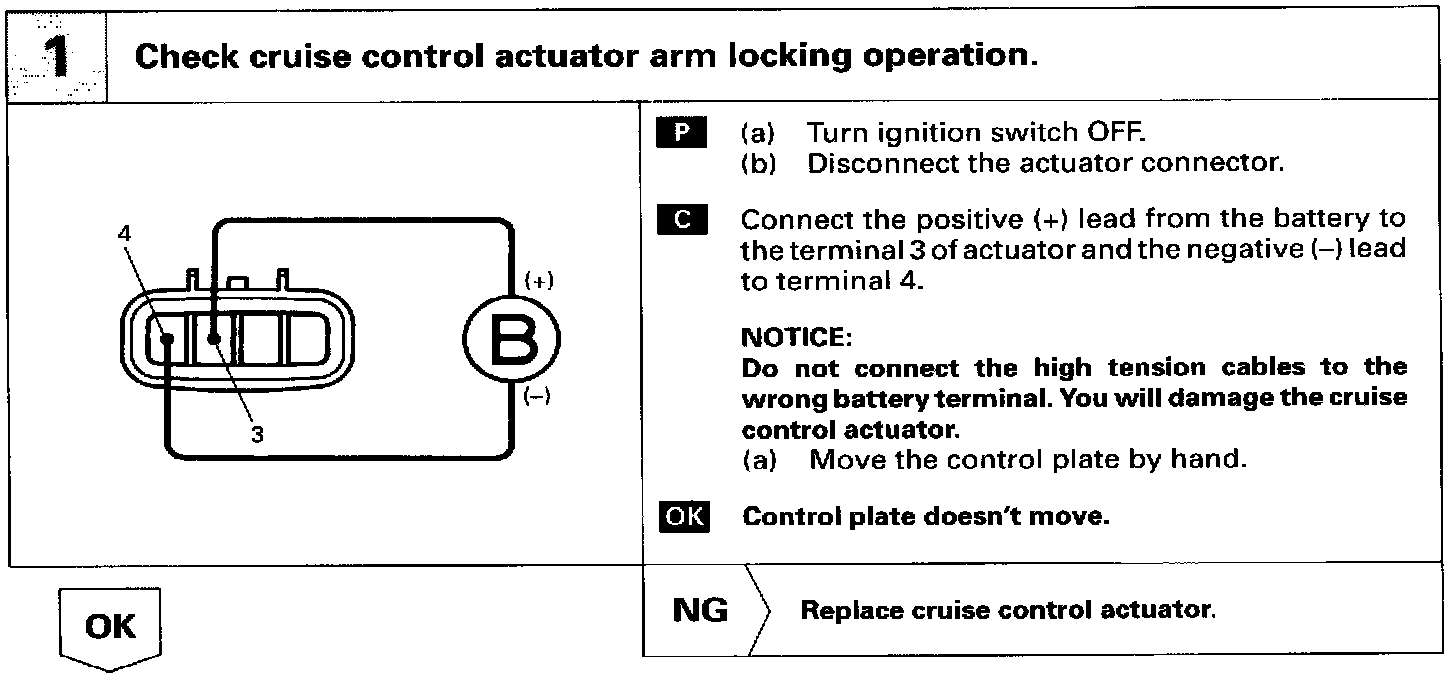

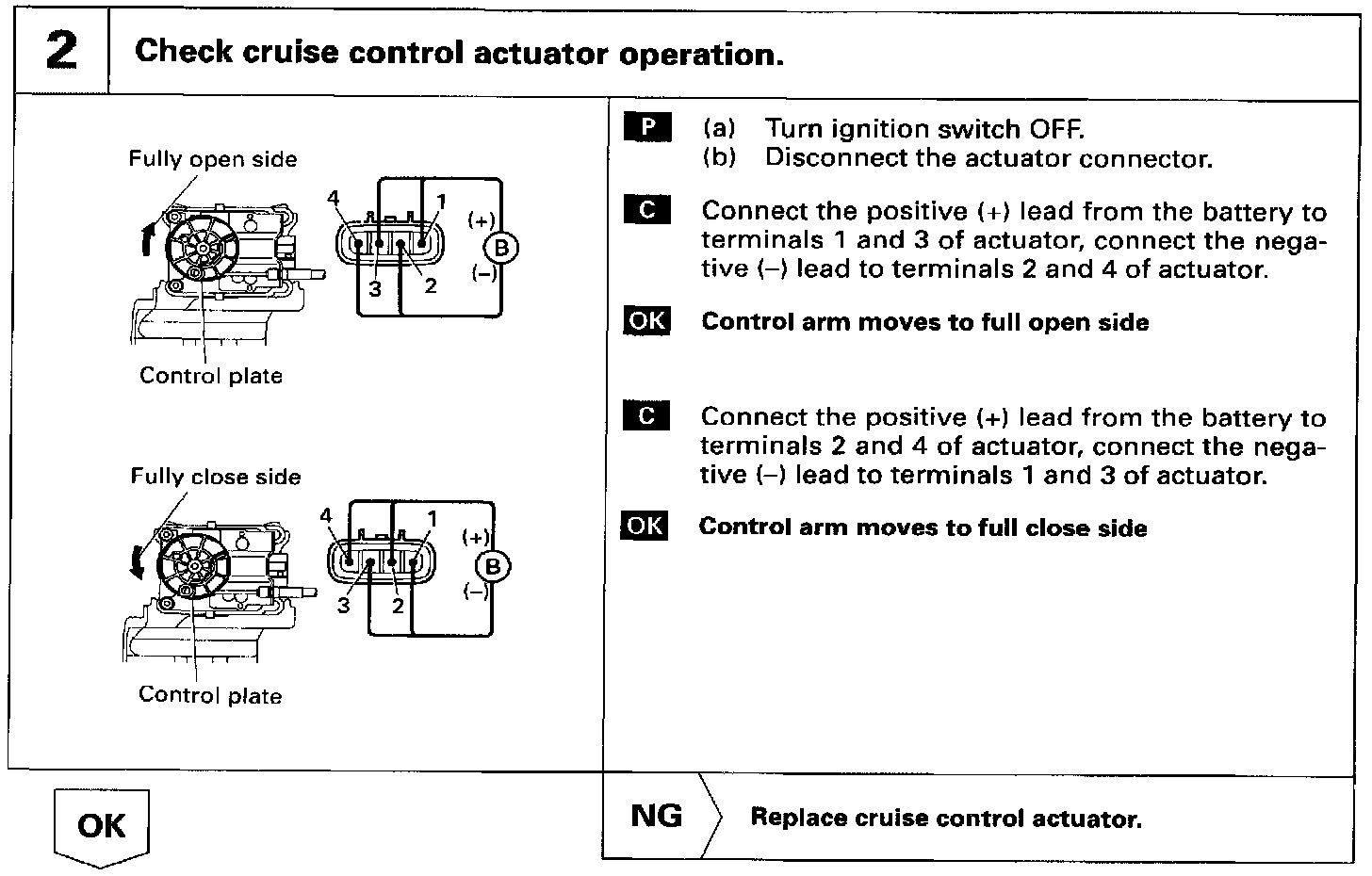

INSPECTION PROCEDURE
