DTC 54

Circuit Description:

CIRCUIT DESCRIPTION

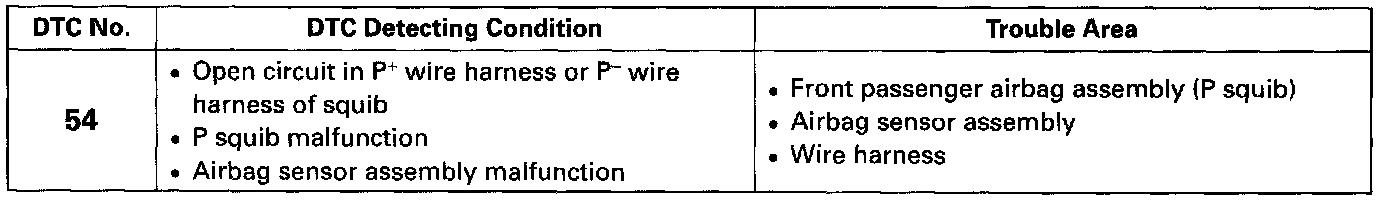

The P squib circuit consists of the center airbag sensor assembly and front passenger airbag assembly. It causes the airbag to deploy when the airbag deployment conditions are satisfied. For details of the function of each component, see FUNCTION OF COMPONENTS. DTC 54 is recorded when an open is detected in the P squib circuit.

Wiring Diagram:

WIRING DIAGRAM

INSPECTION PROCEDURE




1. Preparation.

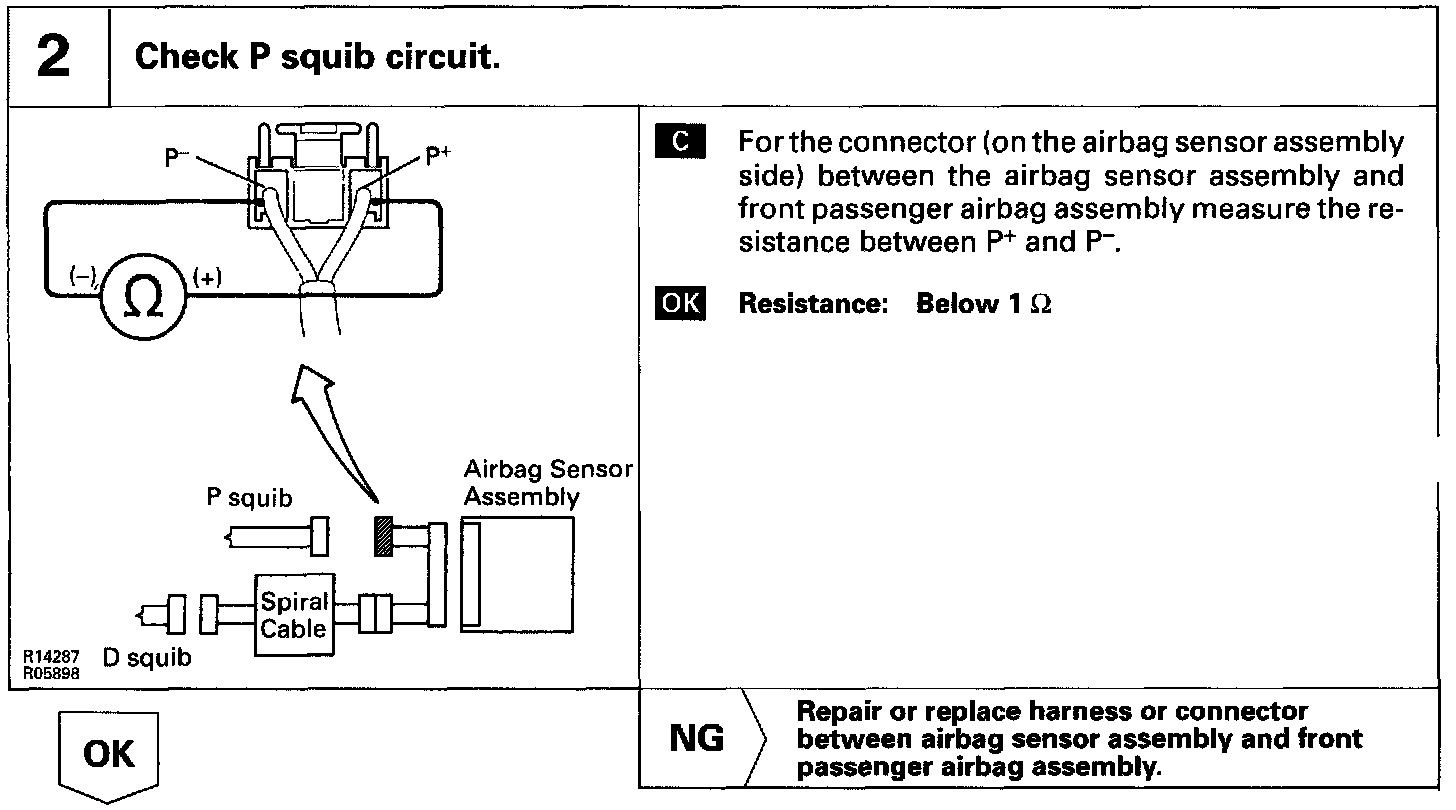

2. Check P Squib circuit.




3. Check Airbag Sensor Assembly.




4. Check P Squib.
