DTC 52

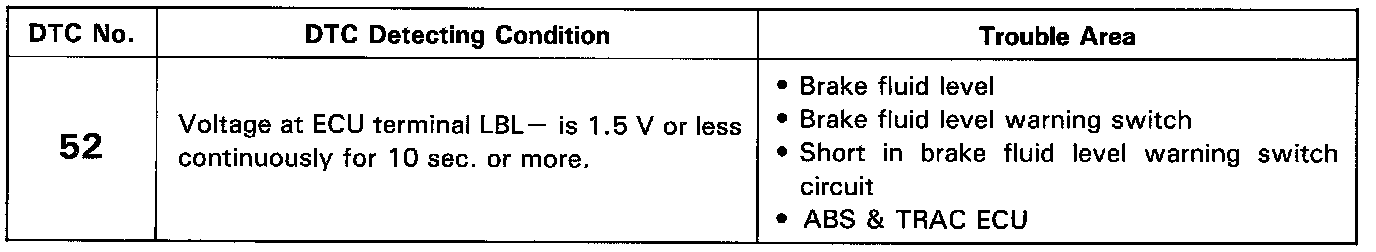

Code 52: Brake Fluid Level Warning Switch Circuit, DTC Chart:

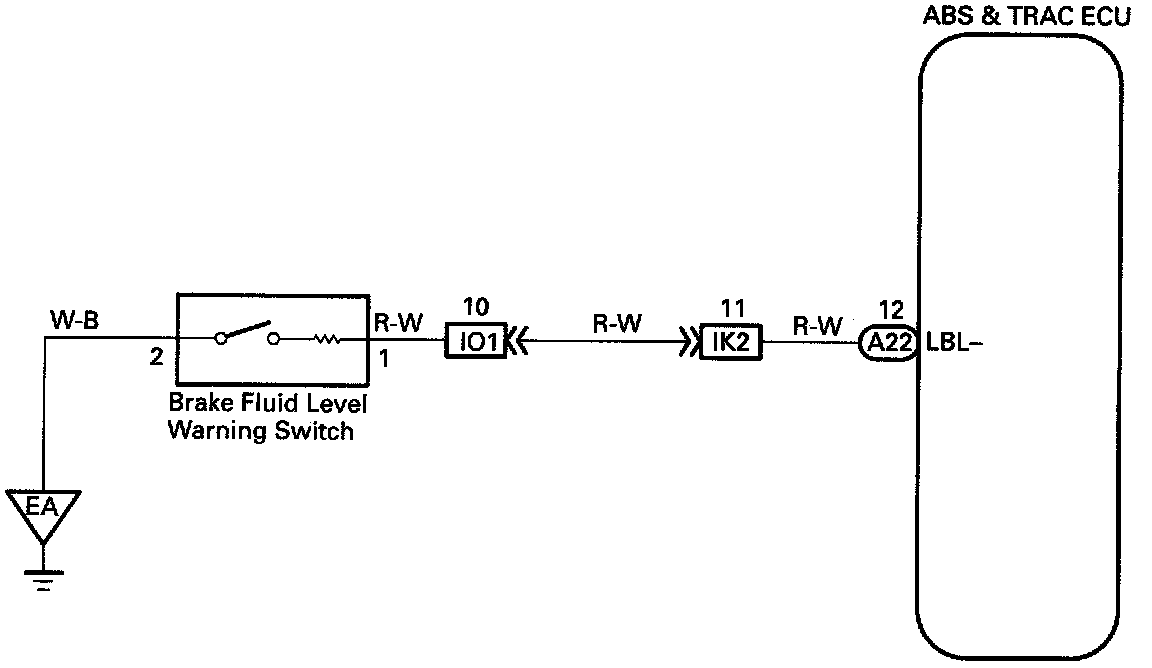

Brake Fluid Level Warning Switch Circuit, Wiring Diagram:

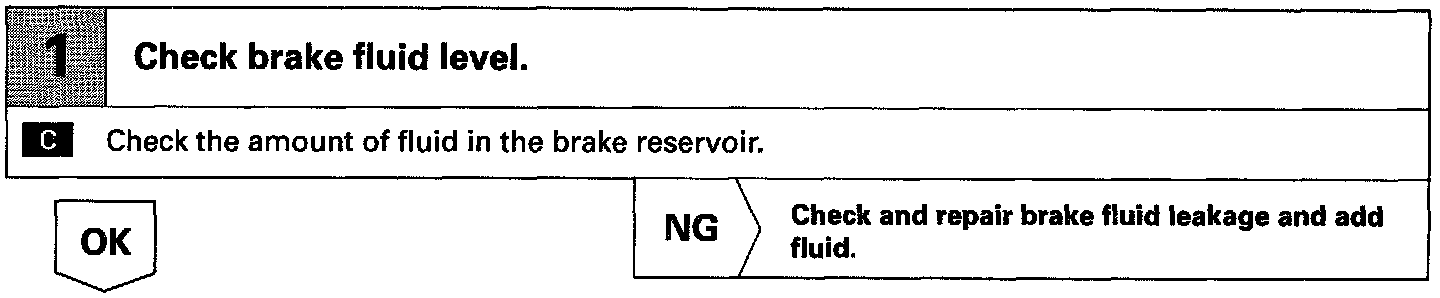

Brake Fluid Level Warning Switch Circuit, Inspection Procedure Part 1 Of 2:

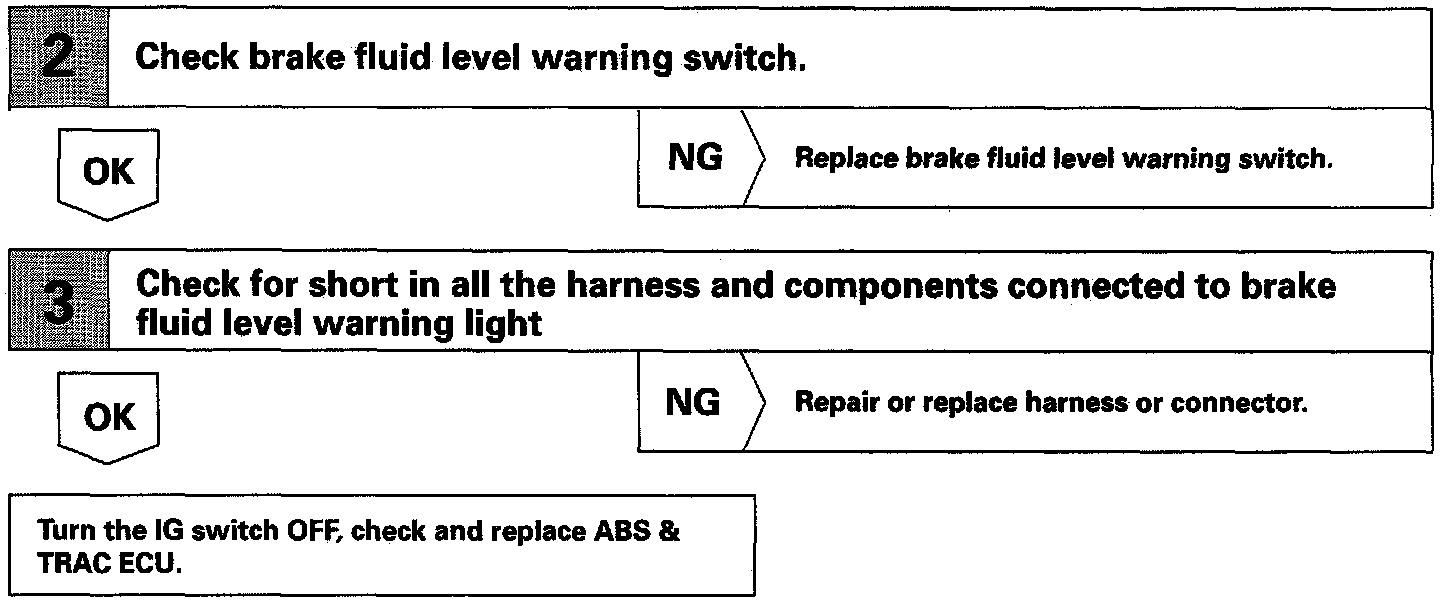

Brake Fluid Level Warning Switch Circuit, Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
The Brake Fluid Level Warning Switch sends the appropriate signal to the ECU when the brake fluid level drops.

NOTE: Pull the Parking Brake Lever also turns on the Brake Warning Light but does not diagnose DTC No. 52.
