DTC 44

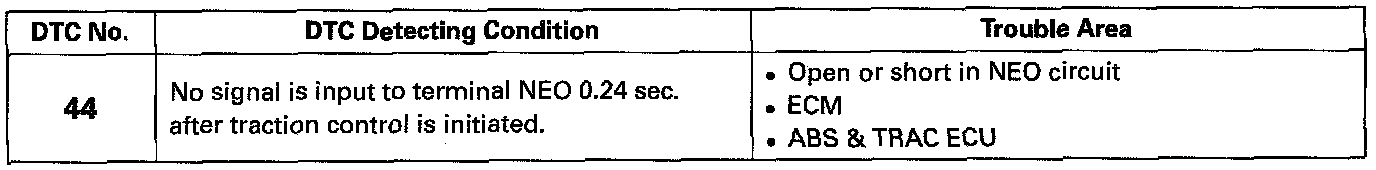

Code 44: NE Signal Circuit, DTC Chart:

NE Signal Circuit, Wiring Diagram:

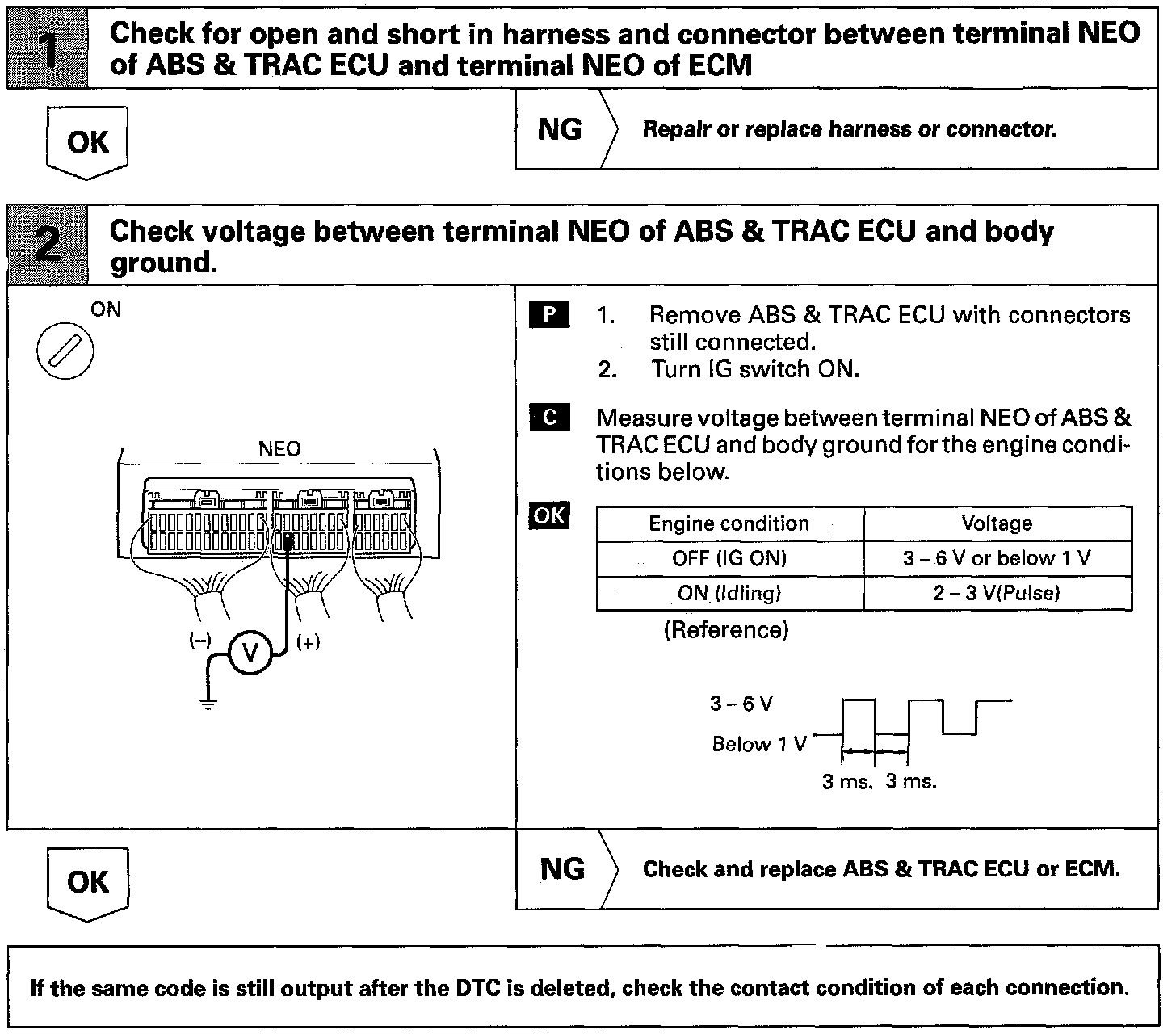

NE Signal Circuit, Inspection Procedure:

CIRCUIT DESCRIPTION

The ABS & TRAC ECU receives engine speed signals (NE signals) from the ECM.
