DTC 24

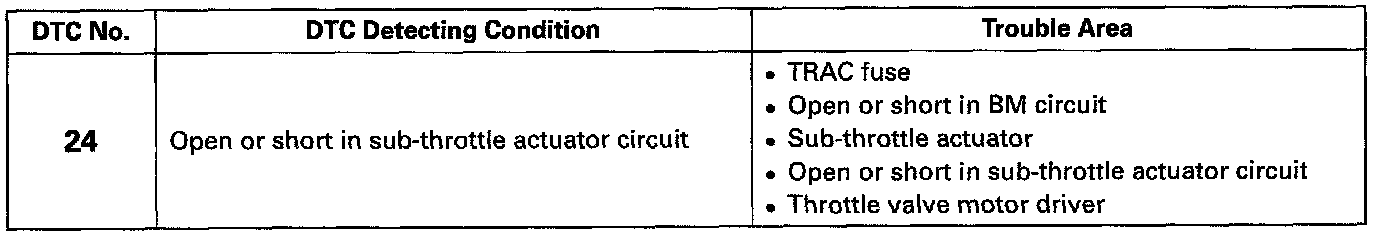

Code 24: TRAC Sub-Throttle Actuator Circuit, DTC Chart:

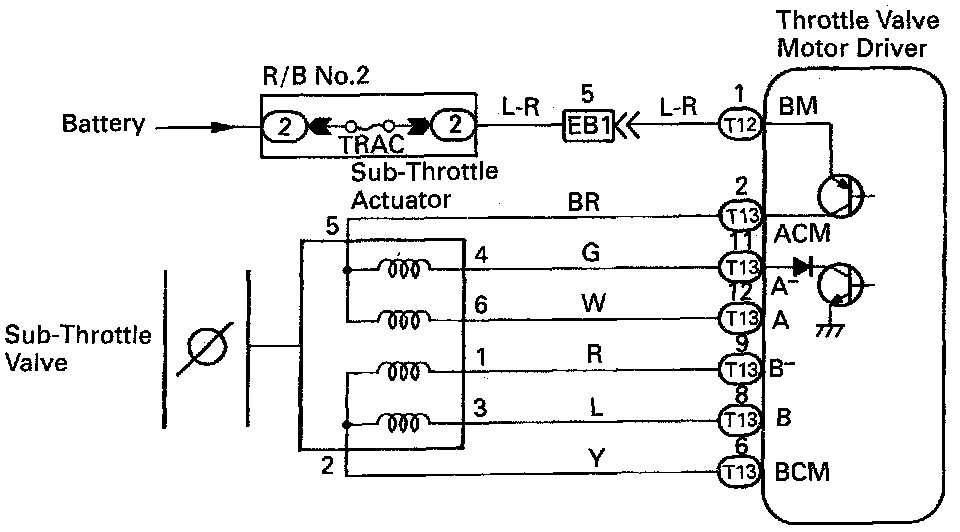

TRAC Sub-Throttle Actuator Circuit, Wiring Diagram:

TRAC Sub-Throttle Actuator Circuit, Inspection Procedure Part 1 Of 2:

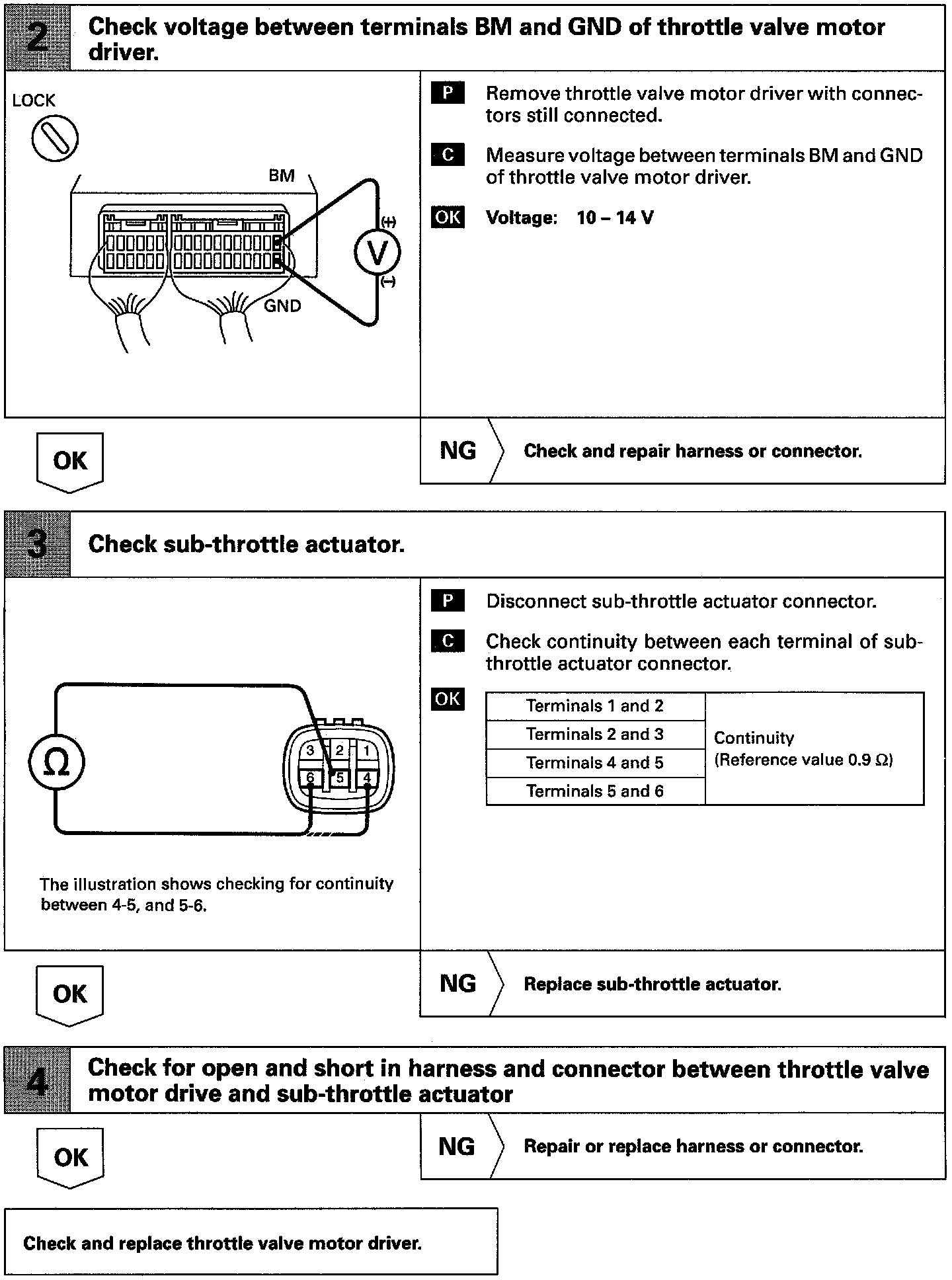

TRAC Sub-Throttle Actuator Circuit, Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
The Sub-Throttle actuator operates in accordance with signals from the ECU, controlling the opening and closing the Sub-Throttle Valve.
