DTC 49

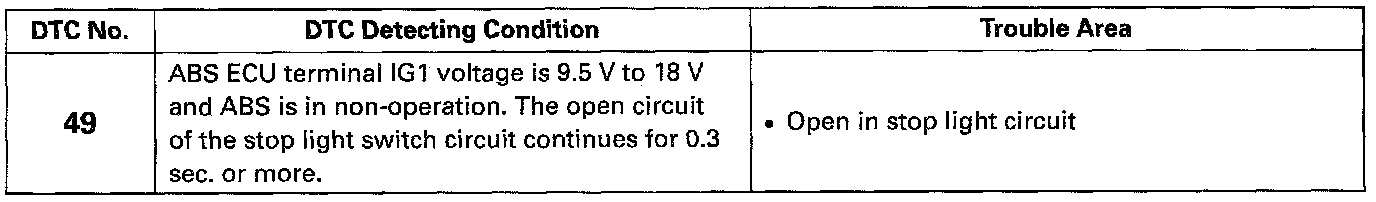

Code 49: Stop Light Switch Circuit DTC Chart:

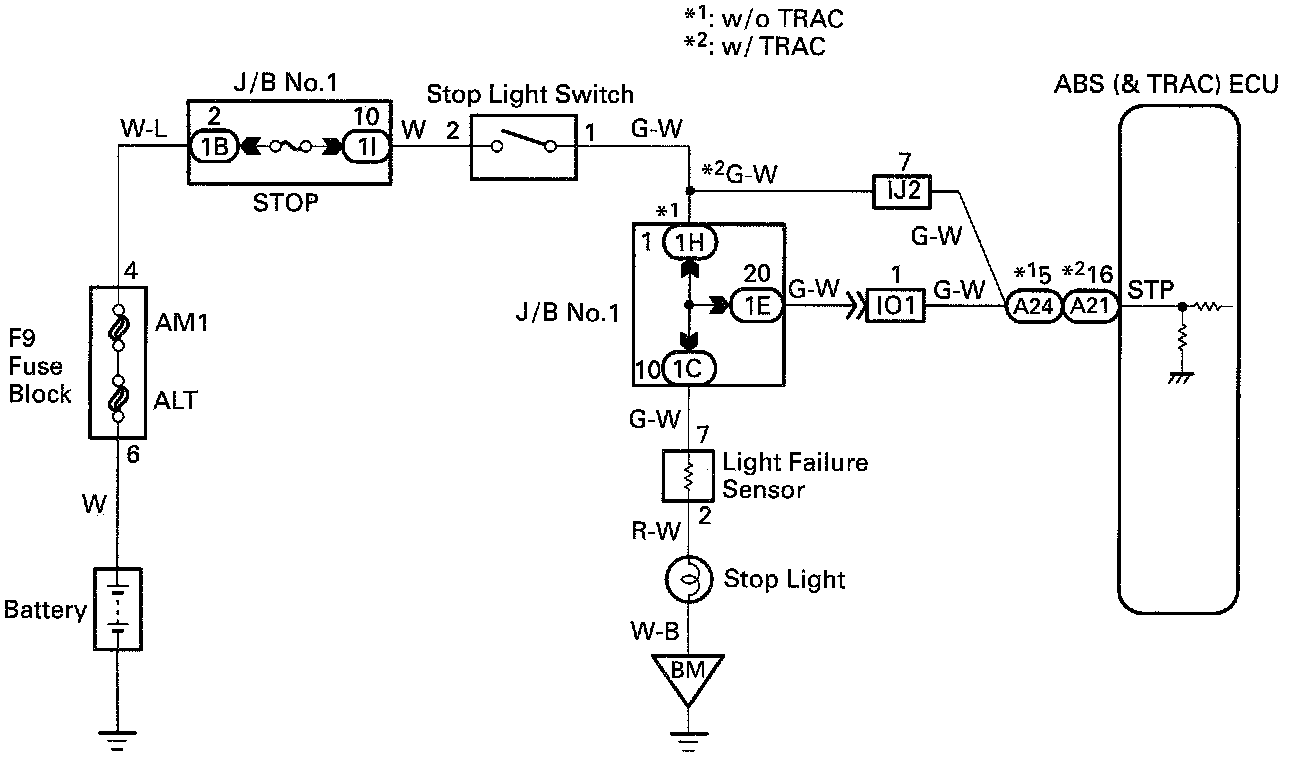

Stop Light Switch Circuit Wiring Diagram:

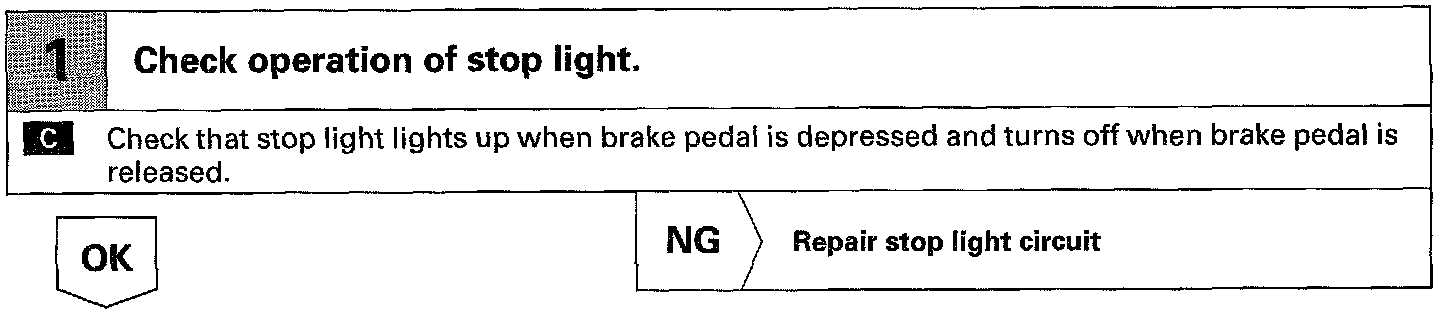

Stop Light Switch Circuit Inspection Procedure Part 1 Of 2:

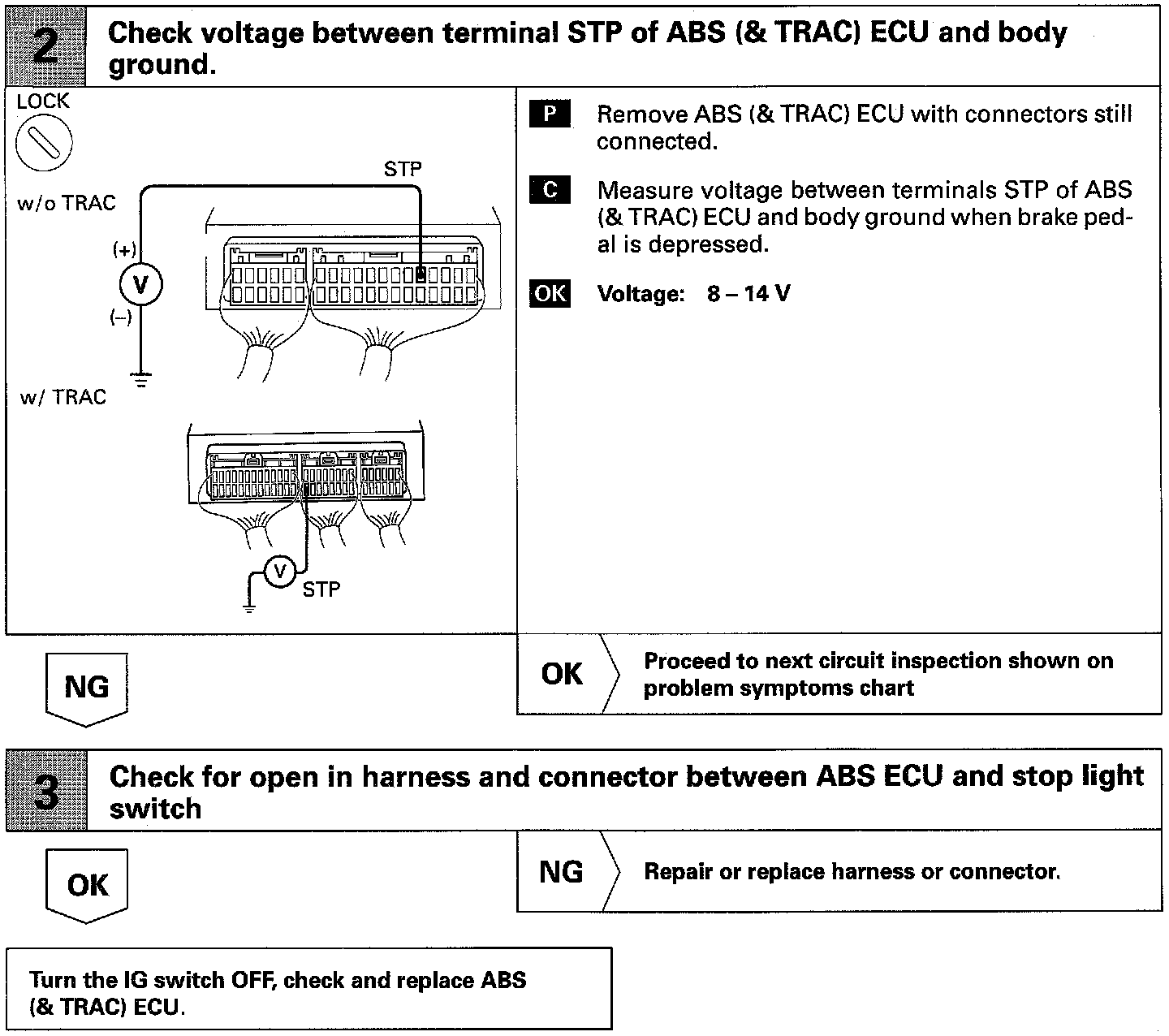

Stop Light Switch Circuit Inspection Procedure 2 Of 2:

CIRCUIT DESCRIPTION
The Stop Light Switch detects whether the Brake Pedal is depressed or released, and transmits a signal to the ECU.
