DTC 12

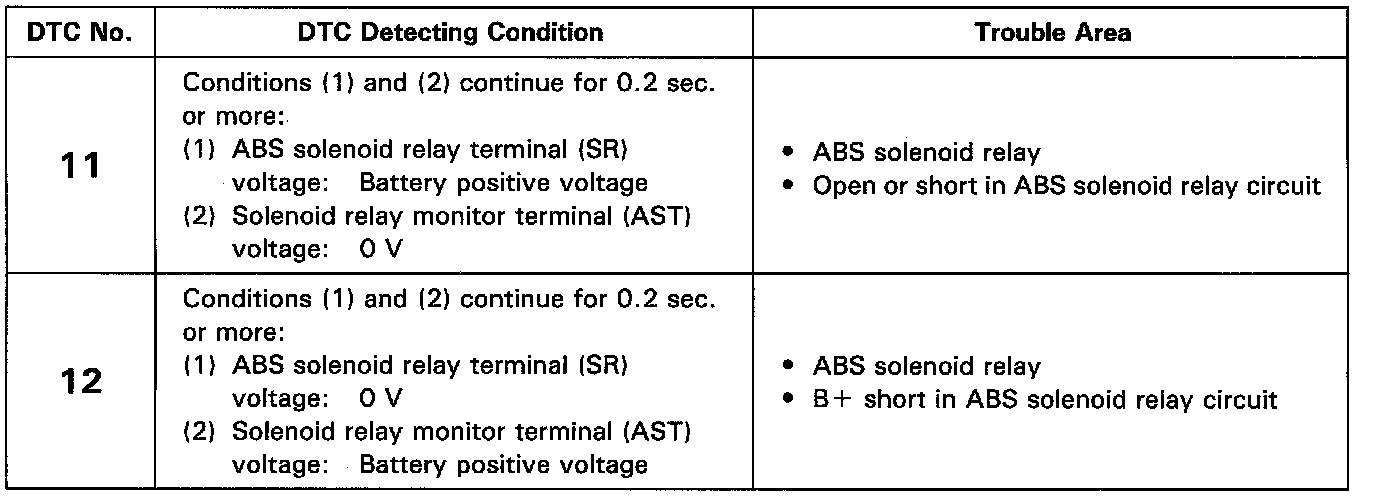

Codes 11 & 12: ABS Solenoid Relay Circuit (DTC Chart):

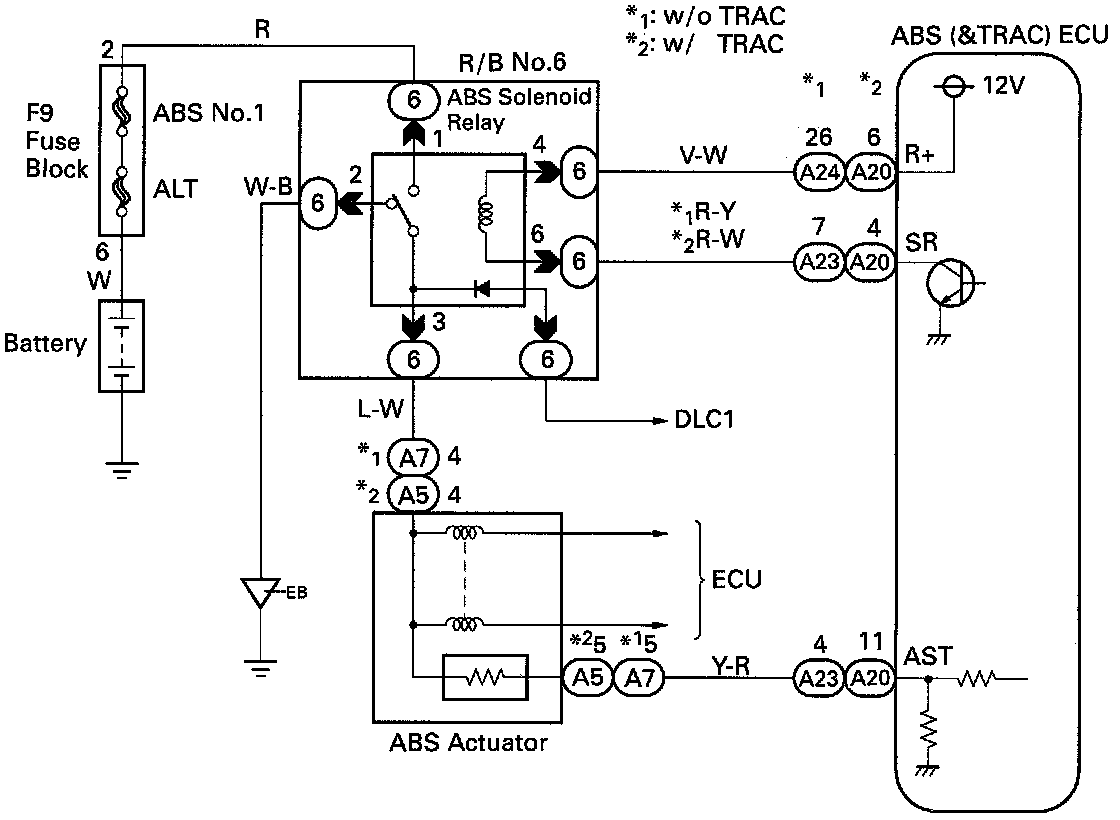

ABS Solenoid Relay Circuit Wiring Diagram:

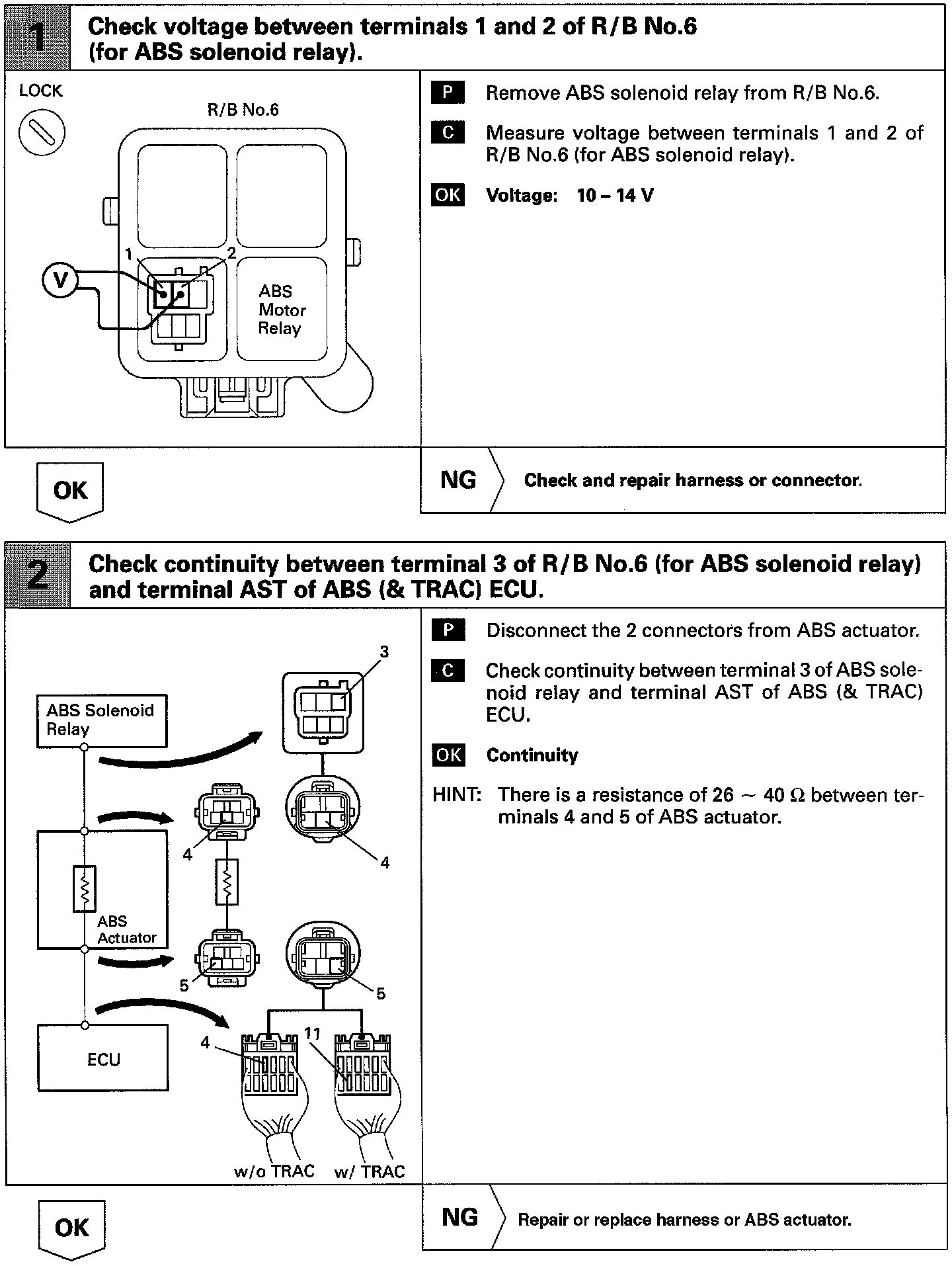

ABS Solenoid Relay Circuit Inspection Procedure Part 1 Of 2:

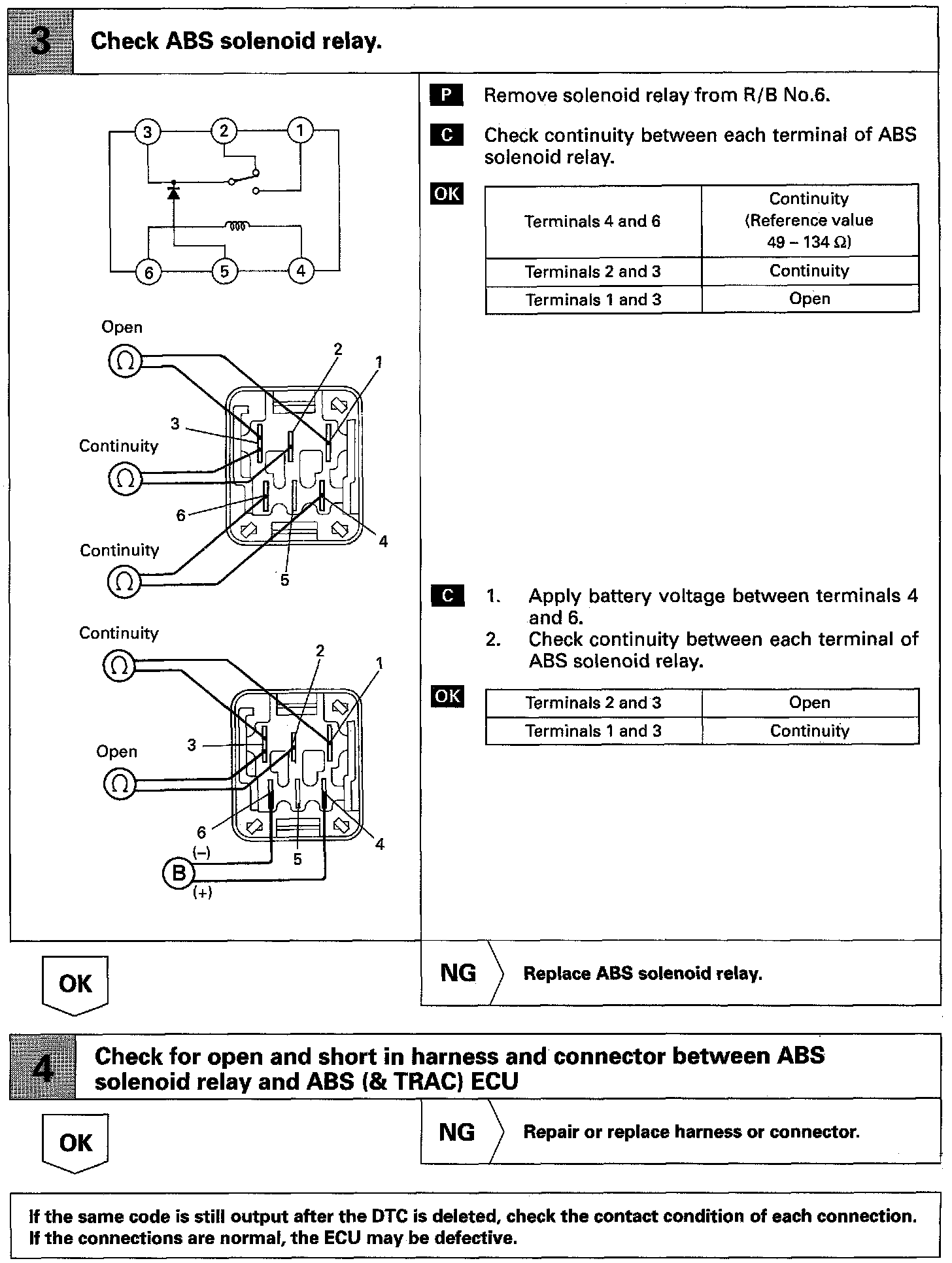

ABS Solenoid Relay Circuit Inspection Procedure Part 2 Of 2:

CIRCUIT DESCRIPTION
This relay supplies power to each ABS Solenoid. After the Ignition Switch is turned ON, if the initial check is OK, the relay goes on.

FAIL SAFE FUNCTION
If trouble in the ABS solenoid relay circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS control.
