Windshield Washer Motor: Testing and Inspection

WASHER MOTOR INSPECTION





1. INSPECT MOTOR OPERATION

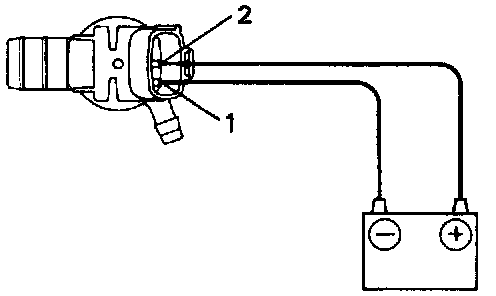

Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor operates.

NOTE: This test must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.








2. INSPECT MOTOR CIRCUIT

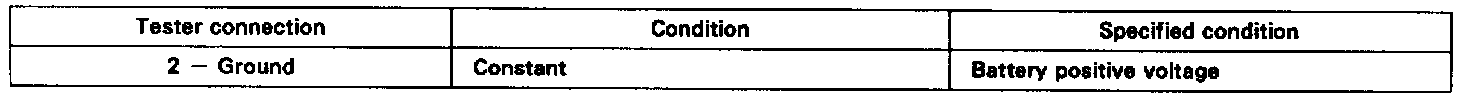

Disconnect the connector from the washer motor and inspect the connector on harness side, as shown.

If circuit is not as specified, inspect wire harness, power source or wiper switch.
