Headlamp Washer Motor: Testing and Inspection

HEADLIGHT CLEANER MOTOR INSPECTION








1. INSPECT MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor operates.

NOTE: This tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.

If operation is not as specified, replace the motor.





2. INSPECT MOTOR CIRCUIT

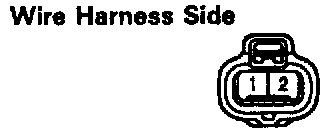

Disconnect the connector from the cleaner motor and inspect the connector on harness side, as shown.
If circuit is not as specified, inspect the circuits connected to other parts.
