Companion Flange Dust Deflector

DUST DEFLECTOR AND DUST COVER REPLACEMENT
1. Replace companion flange dust deflector.
a. Using SST 09950 - 00020, 09950 - 60010 (09951 - 00420) and a press, remove the dust deflector.

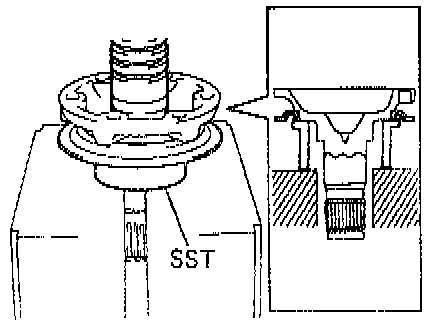

Fig. 30 Installing Companion Flange Dust Deflector:

b. Using SST 09316 - 60011 (09316 - 00011) and a press, install a new dust deflector.





2. Replace side gear shaft dust cover.
a. Using SST 09950 - 00020 and a press, remove the dust cover.





b. Using SST 09316 - 20011 and a press, install a new dust cover.





HINT: If the dust cover does not fit tightly against the flange of the side gear shaft, use a screwdriver to drive it down tight.

AVAILABLE SNAP RINGS
Ring Gear Side
No./Thickness
00 4.00 mm (0.1575 inch)
02 4.02 mm (0.1583 inch)
04 4.04 mm (0.1591 inch)
06 4.06 mm (0.1598 inch)
08 4.08 mm (0.1606 inch)
10 4.10 mm (0.1614 inch)
12 4.12 mm (0.1622 inch)
14 4.14 mm (O.l630 inch)
16 4.16 mm (0.1638 inch)
18 4.18 mm (0.1646 inch)
20 4.20 mm (0.1654 inch)
22 4.22 mm (0.1661 inch)
24 4.24 mm (0.1669 inch)
26 4.26 mm (0.1677 inch)
28 4.28 mm (0.1685 inch)
30 4.30 mm (0.1693 inch)
32 4.32 mm (0.1701 inch)
34 4.34 mm (0.1709 inch)
36 4.36 mm (0.1717 inch)
38 4.38 mm (0.1724 inch)
40 4.40 mm (0.1732 inch)
42 4.42 mm (0.1740 inch)
66 3.66 mm (0.1441 inch)
68 3.68 mm (0.1449 inch)
70 3.70 mm (0.1457 inch)
72 3.72 mm (0.1465 inch)
74 3.74 mm (0.1472 inch)
76 3.76 mm (0.1480 inch)
78 3.78 mm (0.1488 inch)
80 3.80 mm (0.1496 inch)
82 3.82 mm (0.1504 inch)
84 3.84 mm (0.1512 inch)
86 3.86 mm (0.1520 inch)
88 3.88 mm (0.1528 inch)
90 3.90 mm (0.1535 inch)
92 3.92 mm (0.1543 inch)
94 3.94 mm (0.1551 inch)
96 3.96 mm (0.1559 inch)
98 3.98 mm (0.1567 inch)
