Home >> Lexus >> 1997 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Pattern Select Switch Circuit

Pattern Select Switch Circuit

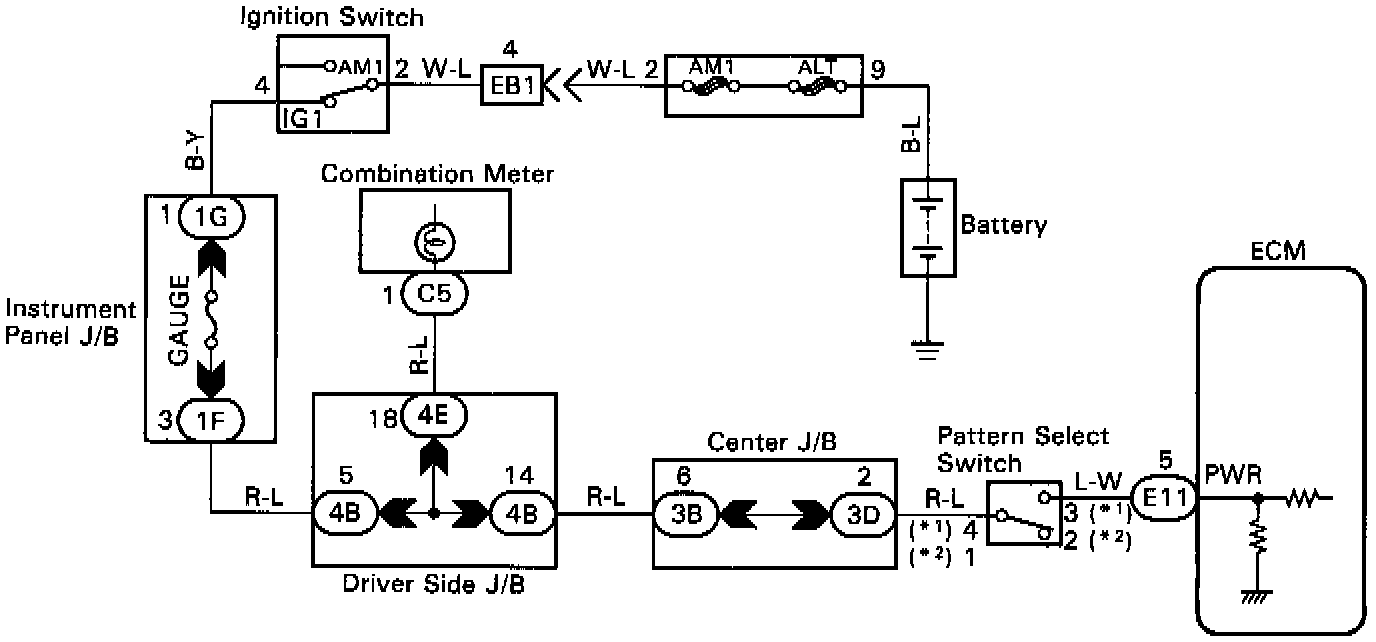

WIRING DIAGRAM

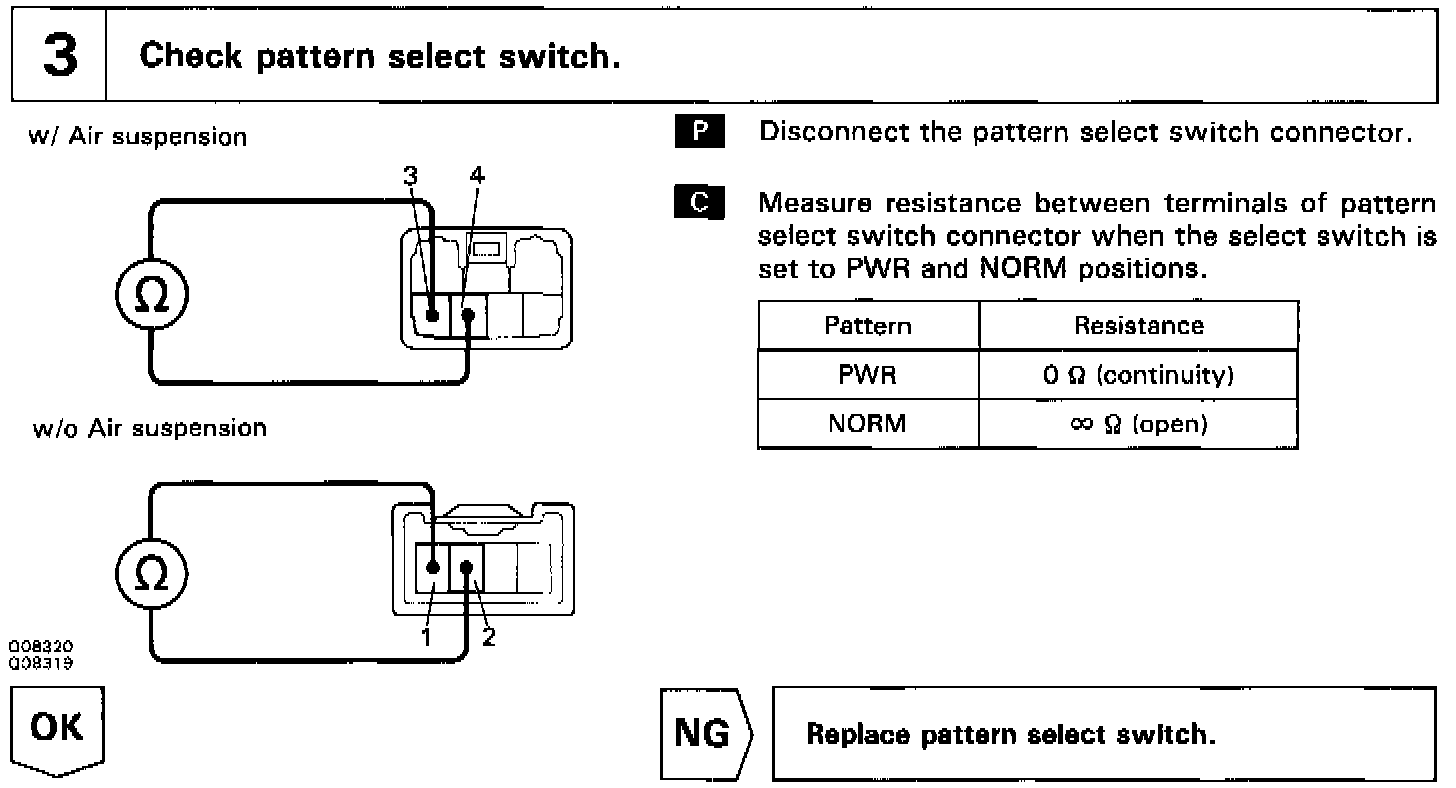

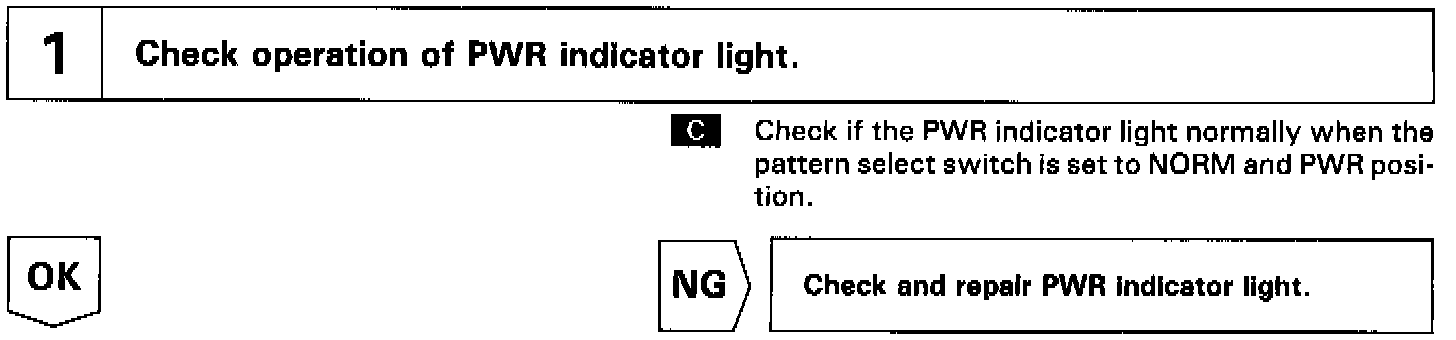

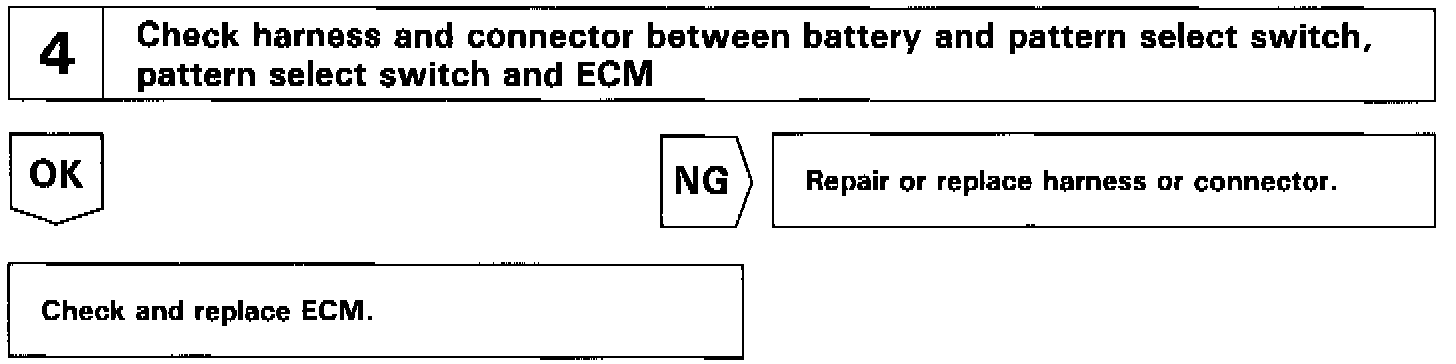

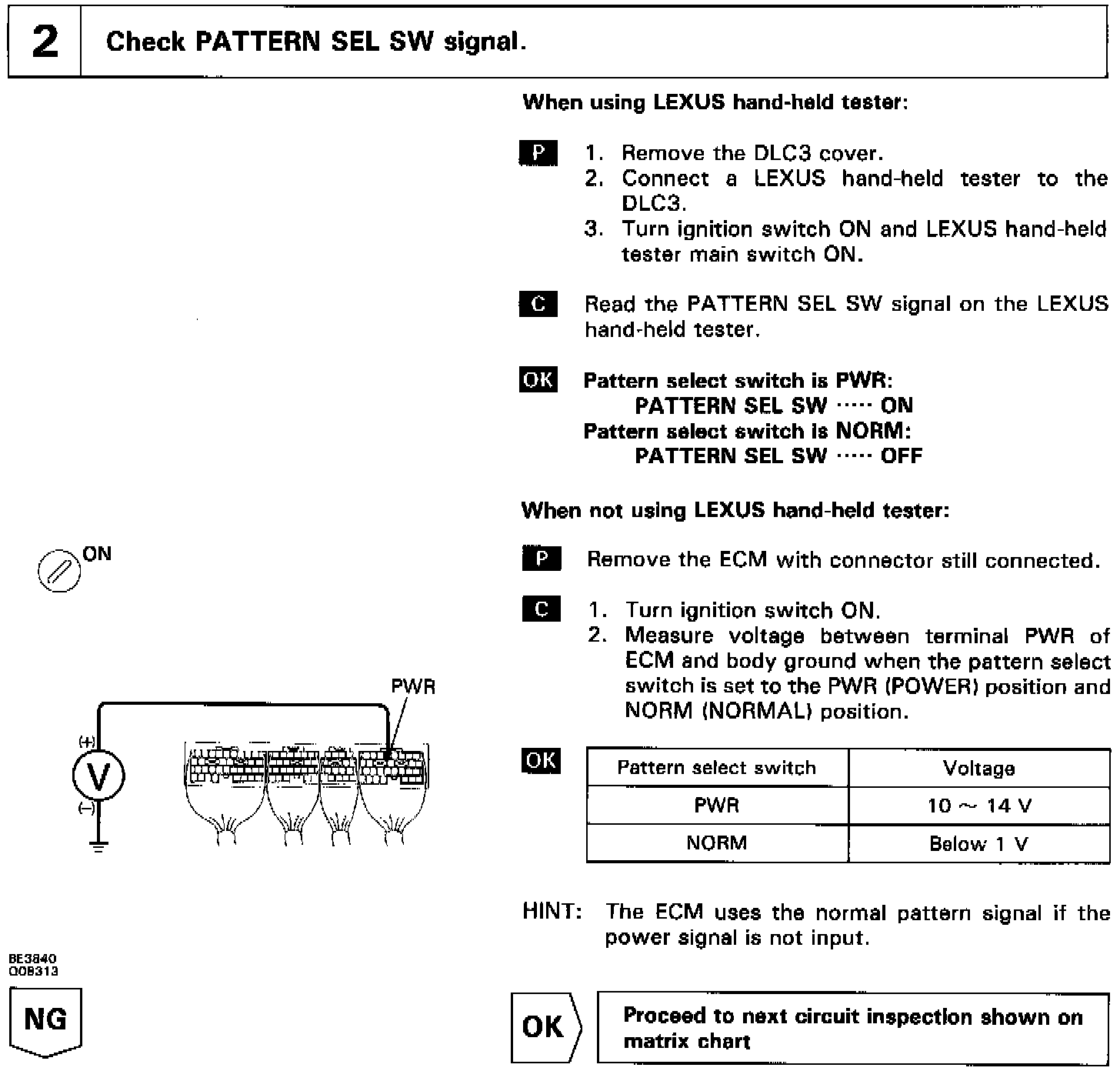

INSPECTION PROCEDURE
