Home >> Lexus >> 1997 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Tools and Equipment >> Front

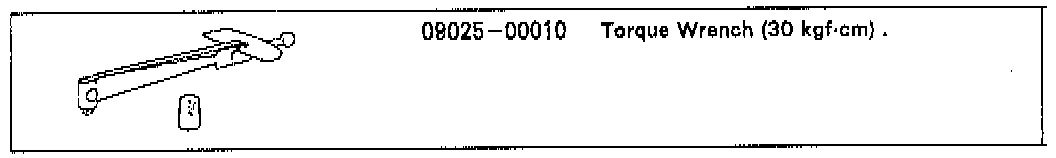

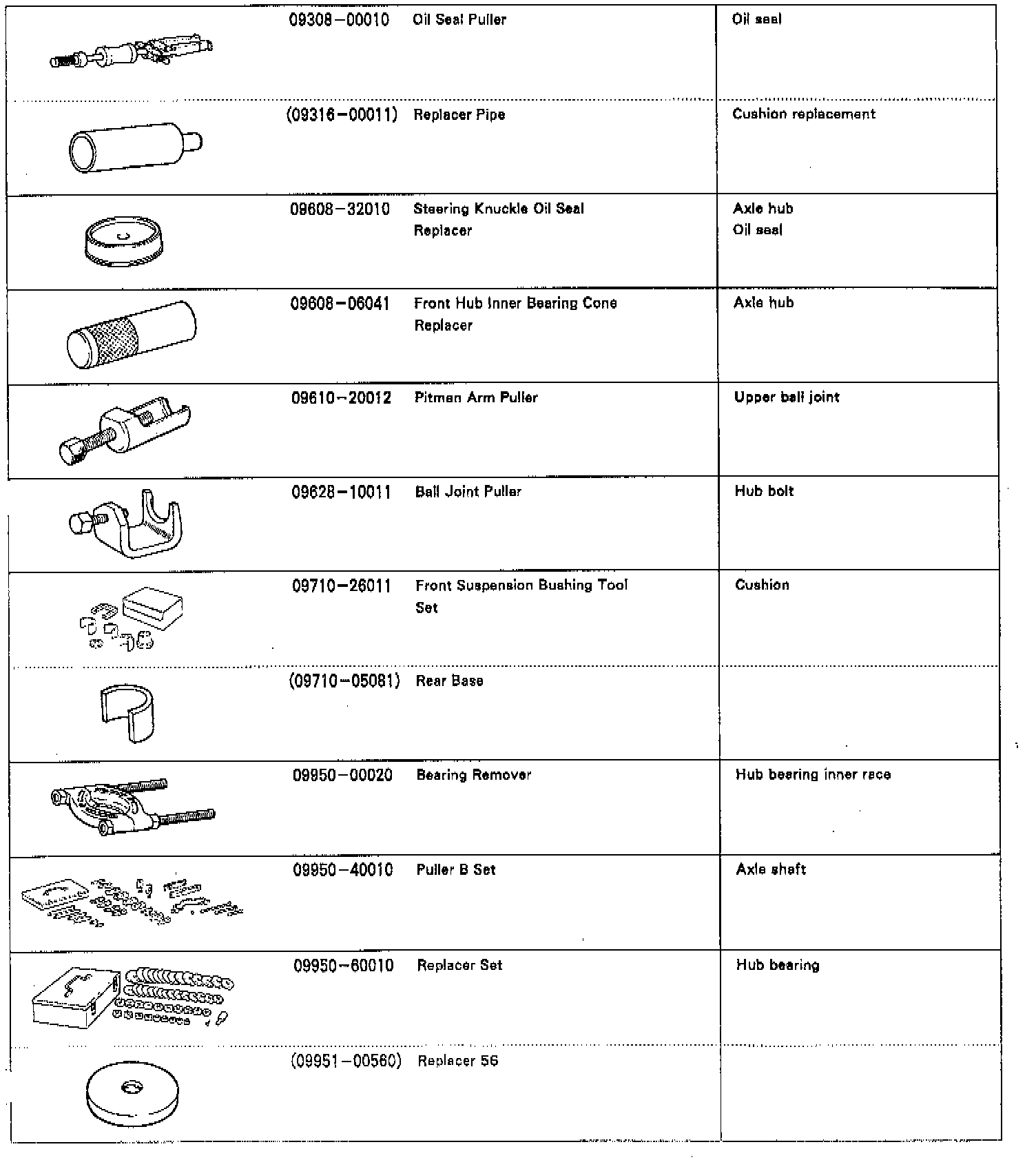

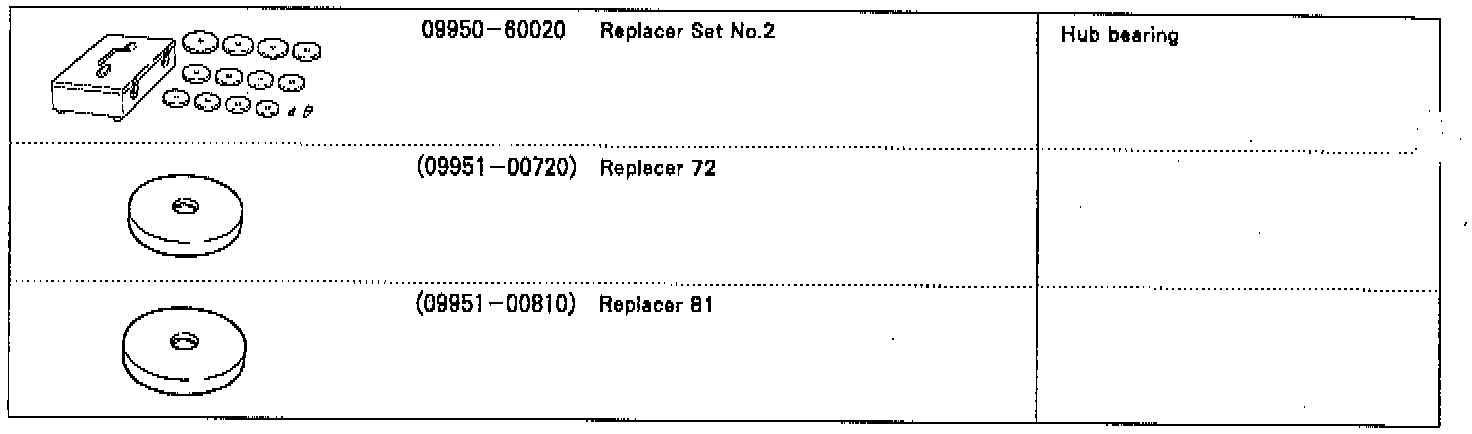

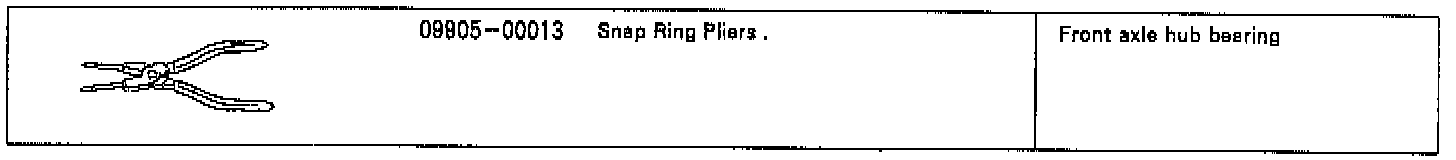

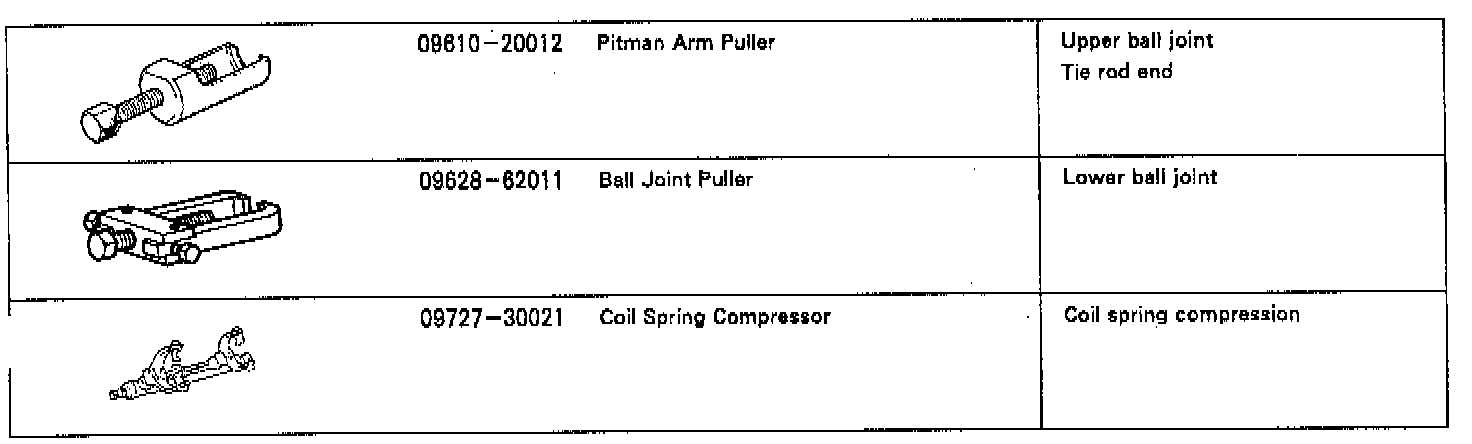

Front

Part 1 Of 3:



Part 2 Of 3:



Part 3 Of 3:



Part 1 Of 2:



Part 2 Of 2:
