Symptom Related Diagnostic Procedures

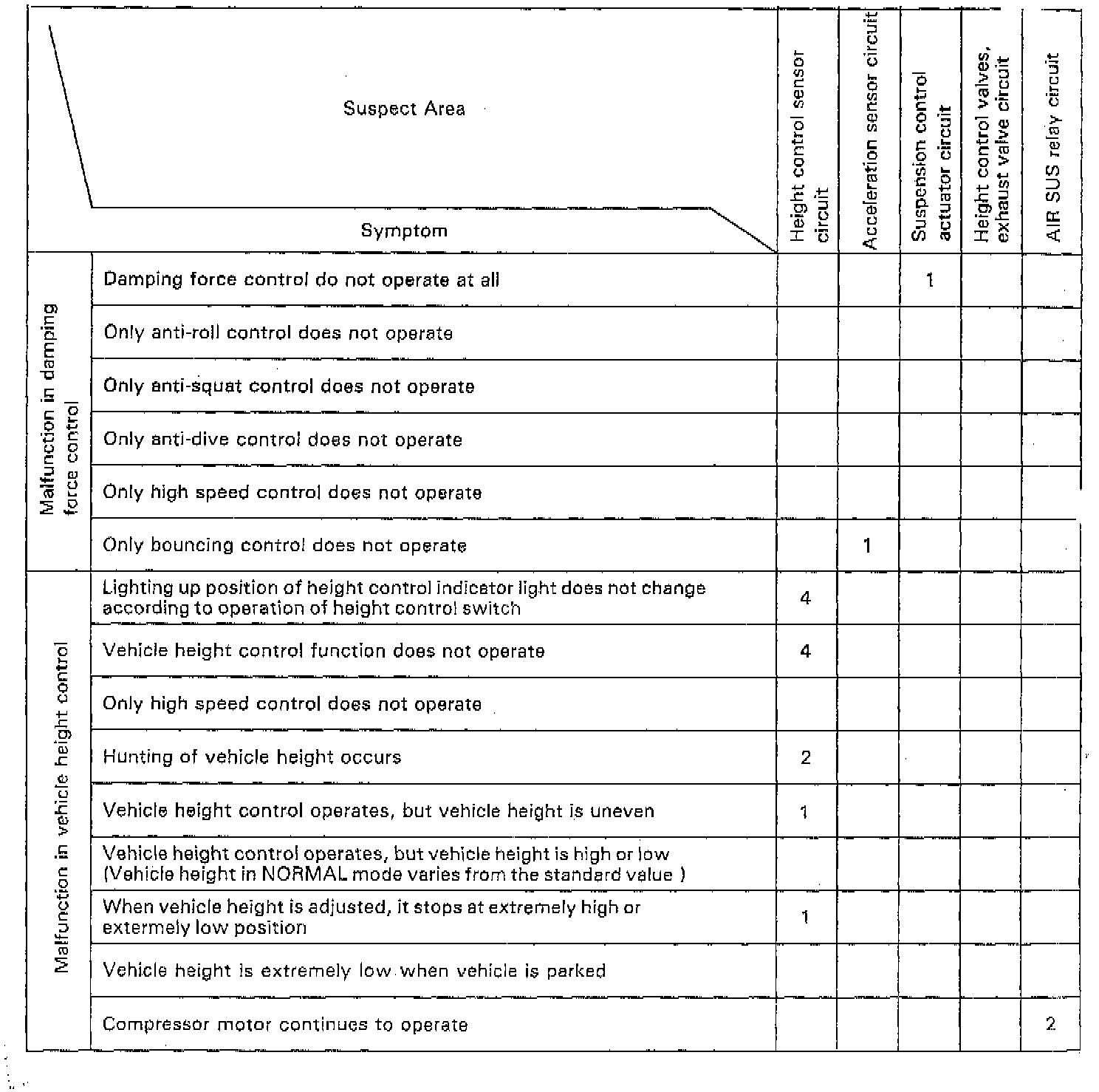

If a normal code is displayed during the DTC check, but the trouble code still occurs (reappears), perform troubleshooting for each symptom, checking the circuits for each in the order given in the table.

NOTE: If the instruction "Proceed to the next circuit inspection . . ." is given in the flow charts, proceed to the circuit with the next highest number in the table. If the trouble still appears, even though there are no abnormalities in any other circuit, then check and replace the suspension ECU as the last step.
