Vehicle Height Control Prohibition/Actuator Check Mode

The vehicle height control prohibition and actuator check mode is activated as follows:

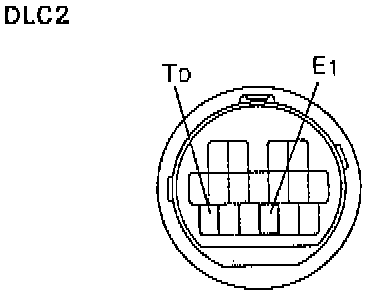

1. Using SST 09843 - 18020, connect between terminals Td and E1 of DLC 2.
2. Turn the ignition switch ON.

HINT:
^ As you enter the mode, switch the suspension control actuator to soft. for all 4 wheels.
^ While in the mode, the height control indicator light blinks at 1 second intervals.

NOTICE:
^ Before jacking up the vehicle when the engine has been run, always first put the vehicle into this mode.
^ If the vehicle height is particularly low when the vehicle is jacking down, return the vehicle height to the standard height either start the engine or using the height control connector.
