Lexus
>>
1997
>>
LS 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
TS Terminal Circuit
TS Terminal Circuit

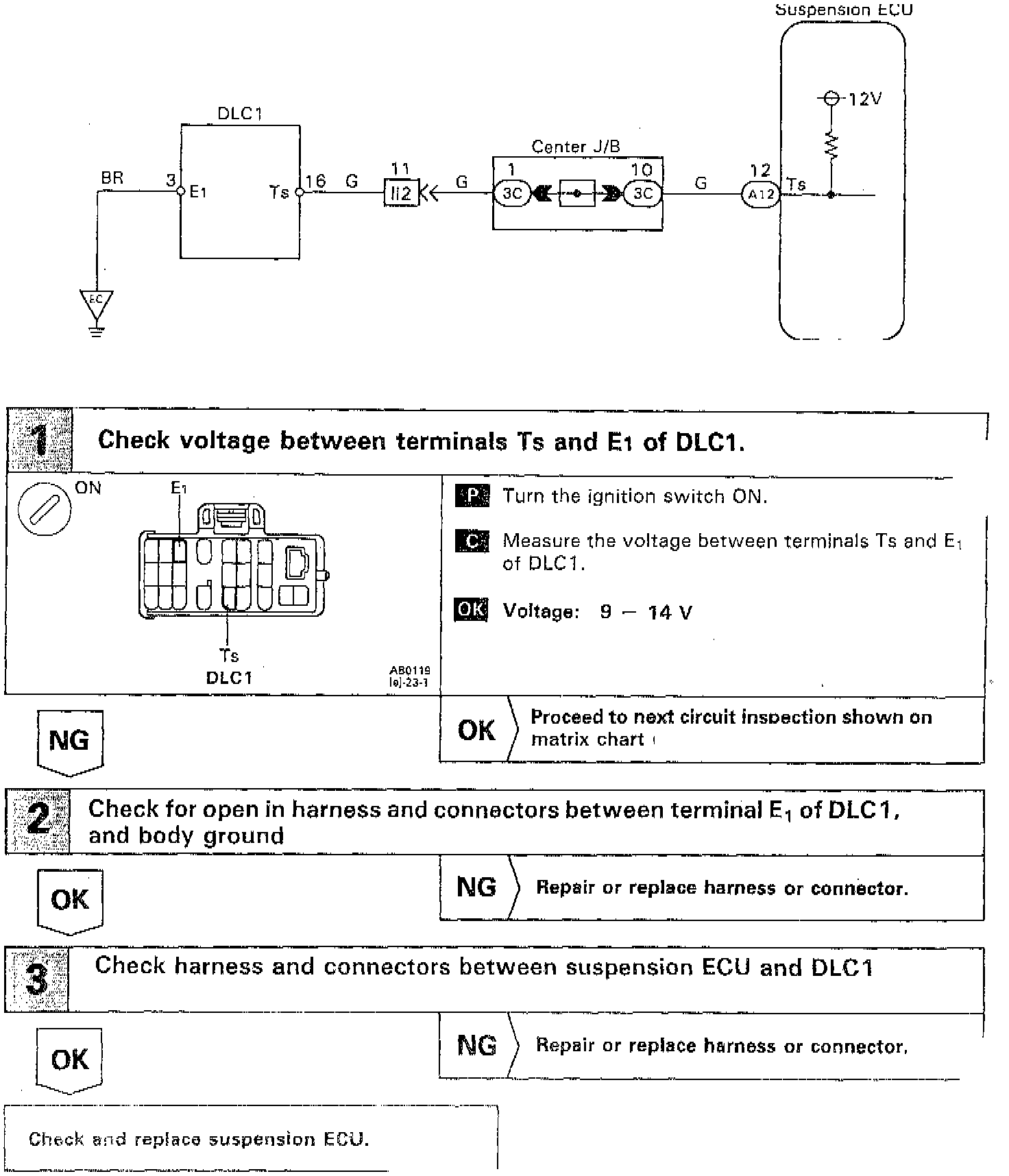

CIRCUIT DESCRIPTION:
By connecting terminals Ts and E1 of the DLC 1, an input signal check can be performed.
